Planet WGS3-2820 [276/528] Igmp global configuration

User’s Manual of WGS3-2820/WGS3-5220

276

4.7.2 IGMP

4.7.2.1 IGMP Global Configuration

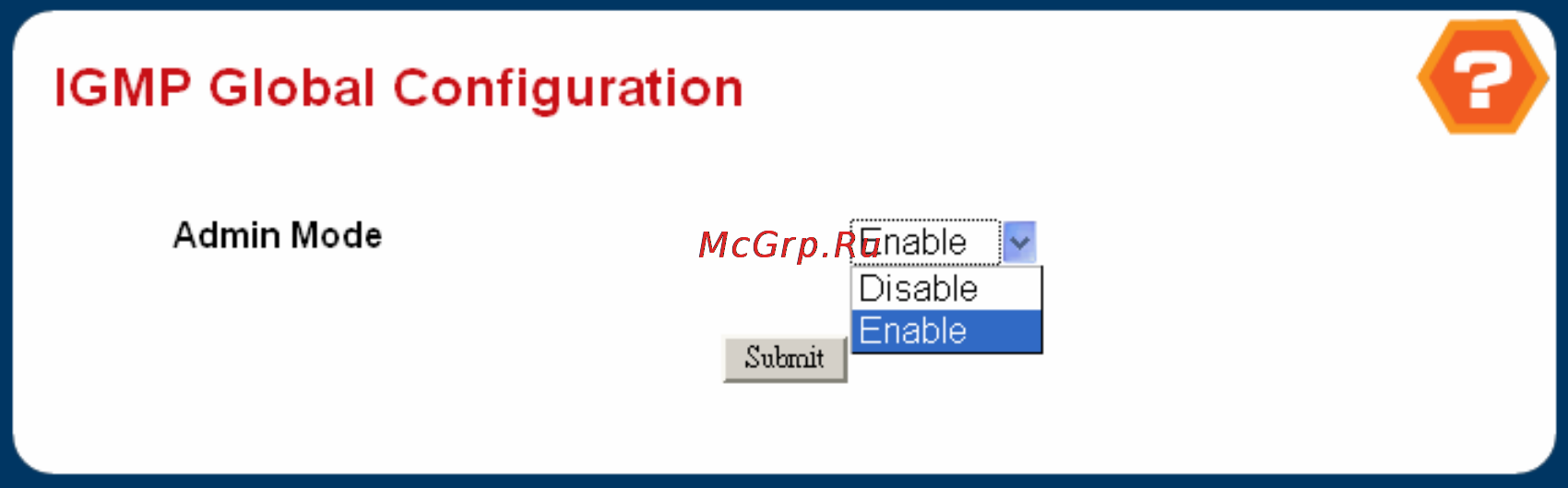

Figure 4-6-56 IGMP Global Configuation

Configurable Data

o Admin Mode - Select enable or disable from the pulldown menu to set the administrative status of IGMP in the

router to active or inactive. The default is disable.

Command Buttons

o Submit - Send the updated configuration to the router. Configuration changes take effect immediately. These

changes will not be retained across a power cycle unless a save is performed.
