User’s Manual of WGS3-2820/WGS3-5220
270
o Number Of Packets For Which Group Not Found - The number of multicast packets that were supposed to be
routed but for which no multicast route was found.
o Protocol - The multicast routing protocol presently activated on the router, if any.
o Table Entry Count - The number of multicast route entries currently present in the Multicast route table.
o Table Highest Entry Count - The highest number of multicast route entries that have been present in the Multicast
route table.
Command Buttons
o Submit - Send the updated configuration to the router. Configuration changes take effect immediately. These
changes will not be retained across a power cycle unless a save is performed.
4.7.1.2 Multicast Interface Configuration

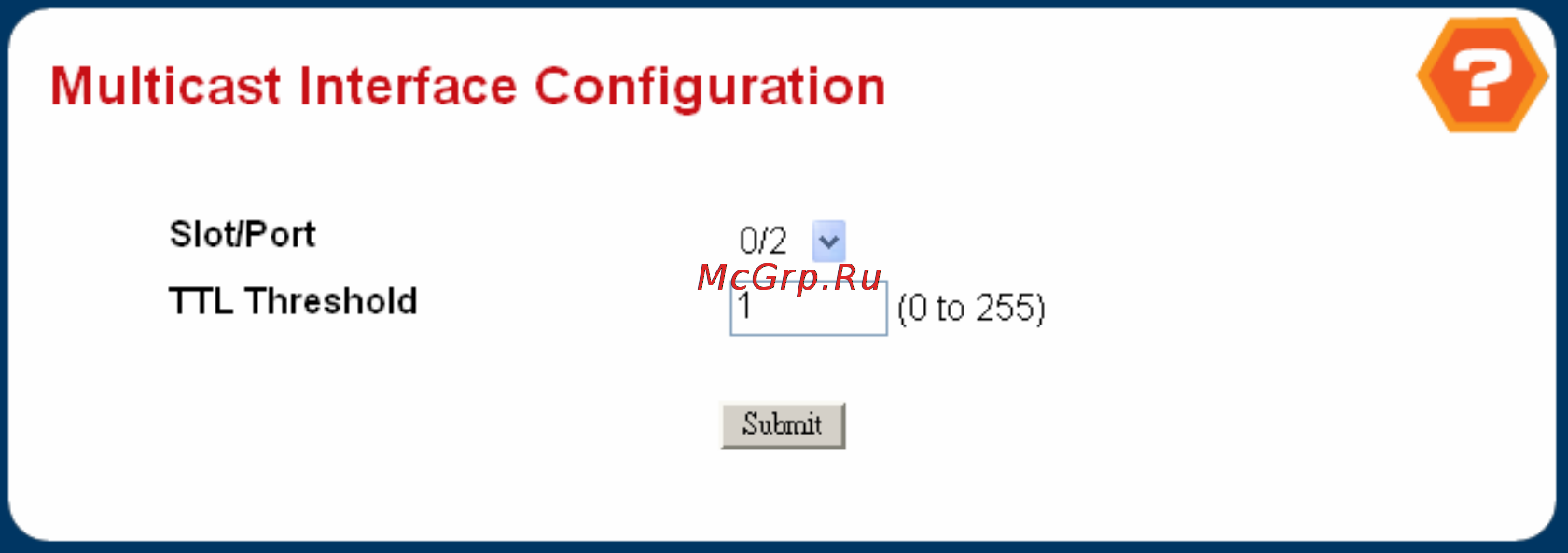

Figure 4-6-50 Multicast Interface Configuation
Selection Criteria
o Slot/Port - Select the routing interface you want to configure from the dropdown menu.
Configurable Data
o TTL Threshold - Enter the TTL threshold below which a multicast data packet will not be forwarded from the
selected interface. You should enter a number between 0 and 255. If you enter 0 all multicast packets for the
selected interface will be forwarded. You must configure at least one router interface before you will see this field.
Command Buttons
o Submit - Send the updated configuration to the router. Configuration changes take effect immediately. These
changes will not be retained across a power cycle unless a save is performed.
