User’s Manual of WGS3-2820/WGS3-5220
291
4.7.3.6 DVMRP Route Summary

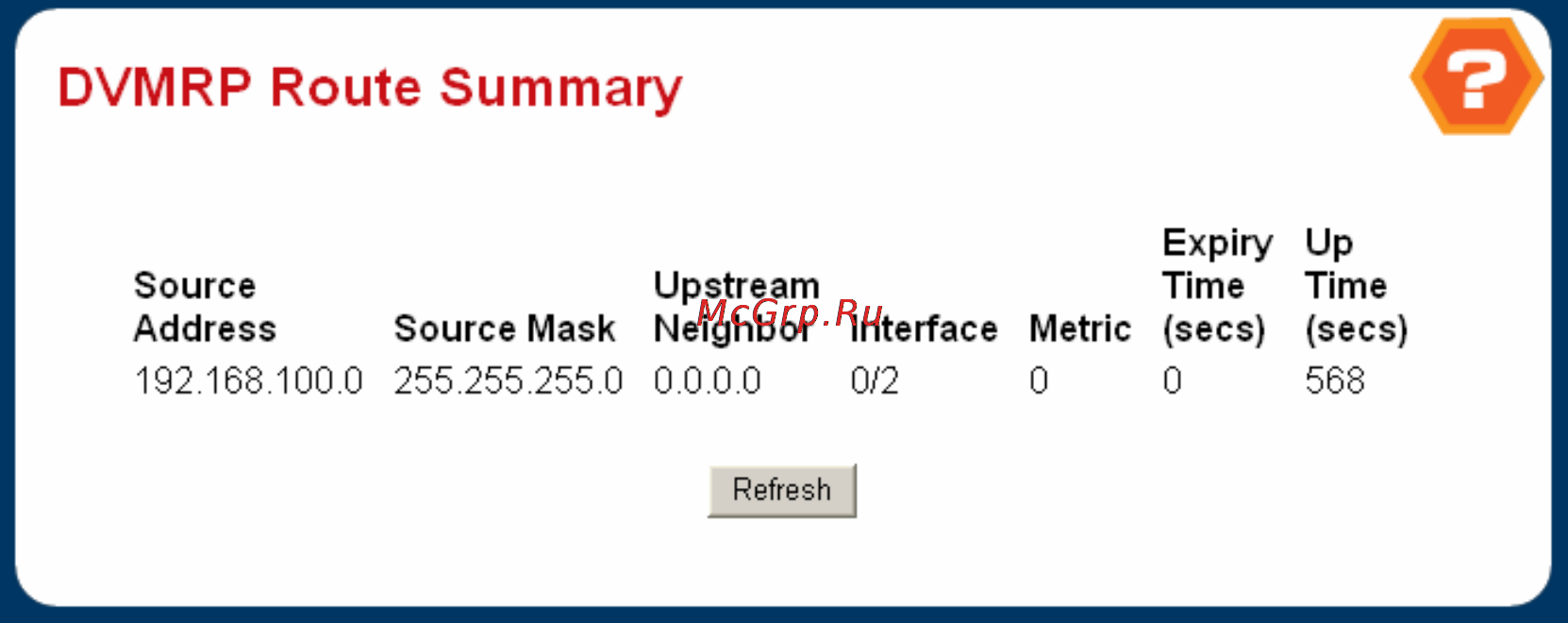

Figure 4-6-67 DVMRP Route Summary
Non-Configurable Data
o Source Address - The network address that is combined with the source mask to identify the sources for this entry.
o Source Mask - The subnet mask to be combined with the source address to identify the sources for this entry.
o Upstream Neighbor - The address of the upstream neighbor (e.g., RPF neighbor) from which IP datagrams from
these sources are received.
o Interface - The interface on which IP datagrams sent by these sources are received. A value of 0 typically means
the route is an aggregate for which no next-hop interface exists.
o Metric - The distance in hops to the source subnet.
o Expiry Time - The minimum amount of time remaining before this entry will be aged out.
o Up Time - The time since the route represented by this entry was learned by the router
