User’s Manual of WGS3-2820/WGS3-5220
273
o Submit - Send the updated configuration to the router. Configuration changes take effect immediately. These
changes will not be retained across a power cycle unless a save is performed.
o Delete - Delete the static entry with the selected Source IP address from the Mroute table.
4.7.1.5 Multicast Static Routes Summary

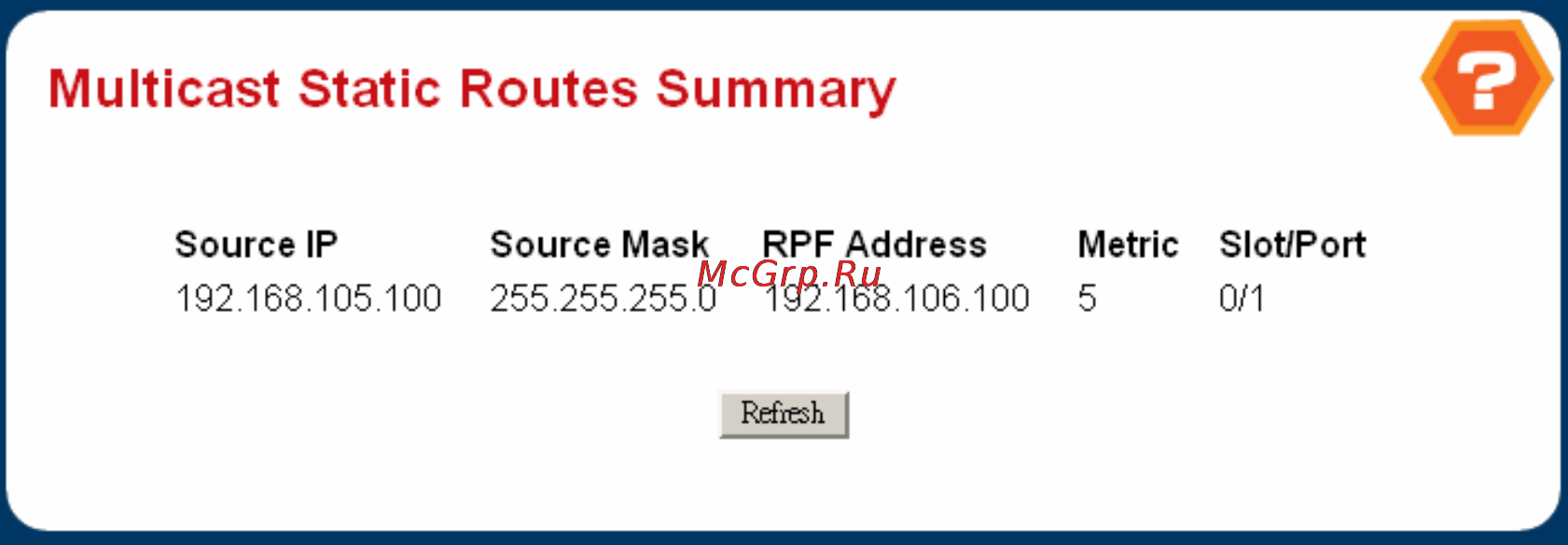

Figure 4-6-53 Milticast Static Routes Summary
Non-Configurable Data
o Source IP - The IP Address that identifies the multicast packet source for this route.
o Source Mask - The subnet mask applied to the Source IP address.
o RPF Neighbor - The IP address of the RPF neighbor.
o Metric - The link state cost of the path to the multicast source. The range is 0 - 255.
o Slot/Port - The number of the incoming interface whose IP address is used as RPF for the given source IP address.
Command Buttons
o Refresh - Refresh the data on the screen with the present state of the data in the router.
