Planet WGS3-2820 [287/528] Dvmrp configuration summary

User’s Manual of WGS3-2820/WGS3-5220

287

4.7.3.3 DVMRP Configuration Summary

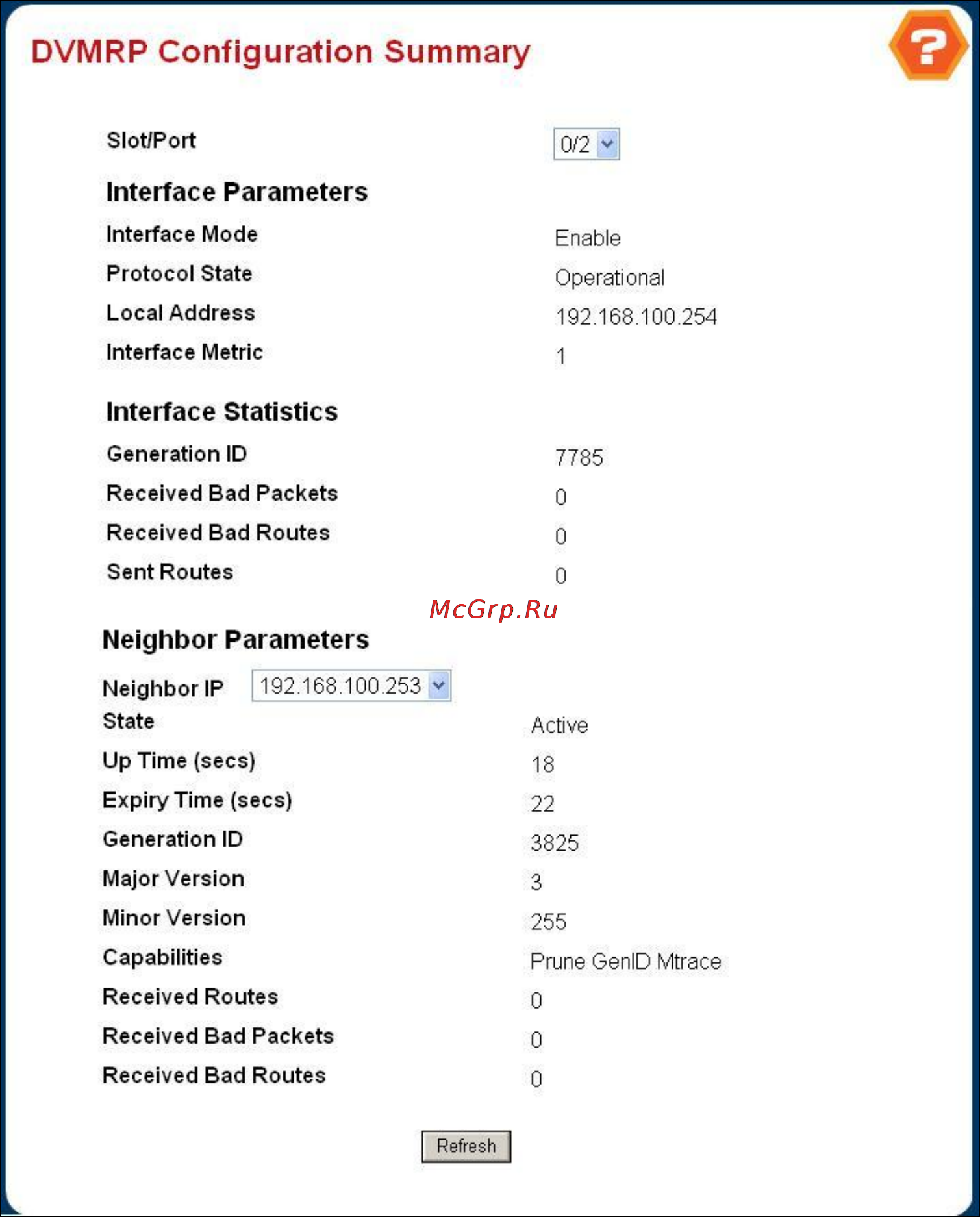

Figure 4-6-64 DVMRP Configuration Summary

Selection Criteria

o Slot/Port - Select the interface for which data is to be displayed. You must configure at least one router interface

before you can display data for a DVMRP interface. Otherwise you will see a message telling you that no router

interfaces are available, and the configuration summary screen will not be displayed.

Non-Configurable Data

o Interface Mode - The administrative mode of the selected DVMRP routing interface, either enable or disable.
