User’s Manual of WGS3-2820/WGS3-5220
300
4.7.5.1 PIM-DM Global Configuration

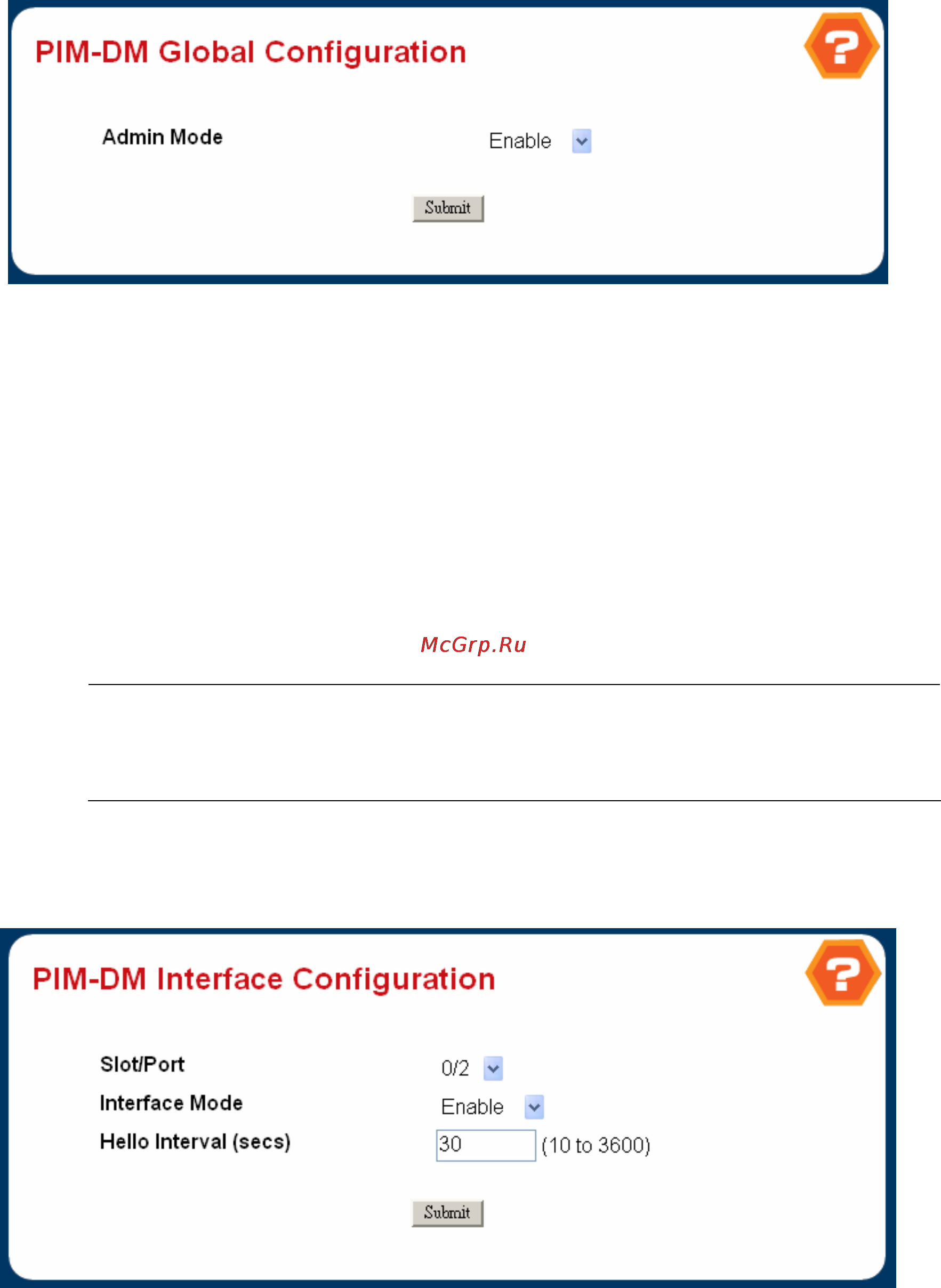

Figure 4-6-75 PIM-DM Global Configuration
Configurable Data
o Admin Mode - Select enable or disable from the pulldown menu to set the administrative status of PIM-DM in the
router. The default is disable.
Command Buttons
o Submit - Send the updated configuration to the router. Configuration changes take effect immediately. These
changes will not be retained across a power cycle unless a save is performed.
#Note:
Only one multicast routing protocol could be enabled at one time. That means, for example, once
the PIM-DM admin mode is enabled, the user is not able to enable the DVMRP.
4.7.5.2 Help for PIM-DM Interface Configuration
Figure 4-6-76 PIM-DM Interface Configuation
Selection Criteria
