User’s Manual of WGS3-2820/WGS3-5220

4.2.6.7 Double VLAN Tunneling Summary

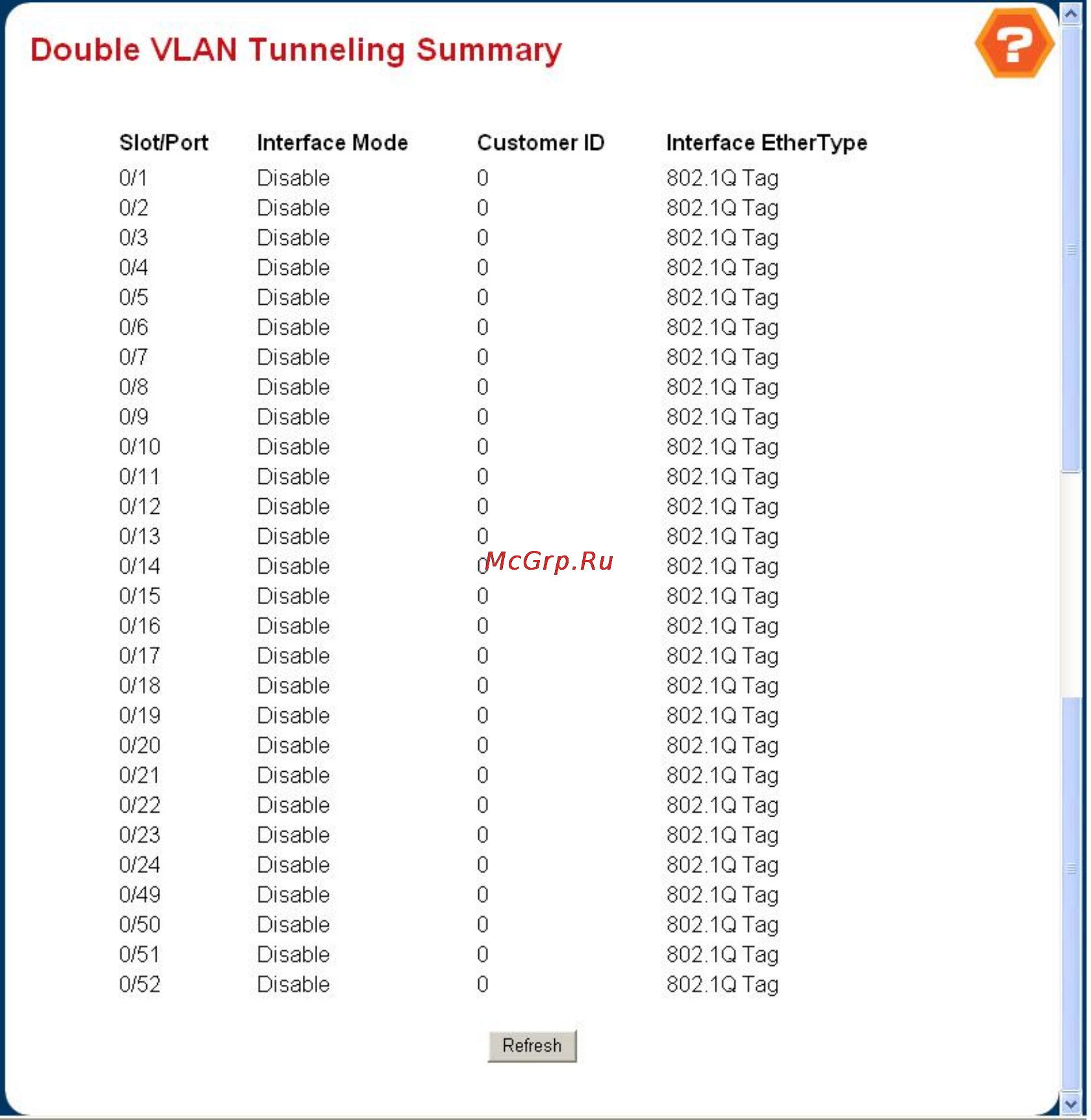

Figure 4-2-32 Double VLAN Tunneling Summary

Non-Configurable Data

。 Slot/Port - The physical interface for which data is being displayed.

。 Mode - This specifies the administrative mode via which Double VLAN Tagging can be enabled or disabled. The

default value for this is Disabled.

。 Customer ID - This is the 12 bit customer ID which will be used as the last 12 bits of the DVlan tag. The valid range

for a customer Id is (0 to 4095). The default customer Id is 0 .

。 EtherType - The two-byte hex EtherType to be used as the first 16 bits of the DVlan tag.

¾ 802.1Q Tag - Commonly used tag representing 0x8100

¾ vMAN Tag - Commonly used tag representing 0x88A8

¾ Custom Tag - Configure the EtherType in any range from (0 to 65535)

Command Buttons

。 Refresh - Refresh the data on the screen with the present state of the data in the switch.
