User’s Manual of WGS3-2820/WGS3-5220
279
4.7.2.3 IGMP Interface Configuration Summary

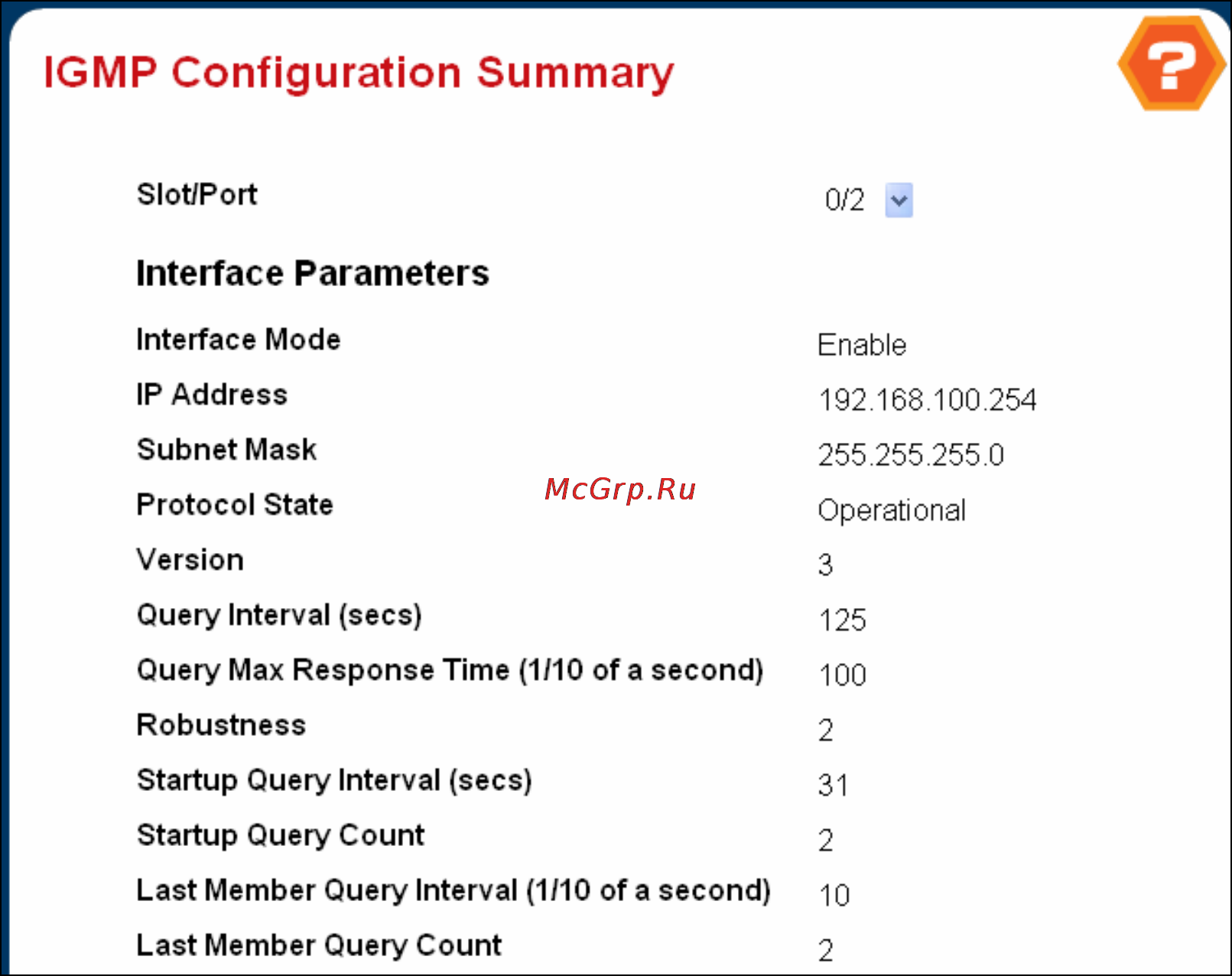

Figure 4-6-58 IGMP Configuration Summary
o Slot/Port - Select the slot and port for which data is to be displayed. Slot 0 is the base unit.
Non-Configurable Data
o Interface Mode - The administrative status of IGMP on the selected interface.
o IP Address - The IP address of the selected interface.
o Subnet Mask - The subnet mask for the IP address of the selected interface.
o Protocol State - The operational state of IGMP on the selected interface.
o Version - The version of IGMP configured on the selected interface.
o Query Interval - The frequency at which IGMP host-query packets are transmitted on the selected interface.
o Query Max Response Time - The maximum query response time advertised in IGMPv2 queries sent from the
selected interface.
