User’s Manual of WGS3-2820/WGS3-5220

207

4.6.1.4 IP Interface Secondary Address Configuration

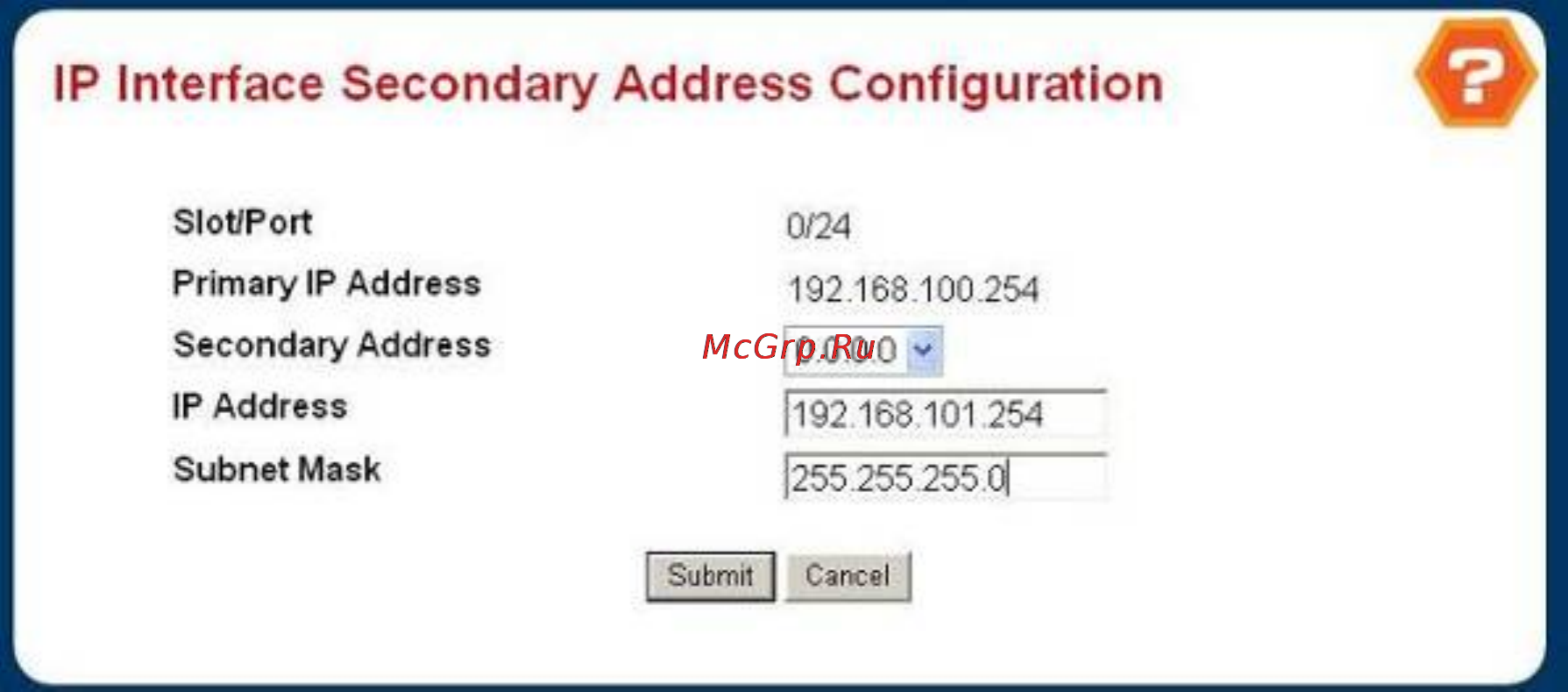

Figure 4-6-4 IP Interface Secondary Address Configuration

Selection Criteria

。 Secondary Address - The IP Address for which data is to be displayed. Create must be selected to add a

secondary address to the interface.

Configurable Data

。 IP Address - Enter the IP Address for the interface. This value is readonly once configured.

。 Subnet Mask - Enter the subnet mask for the interface. This is also referred to as the subnet/network mask, and

defines the portion of the interface's IP Address that is used to identify the attached network. This value is readonly

once configured.

Non-Configurable Data

。 Slot/Port - The interface for which data is to be displayed or configured.

。 Primary IP Address - The Primary IP Address for the Interface.

Command Buttons

。 Submit - Update the switch with the values on this screen. If you want the switch to retain the new values across a

power cycle, you must perform a save.

。 Delete - Delete the IP Address from the interface.

。 Cancel - Return to the IP Interface Configuration screen
