Planet WGS3-2820 [154/528] Port access summary

User’s Manual of WGS3-2820/WGS3-5220

154

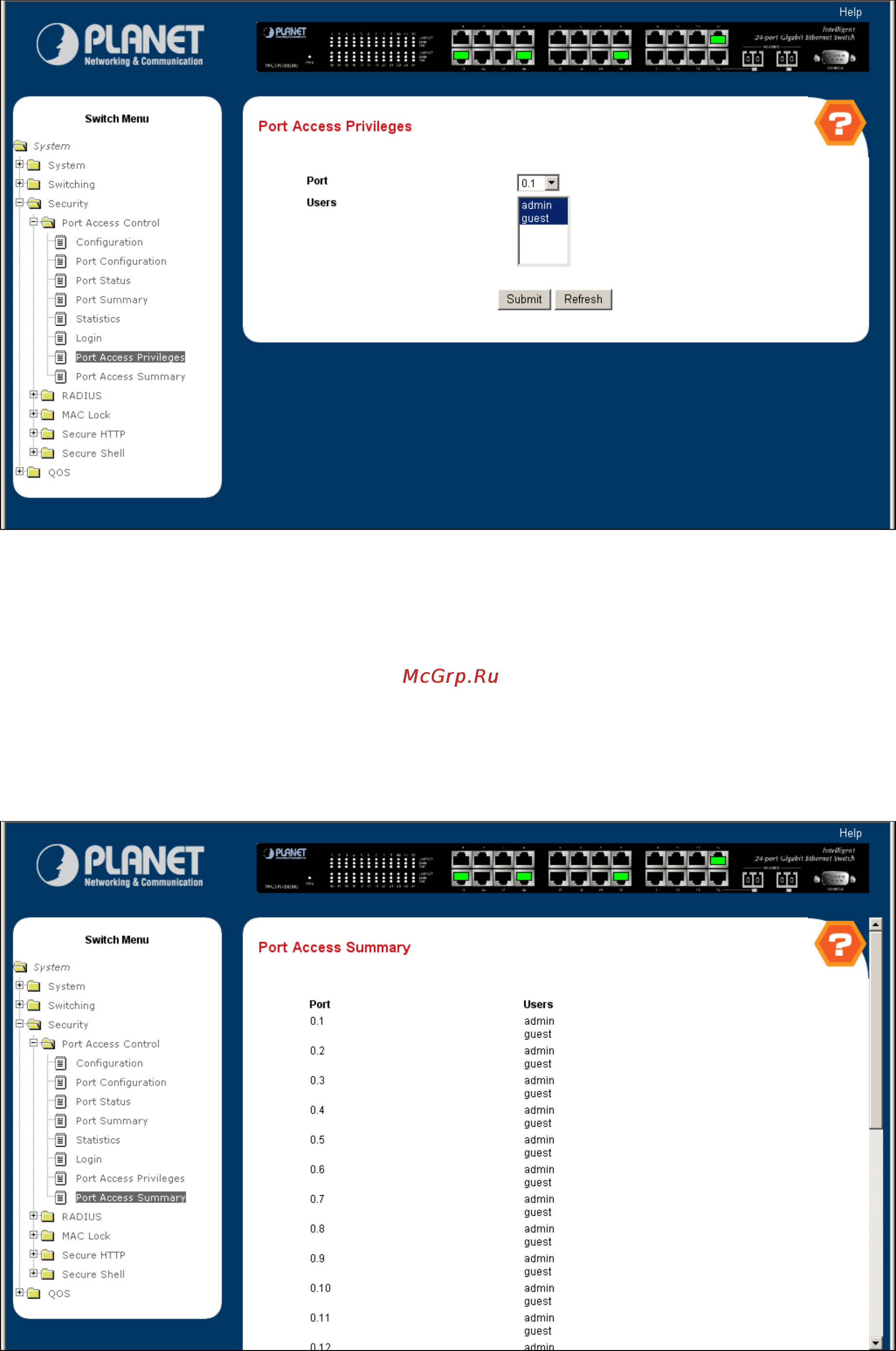

Figure 4-4-6 Port Access Privileges

4.4.1.7 Port Access Summary

This page is to show the configured access control on each port.

。 Port - Displays the port in slot.port format.

。 Users - Displays the users that have access to the port.

Figure 4-4-7 Port Access Summary
