User’s Manual of WGS3-2820/WGS3-5220

144

4.3.9 Class of Service

4.3.9.1 802.1p Priority Mapping

This page is to configure the IEEE 802.1p priority mapping on the port.

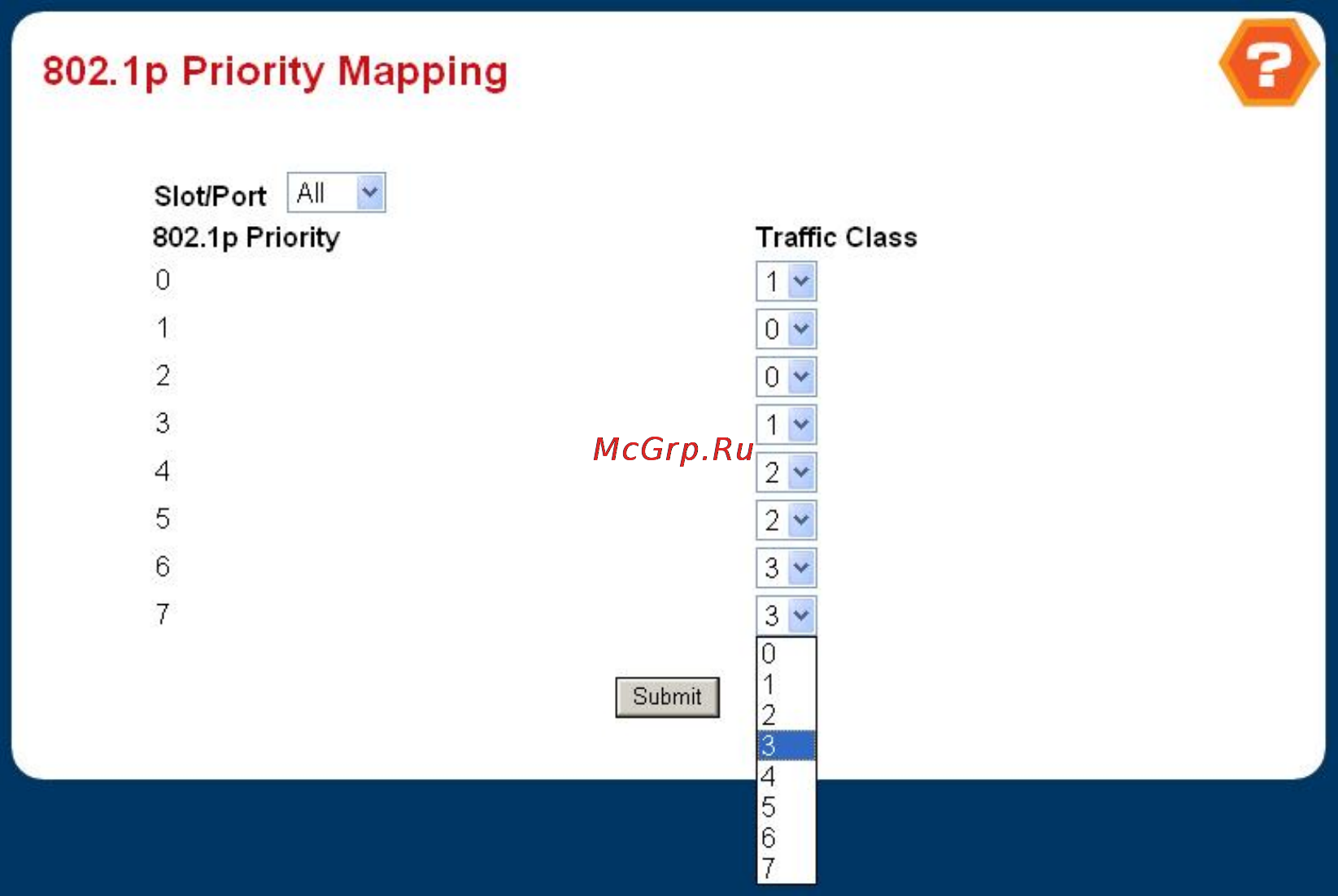

Figure 4-3-40 802.1p Priority Mapping

。 Slot.Port - Select the physical interface for which you want to display or configure data. Select 'All' to set the

parameters for all ports to the same values.

。 Traffic Class - Specify which internal traffic class to map the corresponding 802.1p priority.

。 802.1p Priority - Displays the 802.1p priority to be mapped.
