User’s Manual of WGS3-2820/WGS3-5220

180

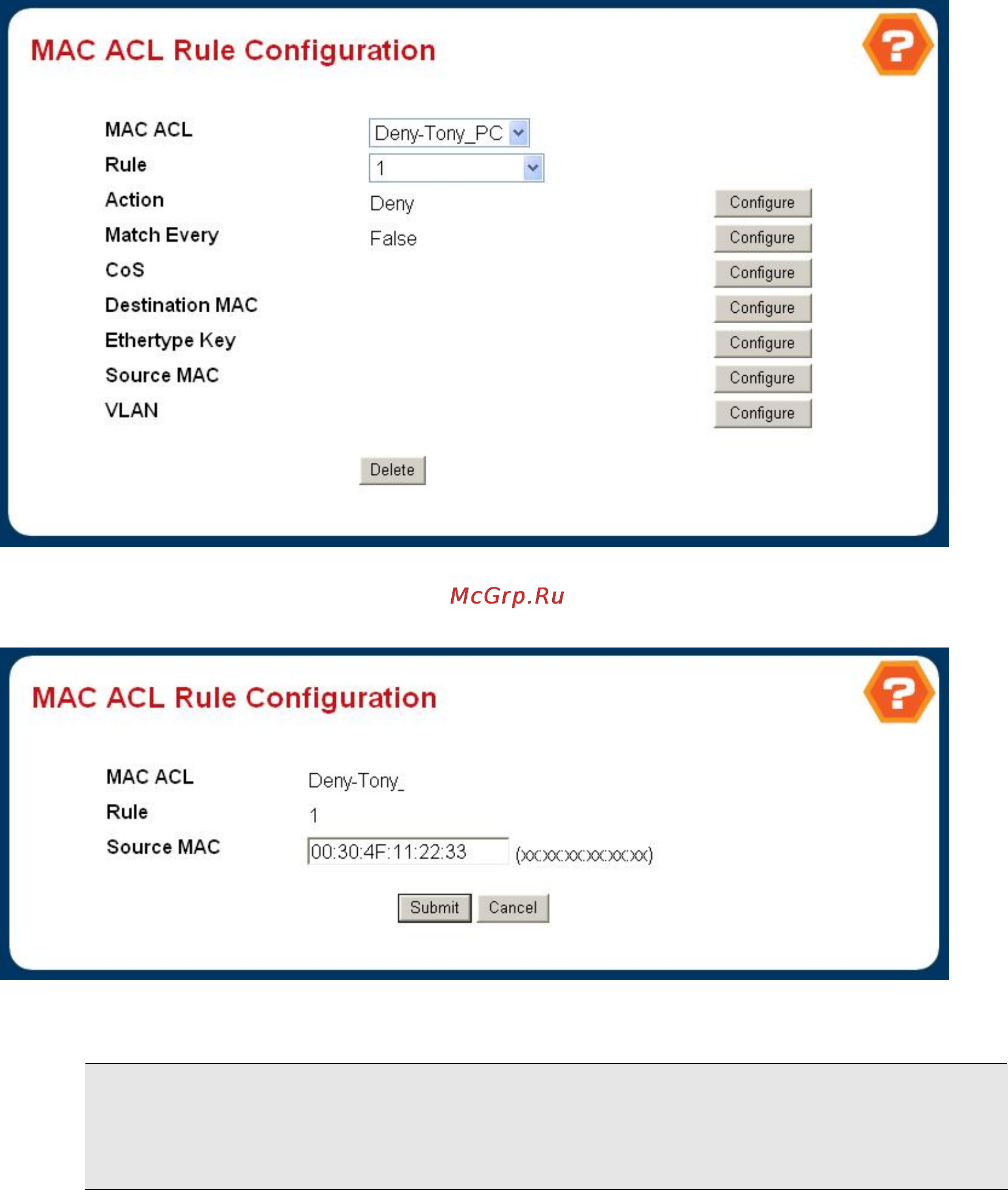

Figure 4-5-8 MAC ACL Rule Configuration – Setting items

Figure 4-5-9 MAC ACL Rule Configuration – Source MAC configuration

#Note:

If only one or two MAC addresses are going to be blocked, rember to add a “Permit All” rule at the

end of the ACL. Or other packets would be blocked/droped too.
