User’s Manual of WGS3-2820/WGS3-5220

162

。 Pending Requests - The number of RADIUS Access-Request packets destined for this server that have not yet

timed out or received a response.

。 Timeouts - The number of authentication timeouts to this server.

。 Unknown Types - The number of RADIUS packets of unknown type which were received from this server on the

authentication port.

。 Packets Dropped - The number of RADIUS packets received from this server on the authentication port and

dropped for some other reason.

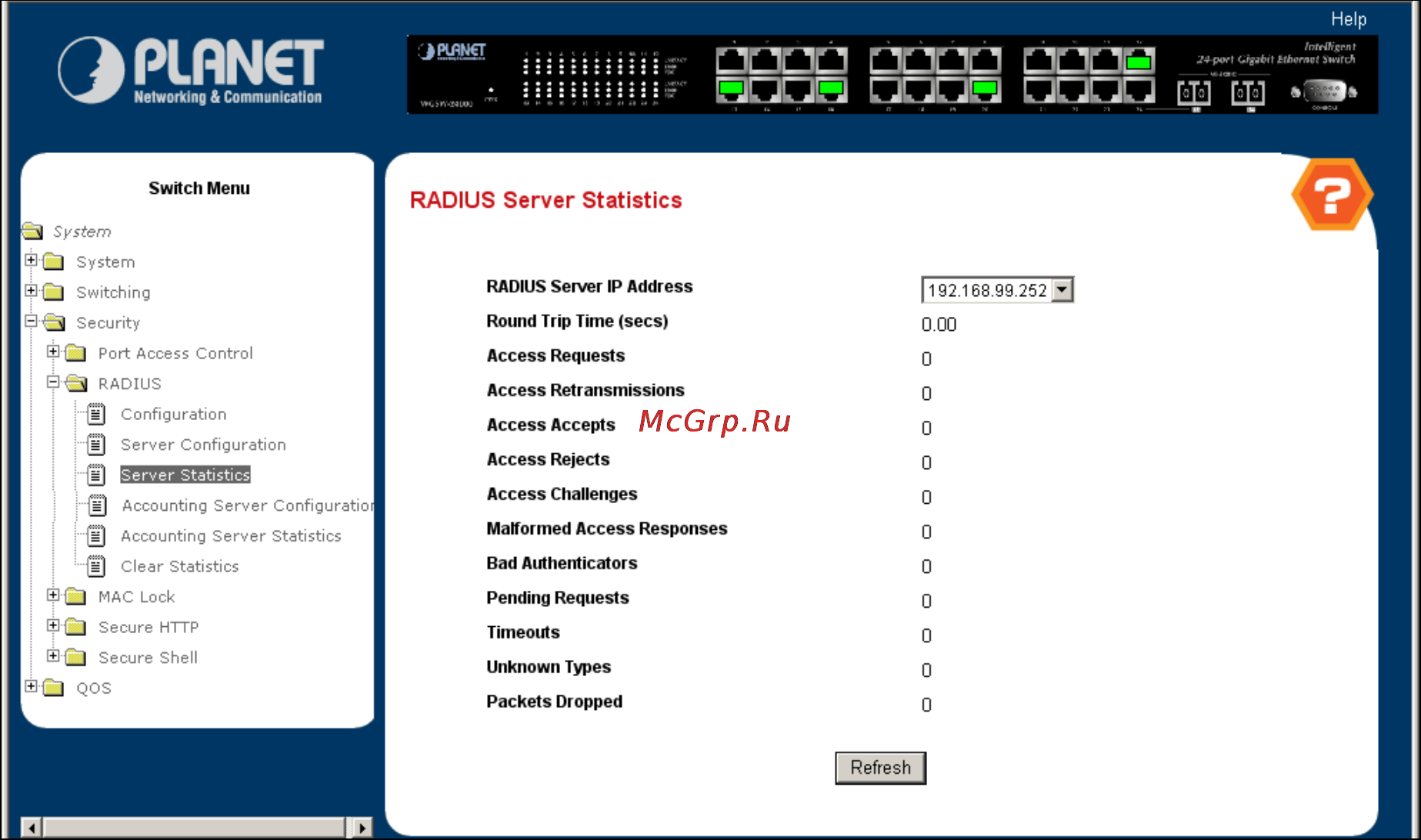

Figure 4-4-13 RADIUS Server Statistics
