User’s Manual of WGS3-2820/WGS3-5220

166

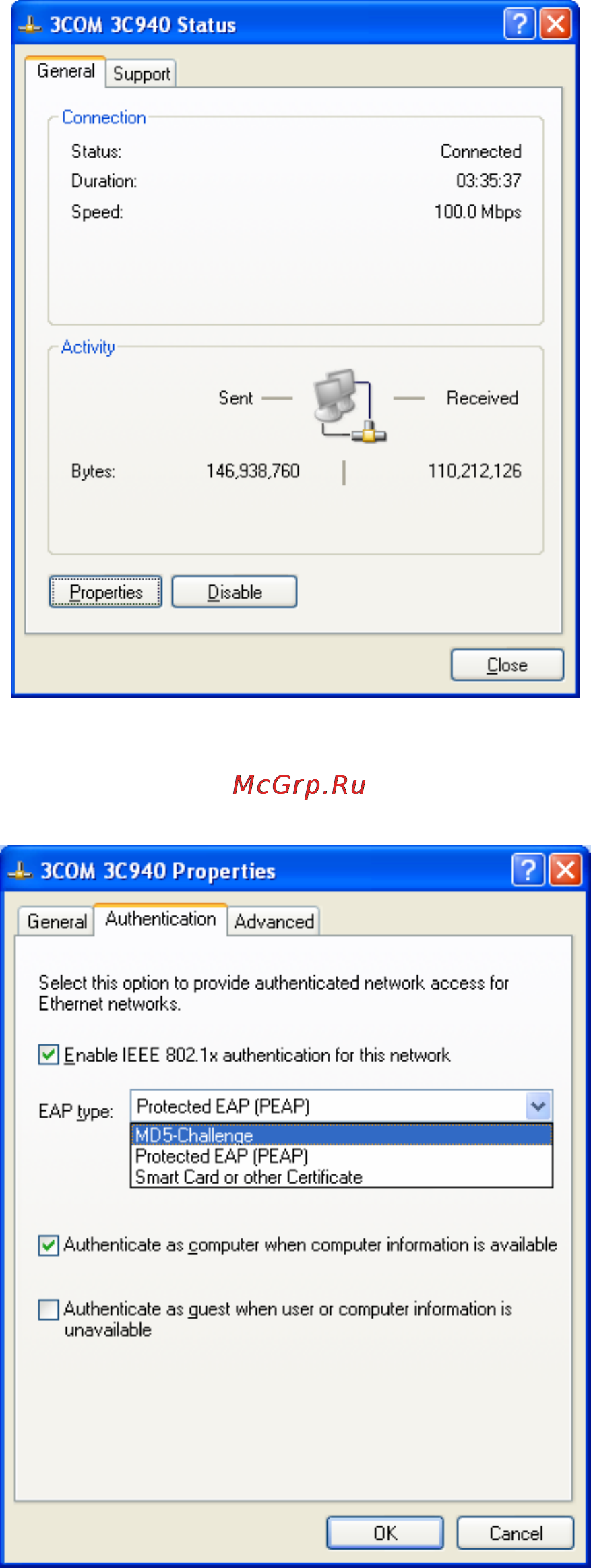

4. Select “Authentication” tab.

5. Select “Enable network access control using IEEE 802.1X” to enable 802.1x authentication.

6. Select “MD-5 Challenge” from the drop-down list box for EAP type.

7. Click “OK”.

8. When client has associated with WGSW-2840/5240, a user authentication notice appears in system tray. Click on the

notice to continue.
