User’s Manual of WGS3-2820/WGS3-5220
53

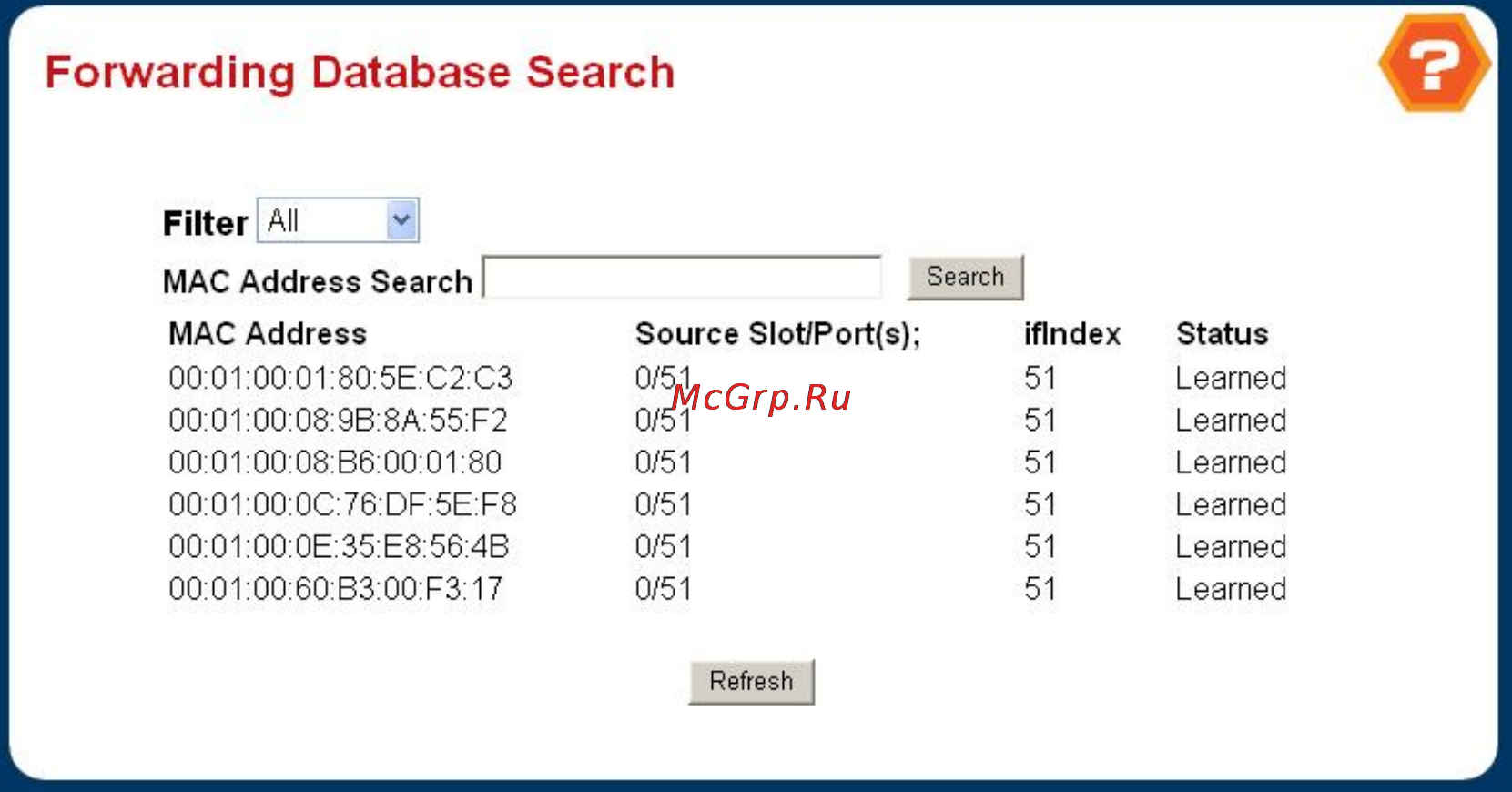

Figure 4-2-16 Forwarding Database Search
4.2.5 Log
。 Buffered Log Configuration
。 Buffered Log
。 Command Logger Configuration
。 Console Log Configuration
。 Event Log
。 Hosts Configuration
。 Persistent Log Configuration
。 Persistent Log
。 Syslog Configuration
4.2.5.1 Buffered Log Configuration
This log stores messages in memory based upon the settings for message component and severity. On stackable systems, this
log exists only on the top of stack platform. Other platforms in the stack forward their messages to the top of stack log.
Configurable Data
。 Admin Status - A log that is "Disabled" shall not log messages. A log that is "Enabled" shall log messages. Enable
or Disable logging by selecting the corresponding line on the pulldown entry field.
。 Behavior Indicates the behavior of the log when it is full. It can either wrap around or stop when the log space is
filled.
