Troubleshooting by Remote Controller Si341009
101 Troubleshooting
Troubleshooting
Refer to P.170
Refer to P.176
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.

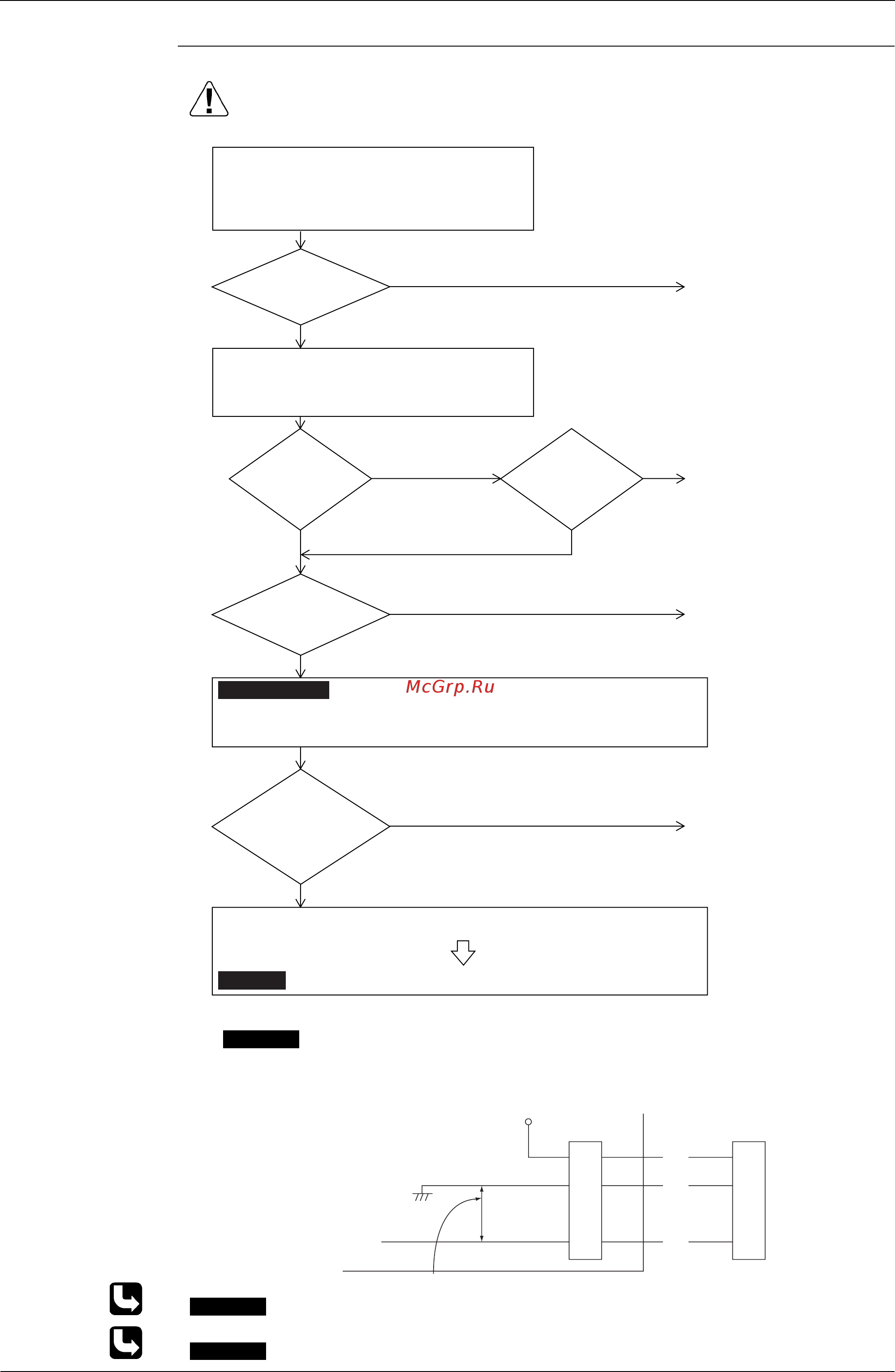

Check for the points shown below.
(1) Is the stop valve open?
(2) Is the HPS connector properly connected to
the outdoor unit main PCB?
(3)
Does the high pressure switch have continuity?
(1) Mount a pressure gauge on the high pressure
service port.
(2) Reset the operation using the remote
controller, and then restart the operation.
Are the three points
above OK?
NO
NO
NO
NO
YES
YES
NO
YES
YES
YES
Rectify defective points,
if any.
Replace the HPS.
Replace the high
pressure sensor.
Replace the outdoor
unit main PCB (A1P).
Does the stop
due to error
(E3) recur?
Are the
characteristics of the high
pressure sensor normal?
(See *1.)
Check if the “high
pressure” value and the
actual measurement value by
pressure sensor are
the same.
Is the HPS
operating value
normal
(i.e., 4.0MPa)?
Service Checker
Connect the service checker to compare the “high pressure” value and the
actual measurement value by pressure sensor (Refer to *2) by using the
service checker.
·
The high pressure sensor is normal, and the pressure detected with the main PCB are also normal.
· The high pressure or field piping pressure has really become high.
CHECK 1
Remove the causes by which the high pressure or field piping
pressure has become high.
*1. Make a comparison between the voltage of the pressure sensor and that read by the
pressure gauge.
(As to the voltage of the pressure sensor, make measurement of voltage at the connector,
and then convert it to pressure.)
*2. Make measurement of voltage of the pressure sensor.
CHECK 12
+5V
Connector for high
pressure sensor (Red)
Micro-controller
A/D input
Make measurement of DC
volta
g
e between these wires.
(4)
(3)
(1)
Red
Black
White
(2)
High
pressure
sensor
CHECK 1
CHECK 12
