Troubleshooting by Remote Controller Si341009
169 Troubleshooting
Troubleshooting
Note:
*1. Check the correct wiring “indoor-outdoor” and “outdoor-outdoor” by Installation Manual.
What is Auto Address?
This is the address automatically assigned to indoor units and outdoor units after initial power
supply upon installation, or after executing rewiring (Keep pressing the button for
more than 4 seconds).
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
NO
YES
YES
After fixing the incorrect
wiring, push and hold the
RESET button on the master
outdoor unit PCB for 5
seconds.
Normal
NO

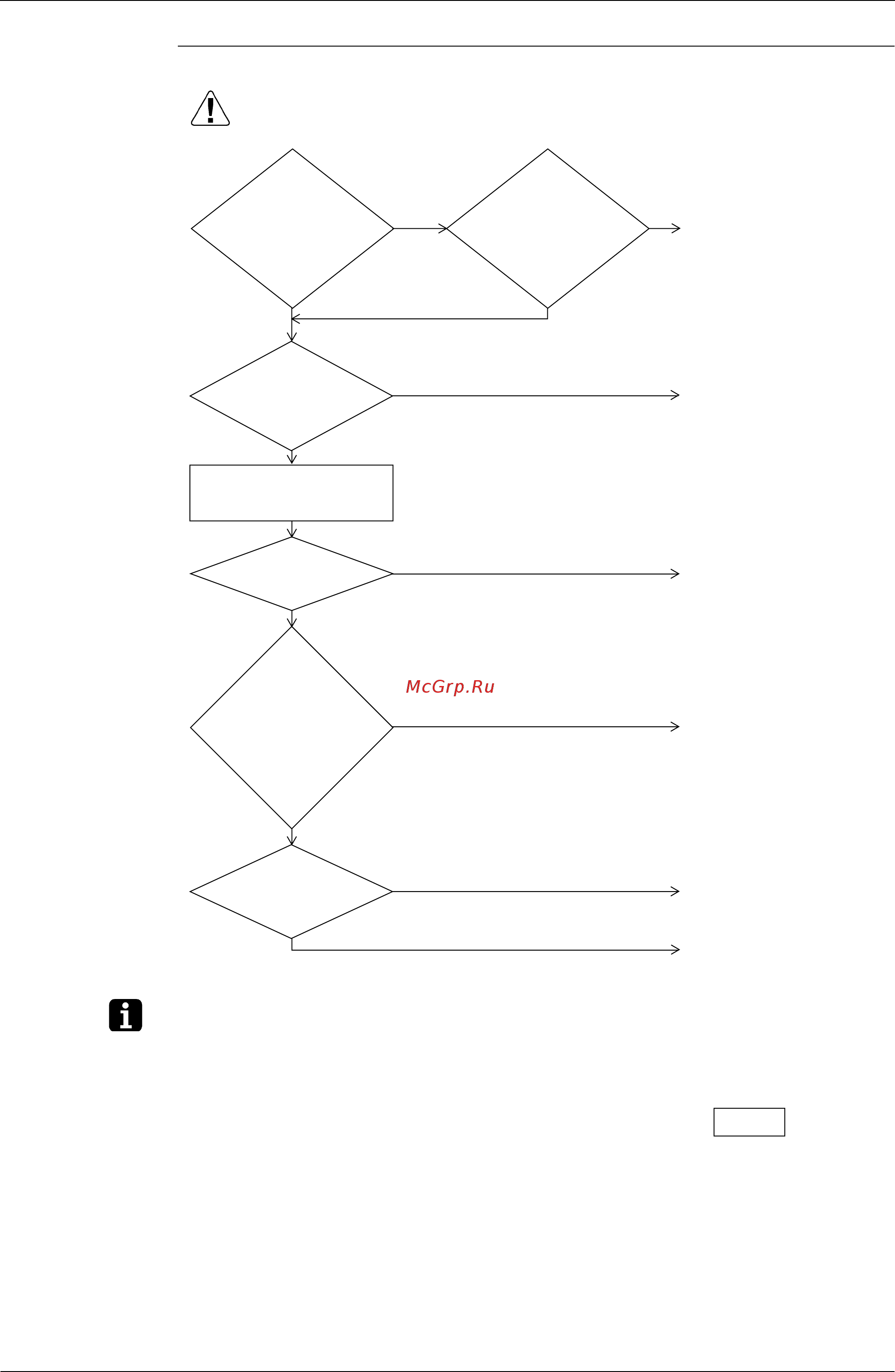

Is
electricity
being introduce for
the first time after
installation or after an indoor
or outdoor unit PCB
has been
replaced?
Is
indoor - outdoor
and outdoor - outdoor unit
transmission wiring
normal?
(*1)
YES
NO
Normal
NO
Does a error reoccur?
Install the DIII-NET extension
adaptor.
YES
Disconnect
the outdoor-outdoor
unit transmission
wiring to create the one-
system status, and then
check whether or not
the system is
normal.
NO
Does
a “
UH” error occur
for all indoor units in
the system?
YES
NO
Does a error
occur even after 12
minutes elapses from the
time when electricity is
introduced to indoor
and outdoor
units?
YES
Replace the indoor unit PCB.
Replace the outdoor unit PCB.
Push and hold the RESET
button on the outdoor unit
PCB for 5 seconds.
∗ The unit will not run for up to
12 minutes.
RESET
