Troubleshooting by Remote Controller Si341009
139 Troubleshooting
2.30 Faulty Field Setting after Replacing Main PCB or Faulty
Combination of PCB
Remote
Controller
Display
PJ
Applicable
Models
RQYQ8-48PY1
Method of Error
Detection
This error is detected according to communications with the INV. PCB.
Error Decision
Conditions
Make judgement according to communication data on whether or not the type of the INV. PCB
is correct.
Supposed
Causes
Mis-matching of type of PCB
Defective (or no) field setting after replacing main PCB

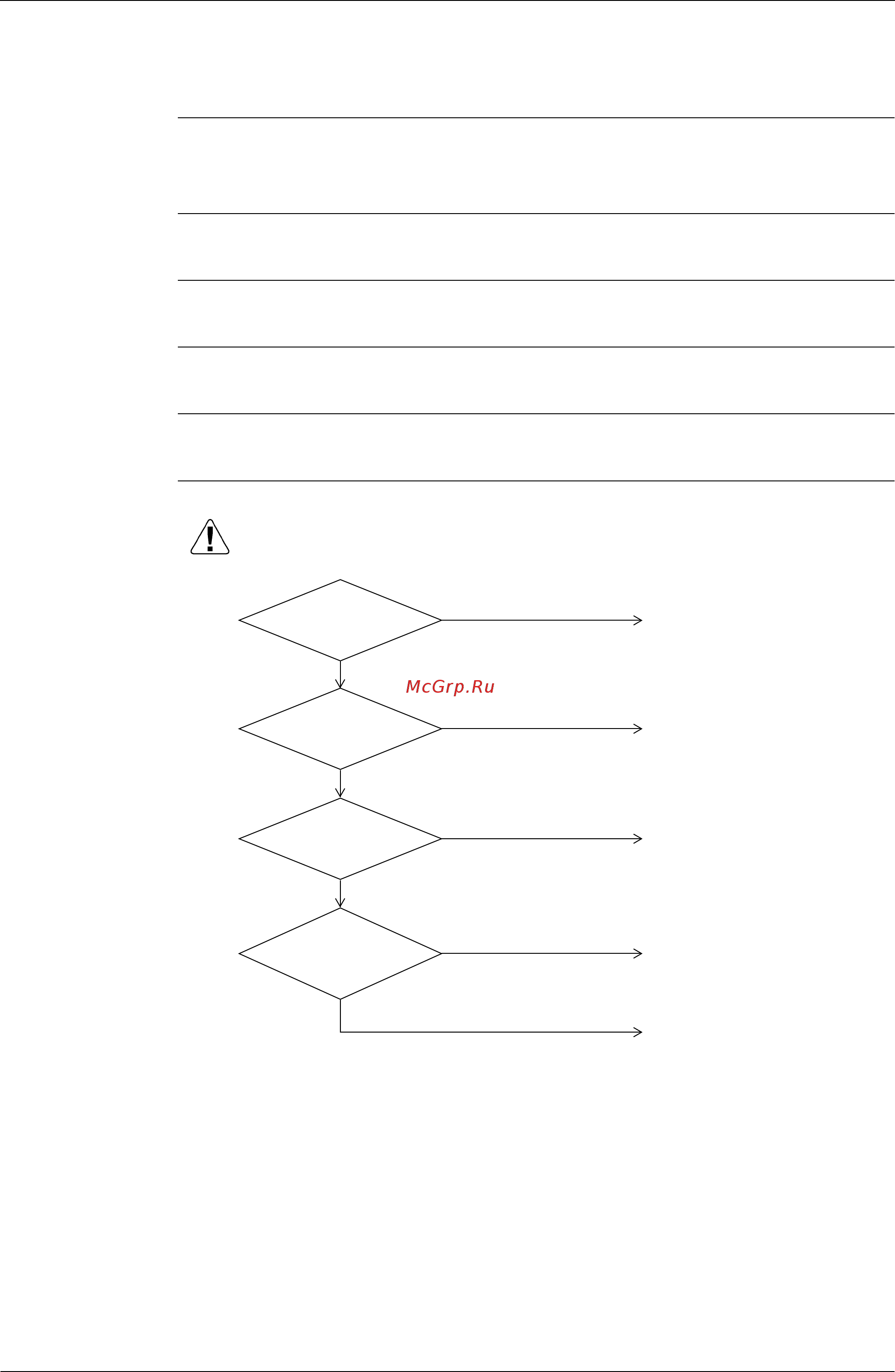

Troubleshooting
YES
Replace the outdoor
unit main PCB.
YES
YES
YES
NO
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Replace it with the
correct compressor
inverter PCB.
Is the
type of the compressor
inverter PCB (A4P)
correct?
NO
Replace it with the
correct fan inverter
PCB.
Is the
type of the fan inverter
PCB (A5P) correct?
NO
Rectify the connection
wiring.
Does the
preparation indication
lamp (H2P) on the main
PCB turn
OFF?
NO
Set the dip switches
correctly.
(After setting: Reset the
power supply)
Is the
setting of dip switches
when replace the main
PCB correct?
