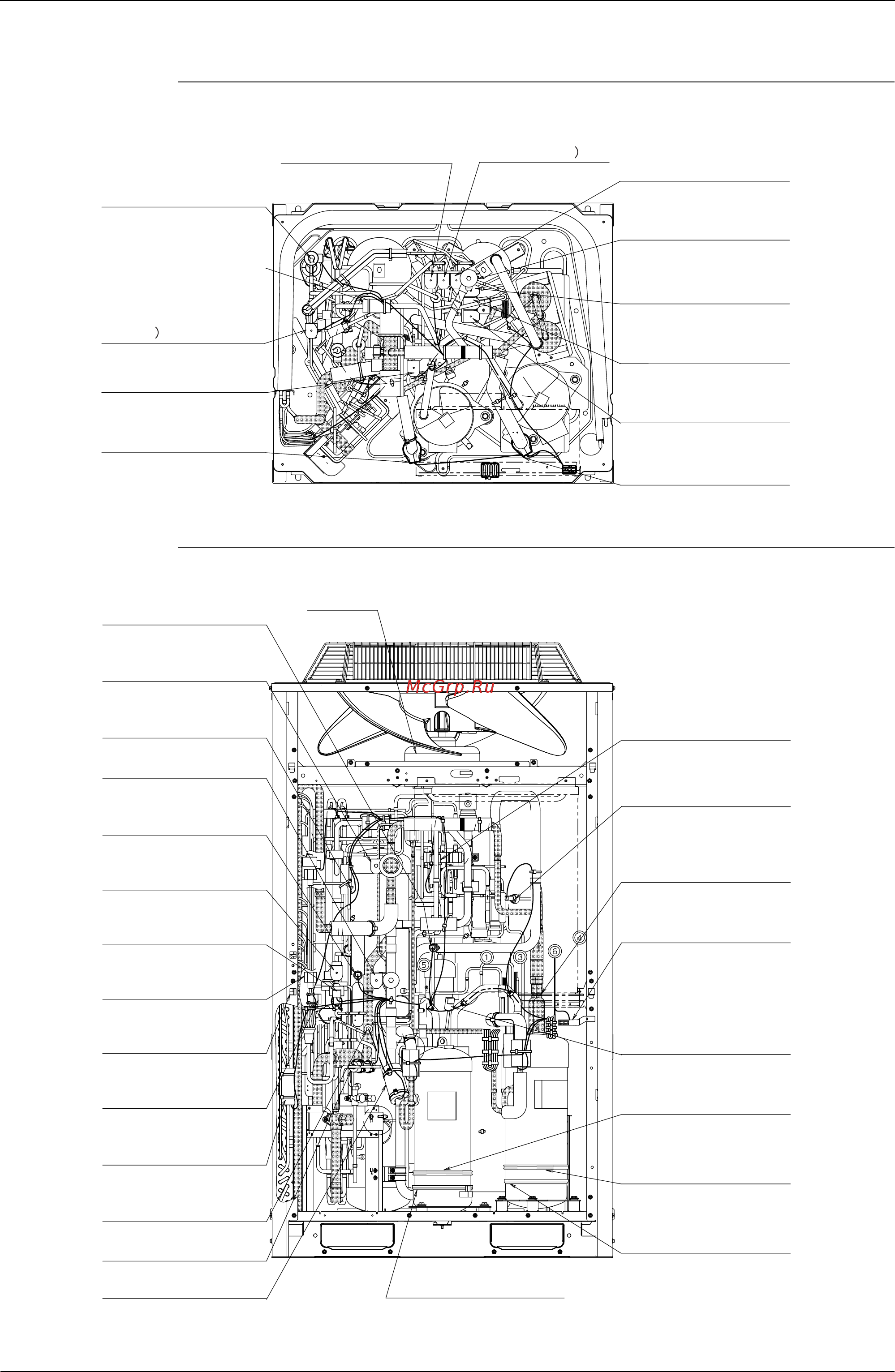

Functional Parts Layout Si341009
29 Refrigerant Circuit
2.2 RQYQ10·12PY1
Plan
Front View
Solenoid valve (Refrigerant
regulator gas pipe)
(Y13S)
Solenoid valve (Mixing unit
inlet)
(Y4S)
Solenoid valve (Circuit of
oil return)
(Y5S)
Solenoid valve (Refrigerant
regulator liquid pipe)
(Y12S)
Solenoid valve (Refrigerant
regulator liquid outlet)
(Y14S)
Thermistor (M2C discharge
pipe)
(R32T)
Electronic expansion valve
(Subcooling)
(Y2E)
Solenoid valve (Refrigerant
regulator gas vent pipe)
(Y11S)
Solenoid valve (Oil
regulator outlet
(Y9S)
Thermistor (Subcooling
heat exchanger outlet)
(R5T)
Solenoid valve (Receiver
gas vent
(Y8S)
Thermistor
(M1C discharge pipe)
(R31T)
Solenoid valve (Hot gas)
(Y1S)
Thermistor (Refrigerant
regulator liquid pipe)
(R4T)
High pressure switch (For
STD 1)
(S2PH)
Thermistor (Outdoor air)
(R1T)
High pressure switch (For
INV.)
(S1PH)
Crankcase heater
(E2HC)
Standard compressor 1
(STD1)
(M2C)
Inverter compressor (INV.)
(M1C)
Crankcase heater
(E1HC)
High pressure sensor
(S1NPH)
Four way valve
(Heat exchanger)
(Y3S)
Thermistor (Receiver liquid
level)
(R2T)
High pressure sensor
(Liquid pipe outlet)
(S2NPH)
Solenoid valve (Receiver
liquid level)
(Y7S)
Thermistor (Receiver gas
vent outlet)
(R7T)
Solenoid valve (Main electronic
expansion valve bypass)
(Y10S)
Thermistor (Heat
exchanger deicer)
(R9T)
High pressure switch (for
control)
(S3PH)
Thermistor (Liquid pipe)
(R6T)
Thermistor (Suction pipe)
(R8T)
Electronic expansion valve
(Main)
(Y1E)
Solenoid valve (Close liquid
pipe for stopped outdoor unit)
(Y6S)
Solenoid valve (Bypass)
(Y2S)
Low pressure sensor
(S1NPL)
Inverter fan
(M1F)
