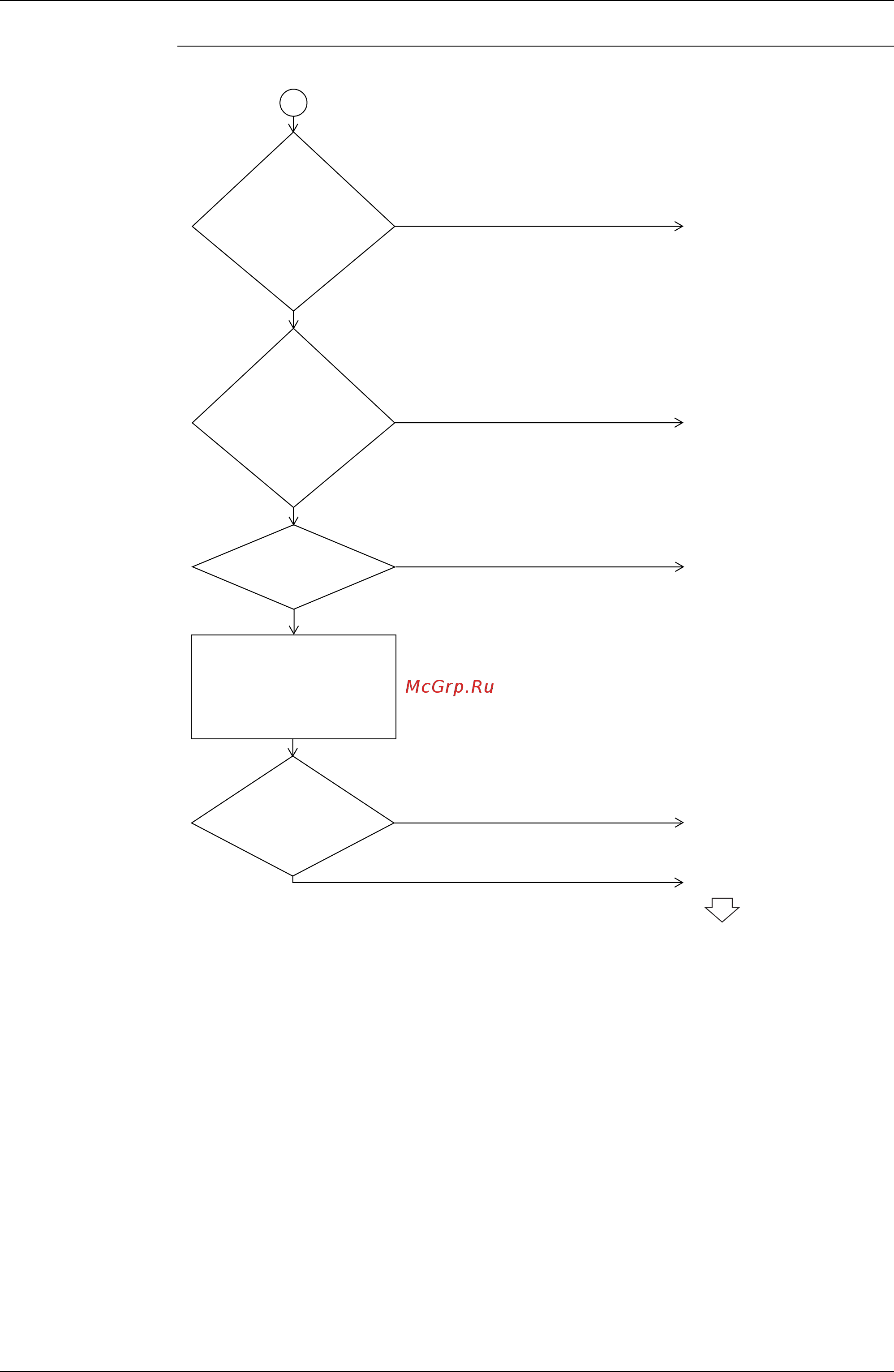

Si341009 Troubleshooting by Remote Controller
Troubleshooting 166
Troubleshooting
Is the
voltage between
the terminals F1 (+)
and F2 (-) in the range of
15.2 to 17.6
VDC?
Replace the centralized
controller.
Centralized controller: Normal
Normal
Correct the wiring.
Abnormal
Check the
transmission wiring
between centralized
controllers for any broken wire.
For details, refer to information in
the “Procedure for checking
broken wires” section.
A
NO
YES
Disconnect the transmission
wiring of the master centralized
controller, and then check the
voltage between the
transmission terminals (F1 and
F2) of the master unit
transmission equipment using
a tester.
Normal
Correct the wiring.
Abnormal
Check the
transmission
wiring between master
centralized controller for any
broken wire. For details, refer to
information in the "Procedure for
checking broken wires"
section.
It is supposed that the error
results from external factors
(e.g. noises) from other
equipment.
Has the
master centralized controller
setting connector been
connected?
Correct the connection of the
connector.
NO
YES
