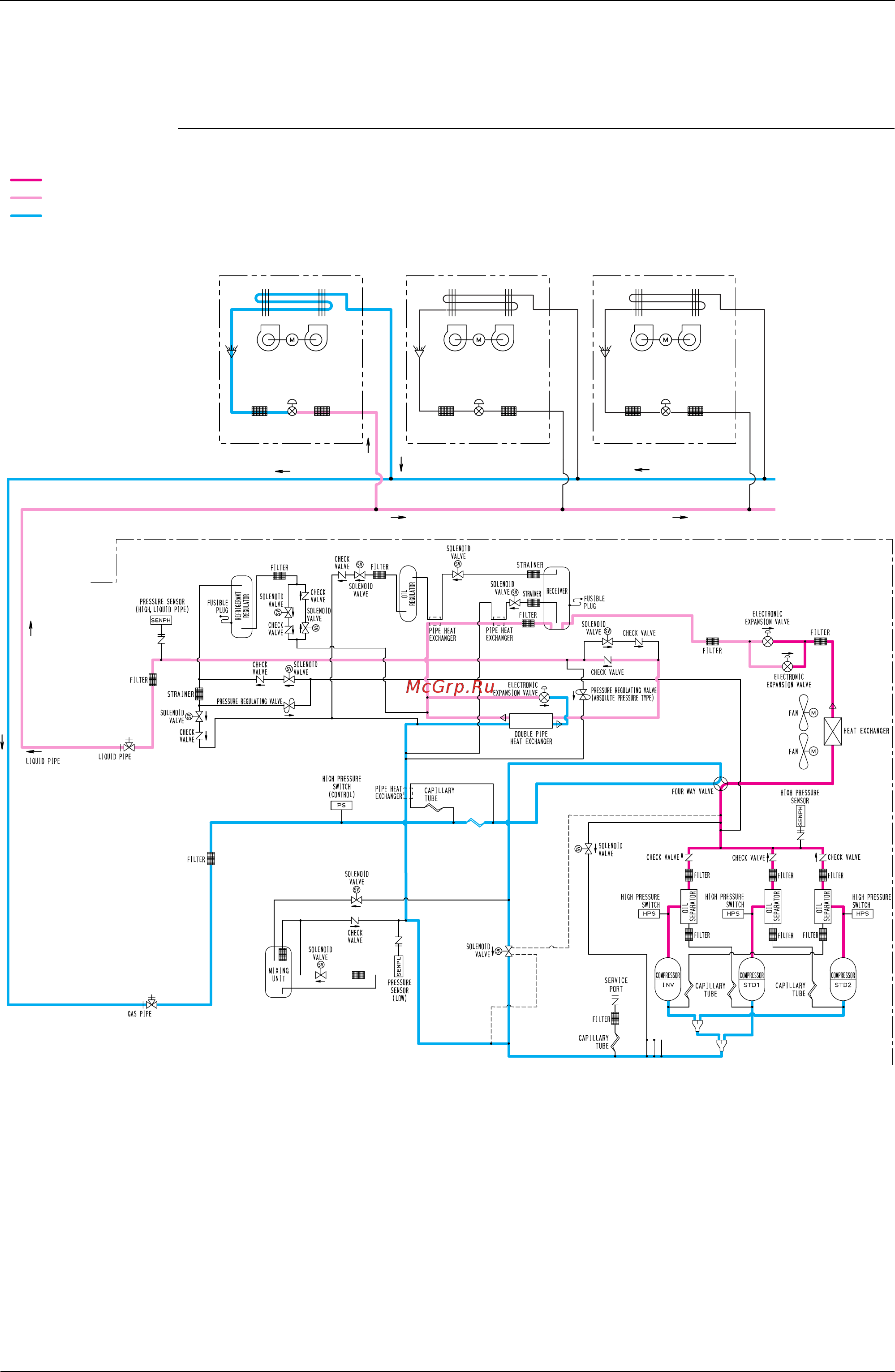

Refrigerant Flow for Each Operation Mode Si341009
31 Refrigerant Circuit
3. Refrigerant Flow for Each Operation Mode
3.1 RQYQ8~16PY1
Cooling operation
"High temperature, high pressure gas"
"High temperature, high pressure liquid"
"Low temperature, low pressure"
Indoor unit operation "ON" (Cooling)
+
Thermostat "ON"
Indoor unit operation "OFF" (Cooling) Indoor unit operation "ON" (Cooling)
+
Thermostat "OFF"
Indoor unit
FilterFilter
Heat exchanger
Fan "ON"
FilterFilter
Heat exchanger
Fan "OFF"
Electronic expansion valve
(Superheated control)
Electronic expansion valve
(0 pls)
Electronic expansion valve
(0 pls)
FilterFilter
Heat exchanger
Fan "ON"
STOP VALVE
(WITH SERVICE
PORT φ7.9mm
FLARE
CONNECTION)
STOP VALVE
(WITH SERVICE
PORT φ7.9mm
FLARE
CONNECTION)
