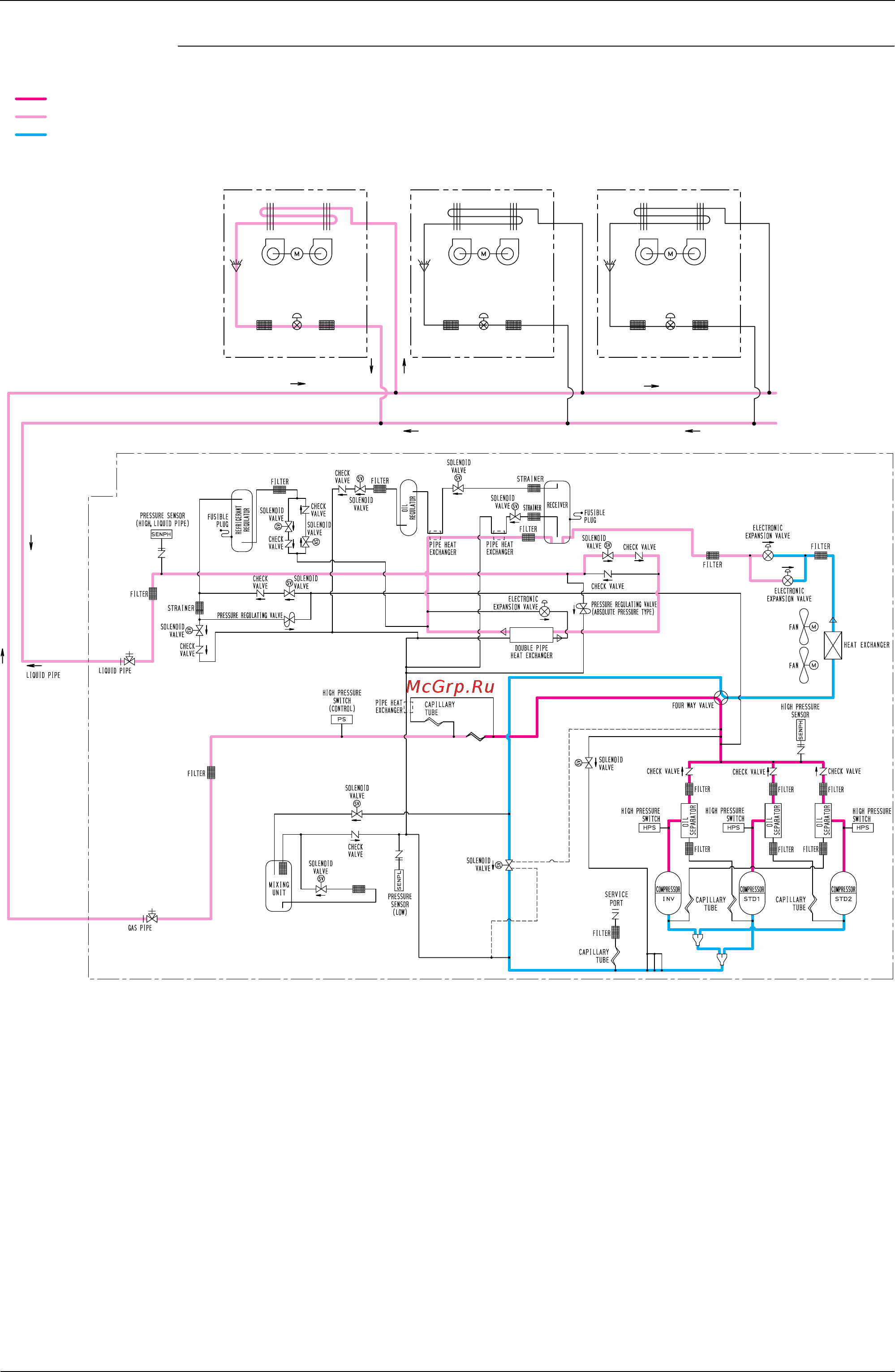

Refrigerant Flow for Each Operation Mode Si341009
33 Refrigerant Circuit
Heating operation
"High temperature, high pressure gas"
"High temperature, high pressure liquid"
"Low temperature, low pressure"
Indoor unit operation "ON" (Heating)
+
Thermostat "ON"
Indoor unit operation "OFF" (Heating) Indoor unit operation "ON" (Heating)
+
Thermostat "OFF"
Indoor unit
FilterFilter
Heat exchanger
Fan "OFF"
FilterFilter
Heat exchanger
Fan "OFF"
FilterFilter
Heat exchanger
Fan "ON"
Electronic expansion valve
(Superheated control)
Electronic expansion valve
(200 ~ 300 pls)
Electronic expansion valve
(200 ~ 300 pls)
STOP VALVE
(WITH SERVICE
PORT φ7.9mm
FLARE
CONNECTION)
STOP VALVE
(WITH SERVICE
PORT φ7.9mm
FLARE
CONNECTION)
