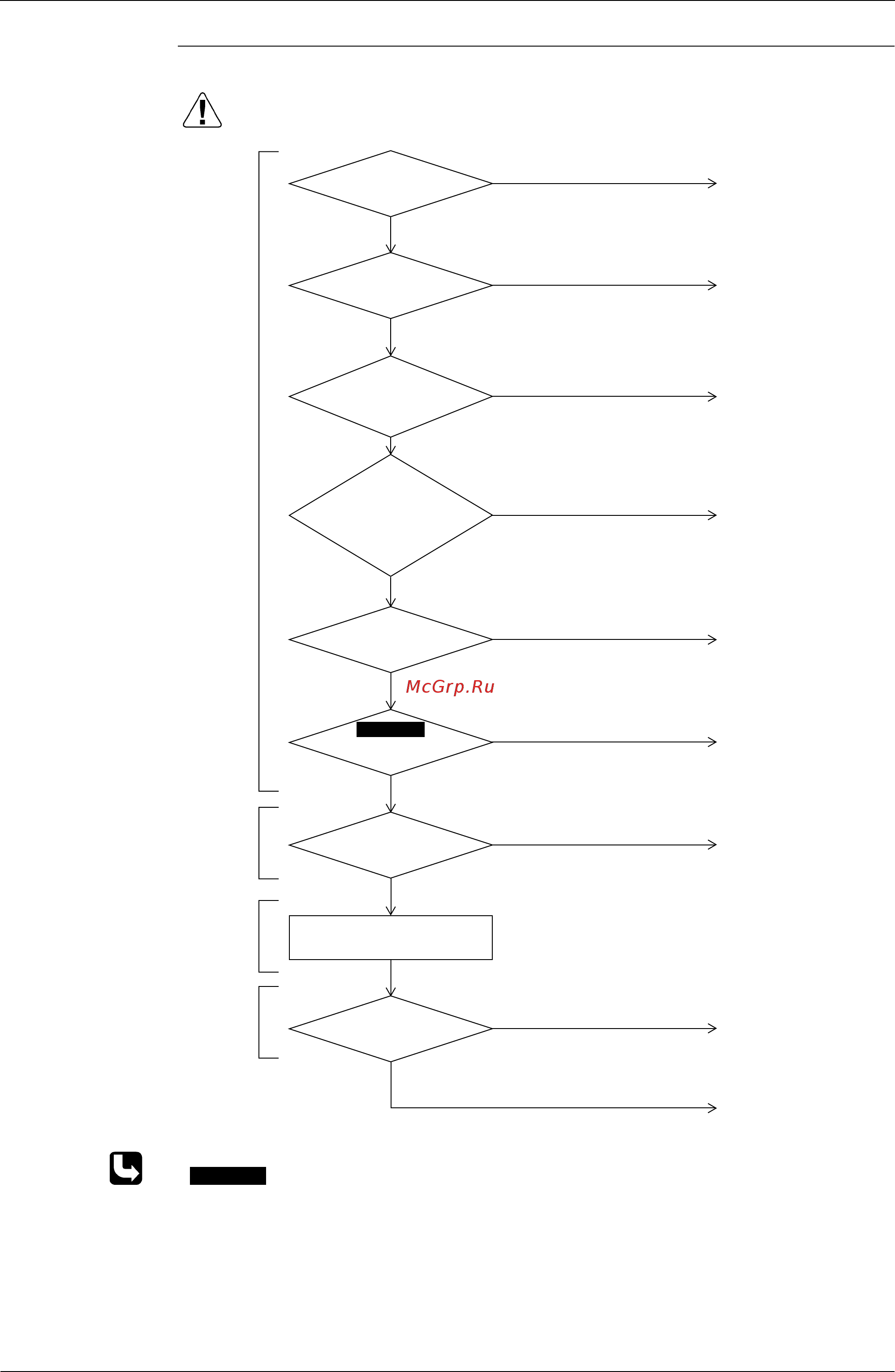

Troubleshooting by Remote Controller Si341009
129 Troubleshooting
Troubleshooting
Refer to P.173
Correct the wiring and
connection.
Replace the inverter
compressor.
Replace the inverter
compressor.
Replace the inverter PCB
(A4P).
Continue the operation.
Momentary power failure
is possible.
Replace the compressor
lead wires.
Open the stop valve.
NO
NO
NO
YES
YES
NO
NO
YES
YES
YES
NO
NO
Power OFF
Power ON
Is the stop valve open?
Are the
compressor lead
wires normal?
Are the
wiring and connection to
the compressor
normal?
Is the insulation
resistance of the
compressor
100 kΩ or
less?
CHECK 4
Is the power transistor
normal?
Failure
occurs again after restarting
the unit.
Compressor
coils are disconnected.
YES
YES
YES
Continue the operation.
NO
Failure
occurs again after restarting
the unit.
Power OFF
Power ON
Replace the inverter
compressor.
(
(
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Replace the inverter PCB
(A4P).
CHECK 4
