Detailed Control Functions Si341009
45 Function

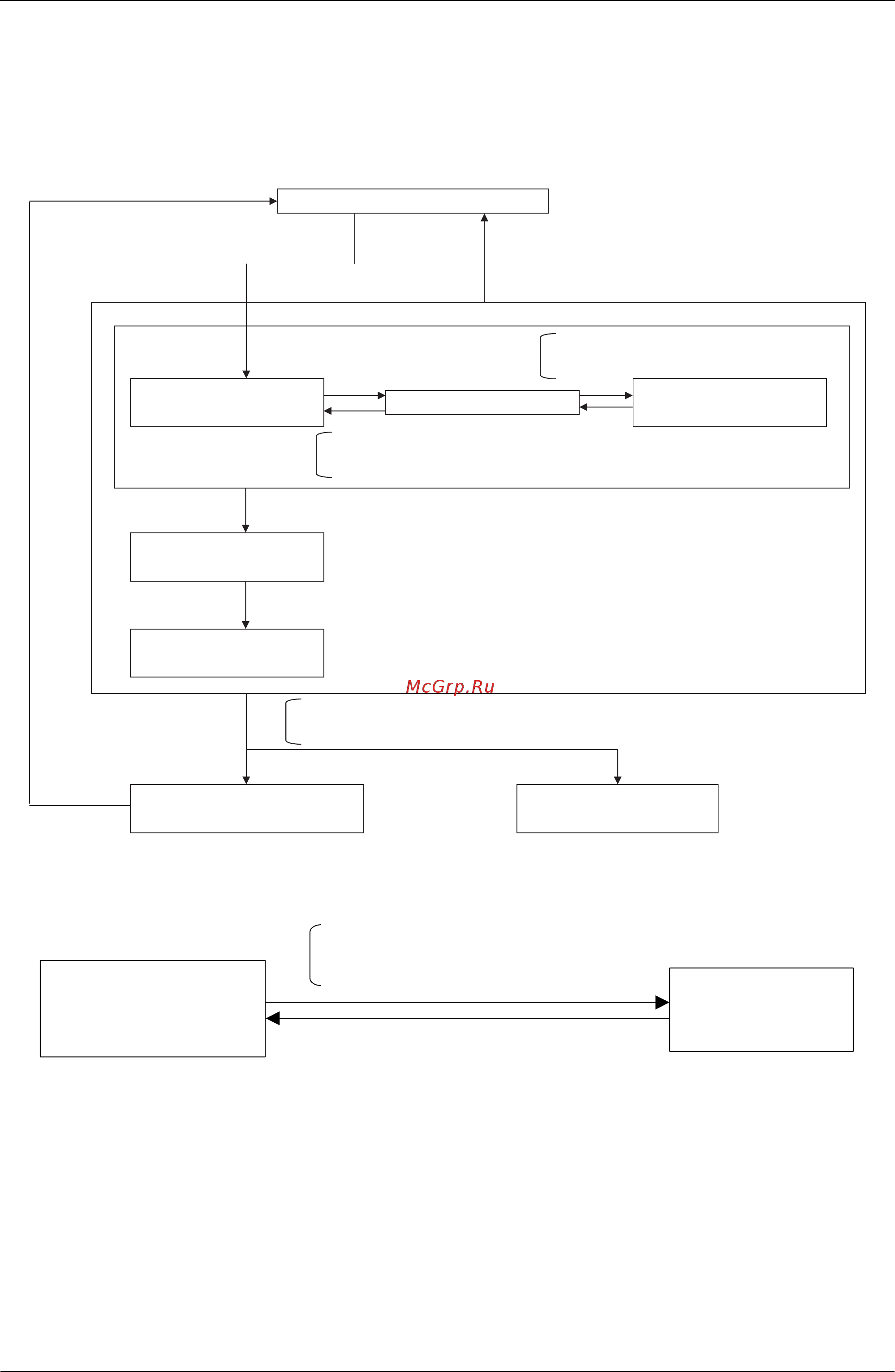

2.5.3 Discharge Pipe Protection Control
This discharge pipe protection control is used to protect the compressor internal temperature against a malfunction or
transient increase of discharge pipe temperature.
In case of multi-outdoor-unit system, each outdoor unit performs this control individually in the following sequence.
[INV. compressor]
[STD. compressor]
In case of multi-outdoor-unit system, each outdoor unit performs this control individually in the following sequence.
&
•HTdi < 115 ˚C
•After 30 seconds
&
•HTdi > 115 ˚C
•After 30 seconds
OR
•HTdi > 135 ˚C
•HTdi > 120 ˚C continues for 10 minutes
Normal operation
INV. compressor
1 step down
Compressor
62Hz + ON + OFF
Compressor
62Hz + OFF + OFF
Restart standby: 10 minutes
(2 times per 100 minutes at max.)
Stop due to malfunction
(“F3” displayed)
INV. compressor
1 step up
Current step maintained
HTdi > 115 ˚C
(Without preconditions)
(Without preconditions)
HTdi < 100 ˚C
HTdi > 120 ˚C continues for 90 seconds
HTdi > 120 ˚C continues for 90 seconds
HTdi: Value of INV. compressor discharge
pipe temperature compensated with
outdoor air temperature
Discharge pipe temperature
standby 3 times per 100 minutes
• HTds > 120˚C continues for a period of
continuous 5 min. or more
• HTds > 135˚C
OR
STD compressor stops
10 min.
Normal operation
HTdS:
Value of STD compressor discharge
pipe temperature (Tds) compensated
with outdoor air temperature.
