Passive - LACP ports that are designated as passive cannot initially send LACP control

frames. In order to allow the linked port group to negotiate adjustments and make changes

dynamically, one end of the connection must have "active" LACP ports (see above).

Click the Apply button to accept the changes made.

FDB

Static FDB Settings

Unicast Static FDB Settings

Users can set up static unicast forwarding on the Switch.

To view the following window, click L2 Features > FDB > Static FDB Settings > Unicast Static FDB Settings as

shown below:

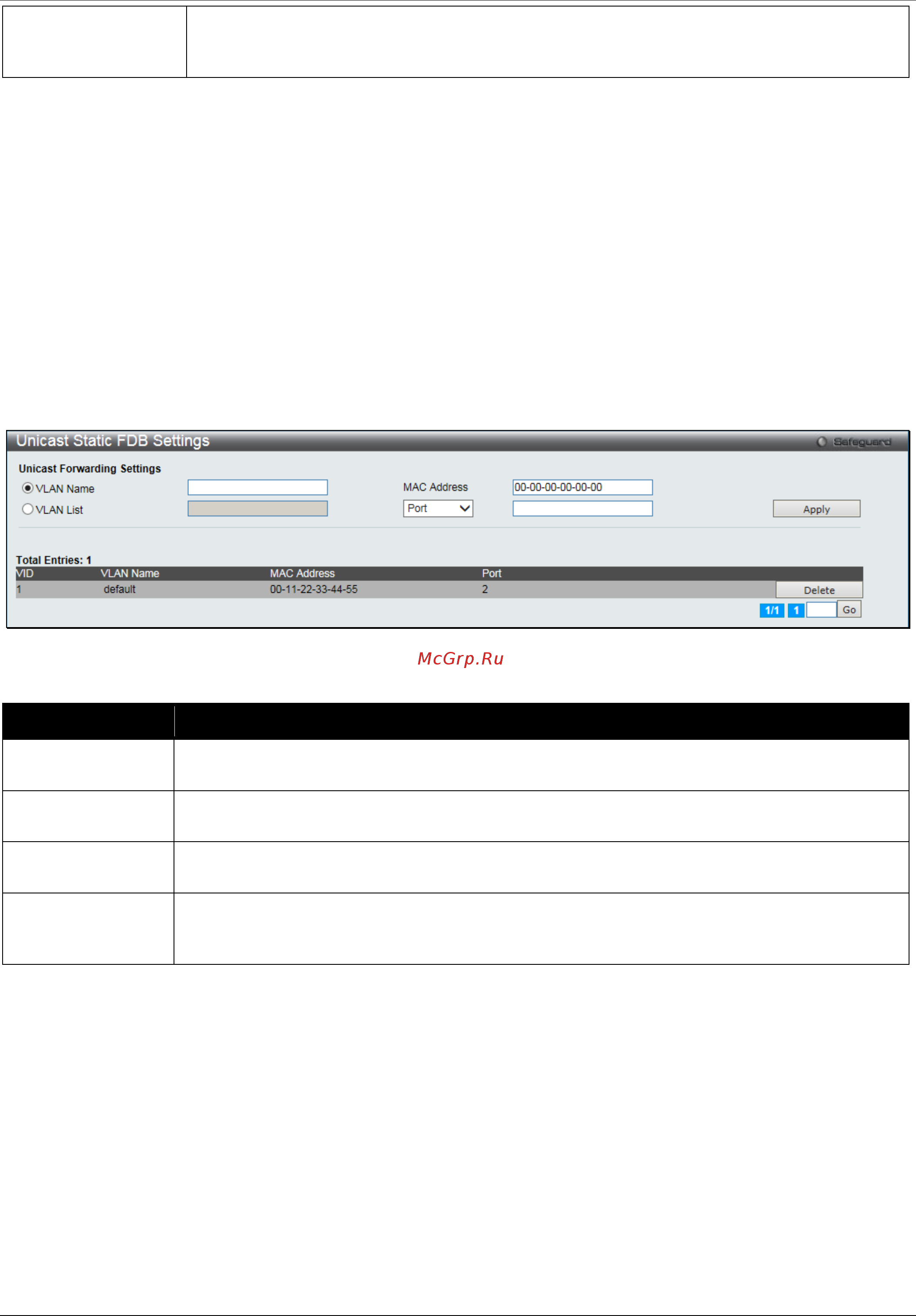

Figure 4-37 Unicast Static FDB Settings window

The fields that can be configured are described below:

Parameter Description

VLAN Name

Click the radio button and enter the VLAN name of the VLAN on which the associated

unicast MAC address resides.

VLAN List

Click the radio button and enter a list of VLAN on which the associated unicast MAC address

resides.

MAC Address

The MAC address to which packets will be statically forwarded. This must be a unicast MAC

address.

Port / Drop

Allows the selection of the port number on which the MAC address entered above resides

This option could also drop the MAC address from the unicast static FDB. When selecting

Port, enter the port number in the field.

Click the Apply button to accept the changes made.

Click the Delete button to remove the specific entry.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

Multicast Static FDB Settings

Users can set up static multicast forwarding on the Switch.

To view the following window, click L2 Features > FDB > Static FDB Settings > Multicast Static FDB Settings as

shown below:
