Multicast Filtering Mode

Users can configure the multicast filtering mode.

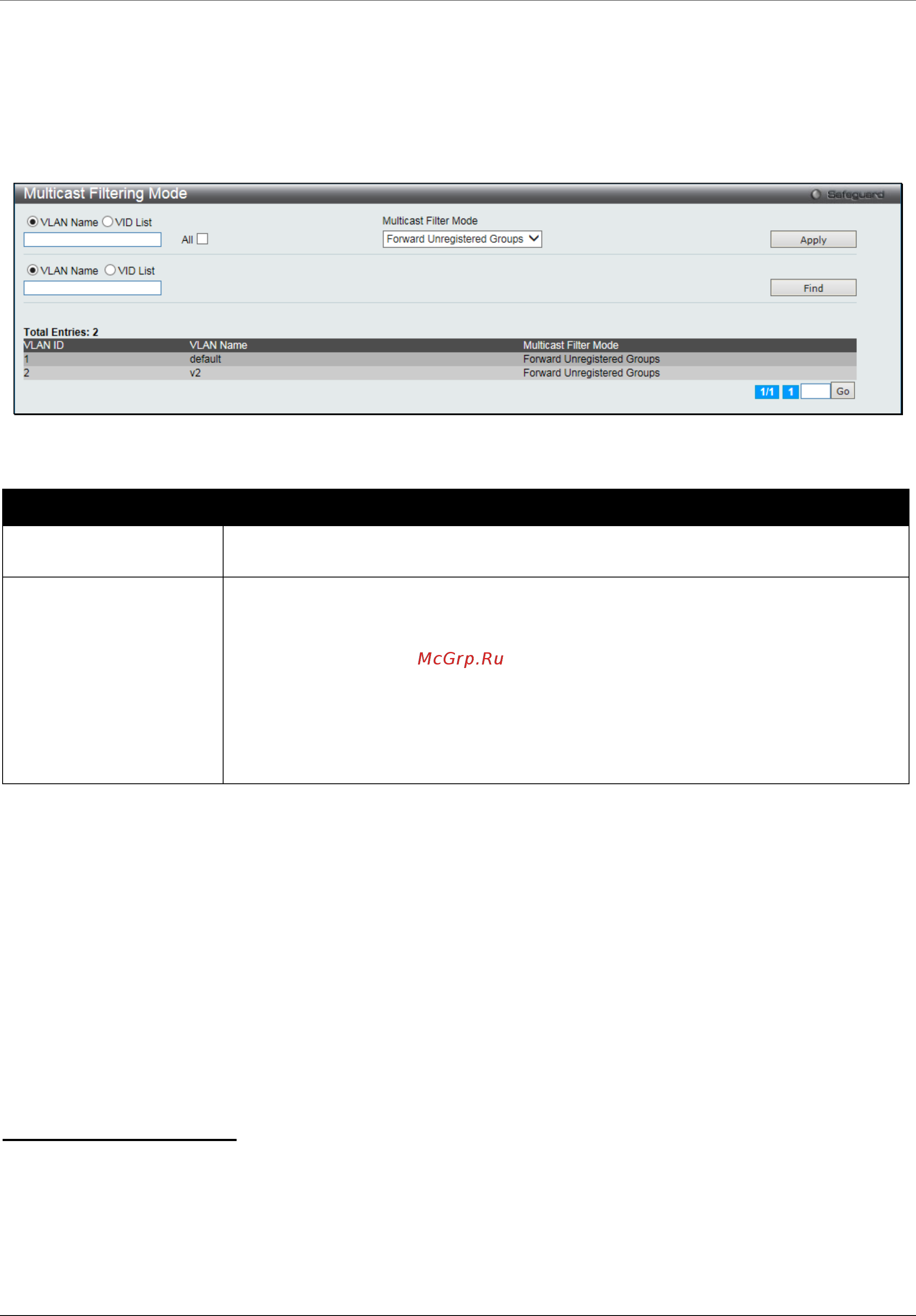

To view the following window, click L2 Features > Multicast Filtering > Multicast Filtering Mode as shown below:

The VLAN to which the specified filtering action applies. Tick the All check box to

This drop-down menu allows you to select the action the Switch will take when it

Forward All Groups – This will instruct the Switch to forward all multicast packets to

Forward Unregistered Groups – The multicast packets whose destination is an

unregistered multicast group will be forwarded within the range of ports specified

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

ERPS Settings

ERPS (Ethernet Ring Protection Switching) is the first industry standard (ITU-T G.8032) for Ethernet ring protection

switching. It is achieved by integrating mature Ethernet operations, administration, and maintenance (OAM) *

functions and a simple automatic protection switching (APS) protocol for Ethernet ring networks. ERPS provides sub-

50ms protection for Ethernet traffic in a ring topology. It ensures that there are no loops formed at the Ethernet layer.

One link within a ring will be blocked to avoid Loop (RPL, Ring Protection Link). When the failure happens, protection

switching blocks the failed link and unblocks the RPL. When the failure clears, protection switching blocks the RPL

again and unblocks the link on which the failure is cleared.

coordinate the protection actions over the ring through RAPS VLAN (R-APS Channel).
