To view the following window, click QoS > Bandwidth Control > Queue Bandwidth Control Settings as shown

below:

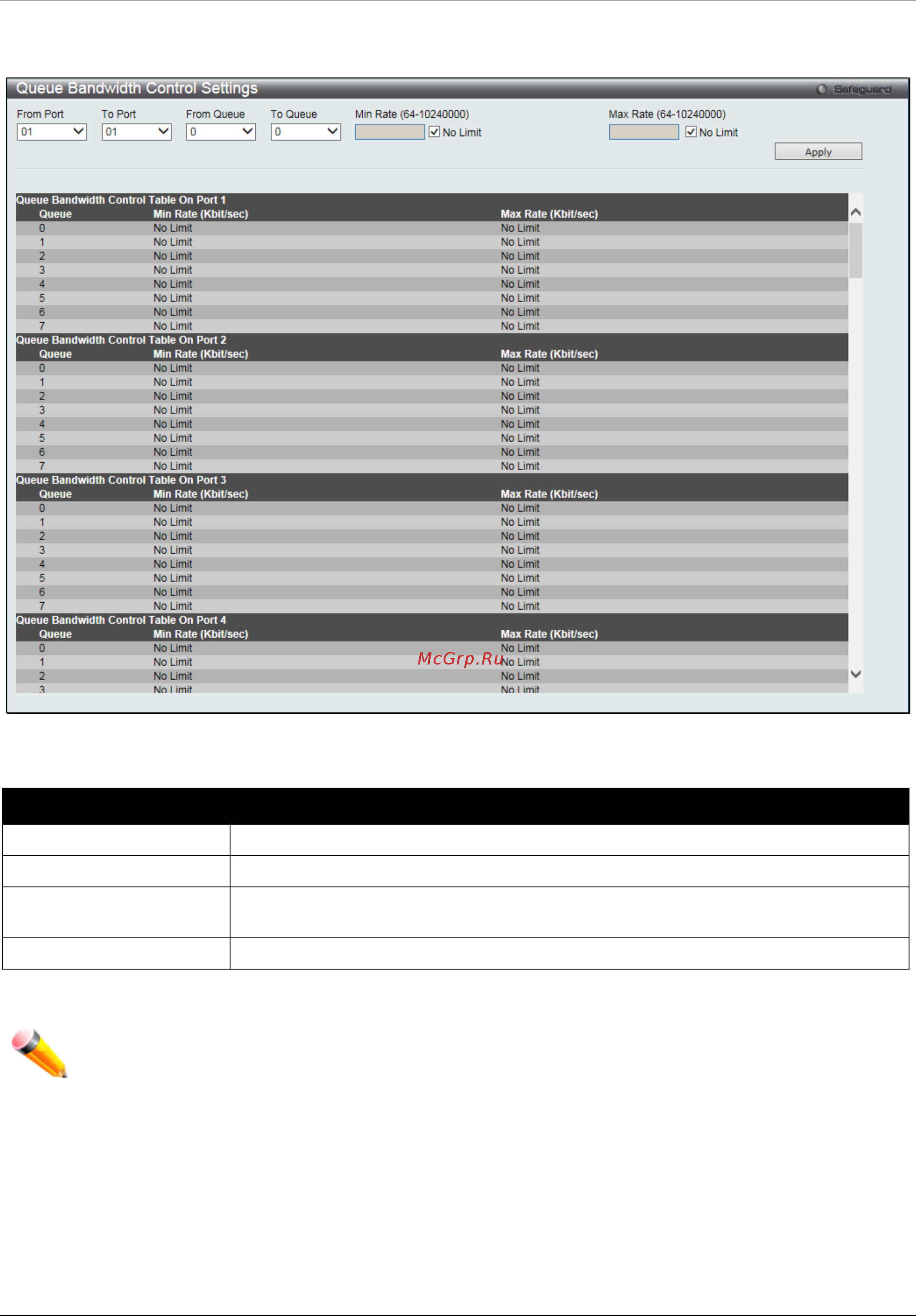

Figure 6-6 Queue Bandwidth Control Settings window

The fields that can be configured are described below:

Parameter Description

From Port / To Port

Use the drop-down menu to select the port range to use for this configuration.

From Queue / To Queue

Use the drop-down menu to select the queue range to use for this configuration.

Min Rate (64-10240000)

Specify the packet limit, in Kbps that the ports are allowed to receive. Tick the No

limit check box to have unlimited rate of packets received by the specified queue.

Max Rate (64-10240000)

Enter the maximum rate for the queue. For no limit select the No Limit option.

Click the Apply button to accept the changes made.

NOTE: The minimum granularity of queue bandwidth control is 64Kbit/sec. The system will adjust the

number to the multiple of 64 automatically.

Traffic Control Settings

On a computer network, packets such as Multicast packets and Broadcast packets continually flood the network as

normal procedure. At times, this traffic may increase due to a malicious end station on the network or a malfunctioning

device, such as a faulty network card. Thus, switch throughput problems will arise and consequently affect the overall

performance of the switch network. To help rectify this packet storm, the Switch will monitor and control the situation.
