DGS-1510/ME Series Metro Ethernet Switch Web UI Reference Guide
221

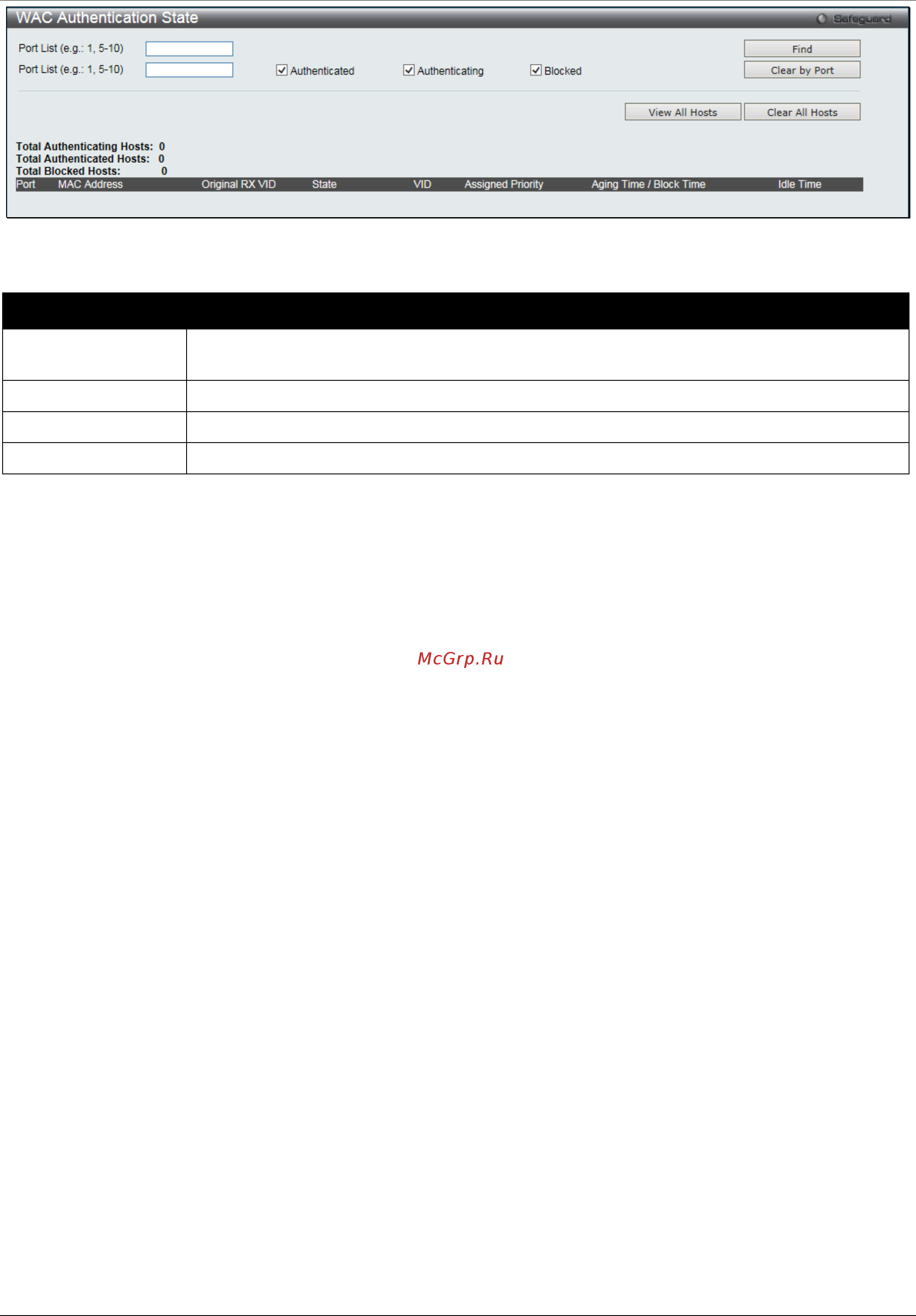

Figure 8-40 WAC Authentication State window
The fields that can be configured are described below:
Parameter Description
Port List
Enter the desired range of ports and tick the appropriate check box(s), Authenticated,
Authenticating, and Blocked.
Authenticated
Tick this check box to clear all authenticated users for a port.
Authenticating
Tick this check box to clear all authenticating users for a port.
Blocked
Tick this check box to clear all blocked users for a port.
Click the Find button to locate a specific entry based on the information entered.
Click the Clear by Port button to remove entry based on the port list entered.
Click the View All Hosts button to display all the existing entries.
Click the Clear All Hosts button to remove all the entries listed.
WAC Customize Page
This window is used to customize the authenticate page elements.
To view this window, click Security > Web-based Access Control (WAC) > WAC Customize Page as shown below:
