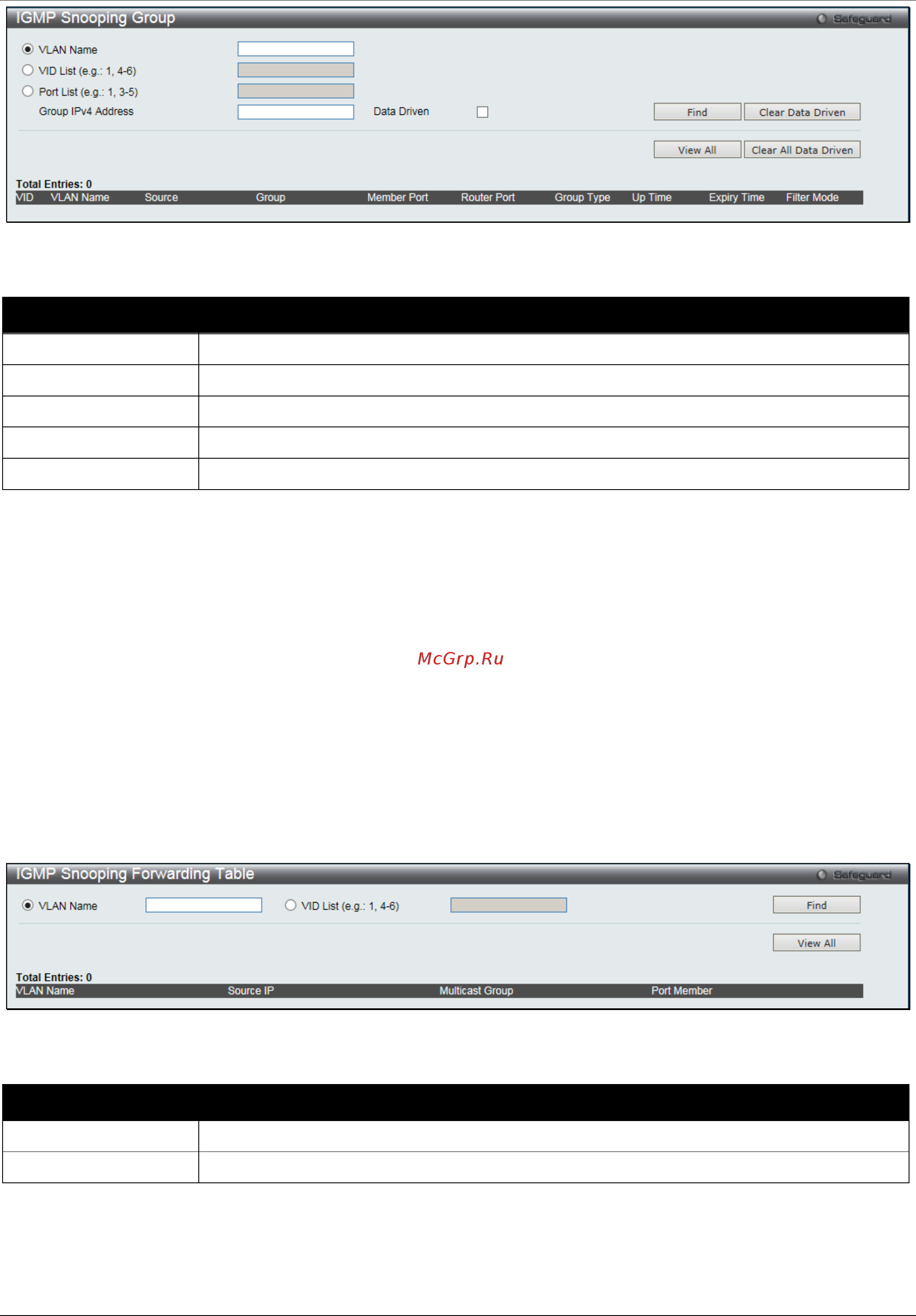

Figure 4-50 IGMP Snooping Group window

The fields that can be configured are described below:

Parameter Description

VLAN Name

The VLAN Name of the multicast group.

VID List

The VLAN ID list of the multicast group.

Port List

Enter the port number(s) used to find a multicast group.

Group IPv4 Address

Enter the IPv4 address.

Data Driven

If selected, only data driven groups will be displayed.

Click the Find button to locate a specific entry based on the information entered.

Click the Clear Data Driven button to delete the specific IGMP snooping group which is learned by the Data Driven

feature of the specified VLAN.

Click the View All button to display all the existing entries.

Click the Clear All Data Driven button to delete all IGMP snooping groups which is learned by the Data Driven

feature of specified VLANs.

IGMP Snooping Forwarding Table

This page displays the switch’s current IGMP snooping forwarding table. It provides an easy way for user to check the

list of ports that the multicast group comes from and specific sources that it will be forwarded to. The packet comes

from the source VLAN. They will be forwarded to the forwarding VLAN. The IGMP snooping further restricts the

forwarding ports.

To view the following window, click L2 Features > L2 Multicast Control > IGMP Snooping > IGMP Snooping

Forwarding Table as shown below:

Figure 4-51 IGMP Snooping Forwarding Table window
