DGS-1510/ME Series Metro Ethernet Switch Web UI Reference Guide

is enabled by default.

Click the Apply button to accept the changes made.

MAC-based VLAN Settings

Users can create new MAC-based VLAN entries, search and delete existing entries. When a static MAC-based VLAN

entry is created for a user, the traffic from this user will be able to be serviced under the specified VLAN.

To view the following window, click L2 Features > VLAN > MAC-based VLAN Settings as shown below:

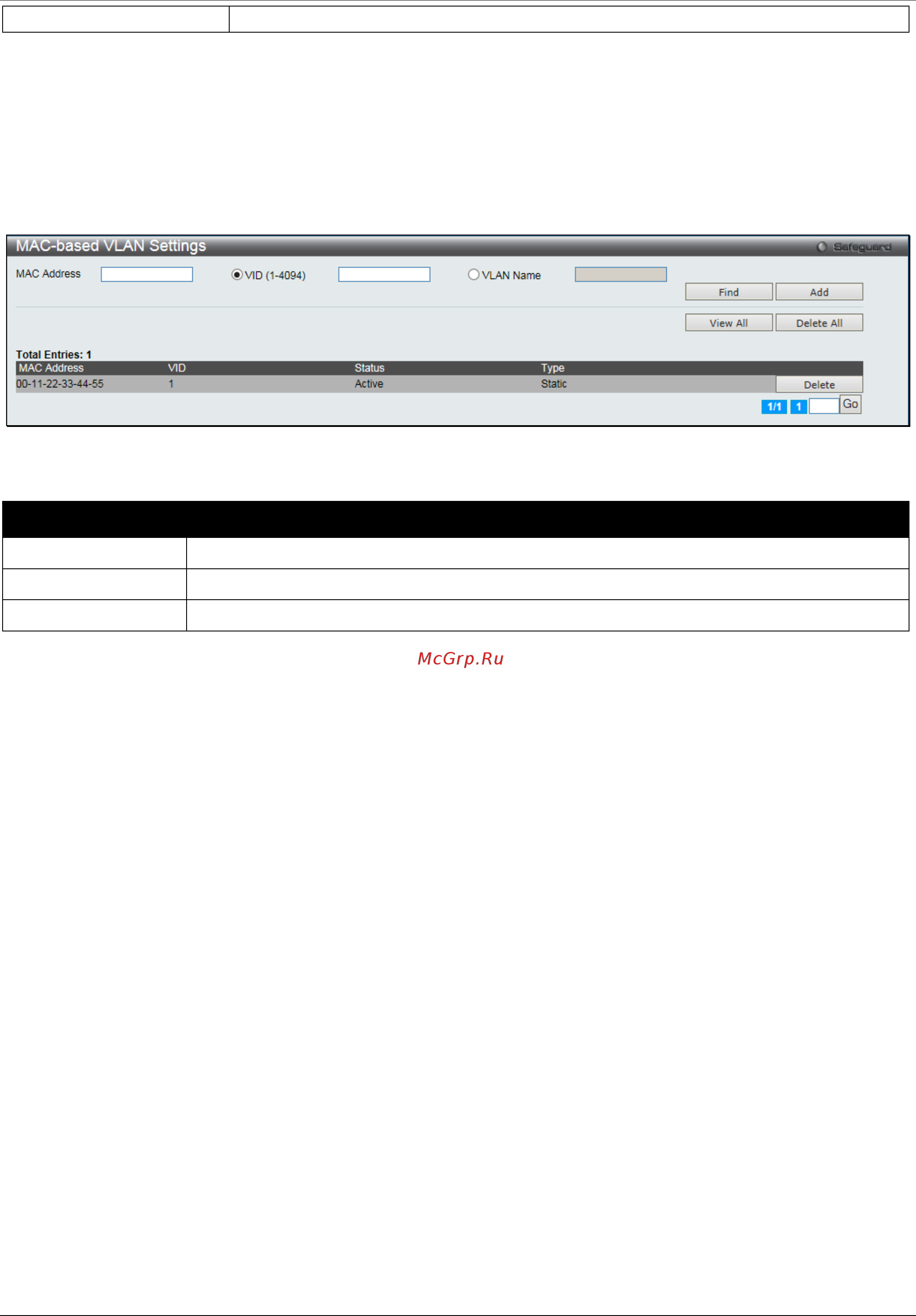

Figure 4-12 MAC-based VLAN Settings window

The fields that can be configured are described below:

Parameter Description

MAC Address

Specify the MAC address.

VID (1-4094)

Select this option and enter the VLAN ID.

VLAN Name

Select this option and enter the VLAN name of a previously configured VLAN.

Click the Find button to locate a specific entry based on the information entered.

Click the Add button to add a new entry based on the information entered.

Click the View All button to display all the existing entries.

Click the Delete All button to remove all the entries listed.

Click the Delete button to remove the specific entry.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

Private VLAN Settings

A private VLAN is comprised of a primary VLAN, up to one isolated VLAN, and a number of community VLANs. A

private VLAN ID is presented by the VLAN ID of the primary VLAN. The command used to associate or de-associate a

secondary VLAN with a primary VLAN.

A secondary VLAN cannot be associated with multiple primary VLANs. The untagged member port of the primary

VLAN is named as the promiscuous port. The tagged member port of the primary VLAN is named as the trunk port. A

promiscuous port of a private VLAN cannot be promiscuous port of other private VLANs. The primary VLAN member

port cannot be a secondary VLAN member at the same time, or vice versa. A secondary VLAN can only have the

untagged member port. The member port of a secondary VLAN cannot be member port of other secondary VLAN at

the same time. When a VLAN is associated with a primary VLAN as the secondary VLAN, the promiscuous port of the

primary VLAN will behave as the untagged member of the secondary VLAN, and the trunk port of the primary VLAN

will behave as the tagged member of the secondary VLAN. A secondary VLAN cannot be specified with advertisement.

Only the primary VLAN can be configured as a layer 3 interface. The private VLAN member port cannot be configured

with the traffic segmentation function.

This window allows the user to configure the private VLAN parameters.

To view the following window, click L2 Features > VLAN > Private VLAN Settings as shown below:
