DGS-1510/ME Series Metro Ethernet Switch Web UI Reference Guide
59
Telnet Settings
Users can configure Telnet Settings on the Switch.
To view the following window, click Management > Telnet Settings as shown below:

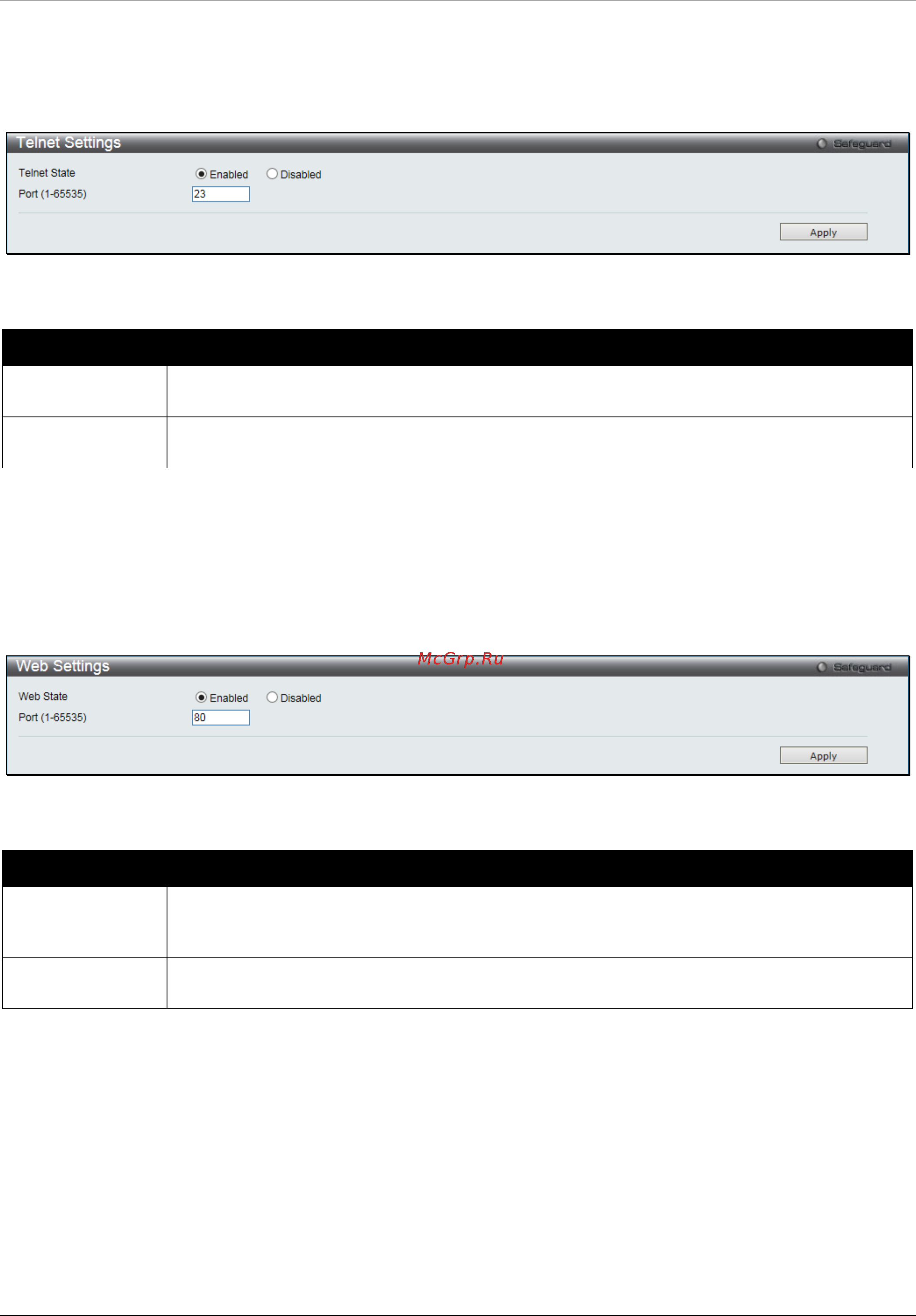

Figure 3-42 Telnet Settings window
The fields that can be configured are described below:
Parameter Description
Telnet State
Telnet configuration is Enabled by default. If you do not want to allow configuration of the
system through Telnet choose Disabled.
Port (1-65535)
The TCP port number used for Telnet management of the Switch. The “well-known” TCP port
for the Telnet protocol is 23.
Click the Apply button to accept the changes made.
Web Settings
Users can configure the Web settings on the Switch.
To view the following window, click Management > Web Settings as shown below:
Figure 3-43 Web Settings window
The fields that can be configured are described below:
Parameter Description
Web Status
Web-based management is Enabled by default. If you choose to disable this by clicking
Disabled, you will lose the ability to configure the system through the web interface as soon as
these settings are applied.
Port (1-65535)
The TCP port number used for web-based management of the Switch. The “well-known” TCP
port for the Web protocol is 80.
Click the Apply button to accept the changes made.
