DGS-1510/ME Series Metro Ethernet Switch Web UI Reference Guide
250

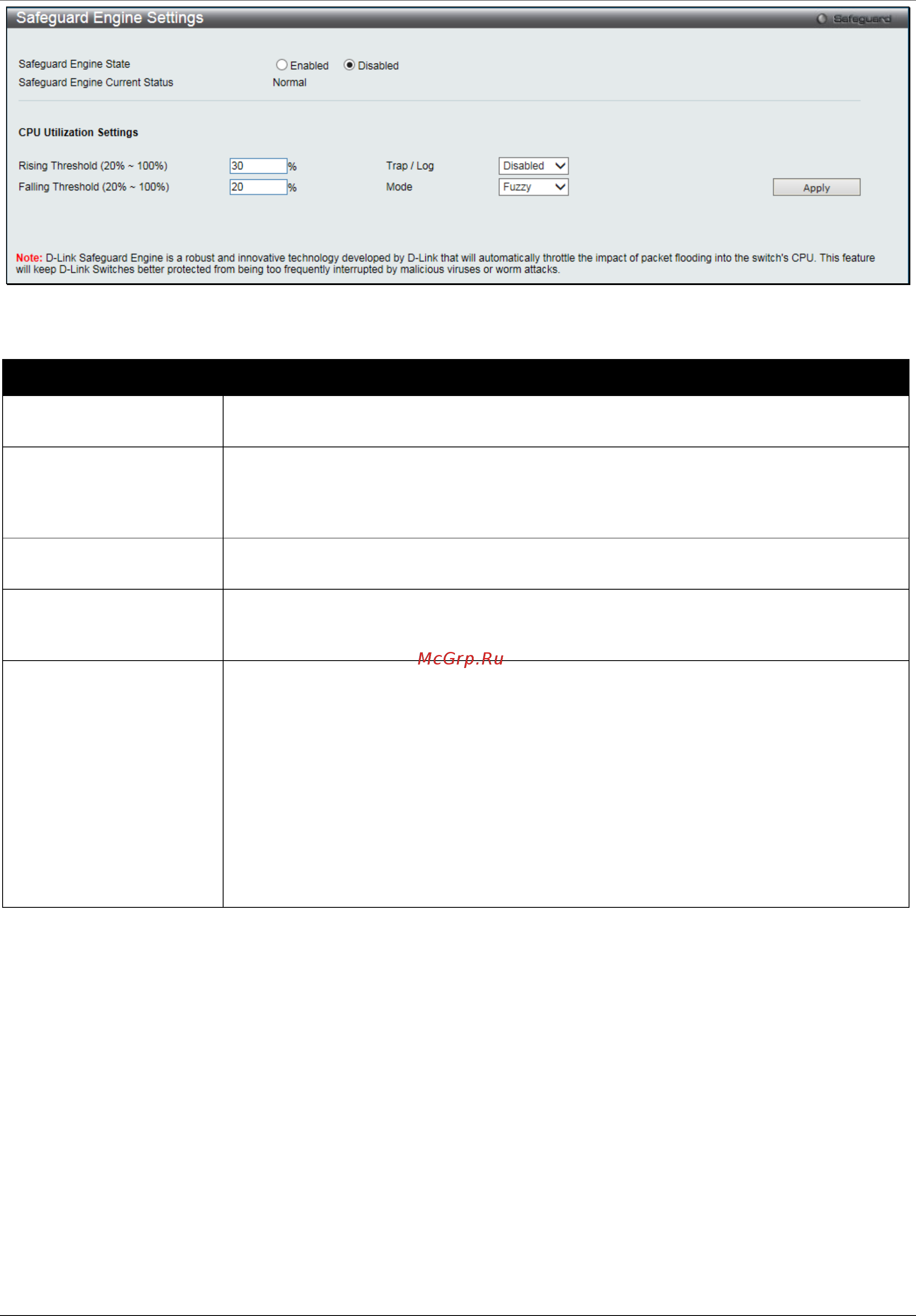

Figure 8-71 Safeguard Engine Settings window
The fields that can be configured are described below:
Parameter Description
Safeguard Engine State
Use the radio button to globally enable or disable Safeguard Engine settings for the
Switch.
Rising Threshold (20% -
100%)
Used to configure the acceptable level of CPU utilization before the Safeguard Engine
mechanism is enabled. Once the CPU utilization reaches this percentage level, the
Switch will move into Exhausted mode, based on the parameters provided in this
window.
Falling Threshold (20%
- 100%)
Used to configure the acceptable level of CPU utilization as a percentage, where the
Switch leaves the Safeguard Engine state and returns to normal mode.
Trap / Log
Use the drop-down menu to enable or disable the sending of messages to the
device’s SNMP agent and switch log once the Safeguard Engine has been activated
by a high CPU utilization rate.
Mode
Used to select the type of Safeguard Engine to be activated by the Switch when the
CPU utilization reaches a high rate. The user may select:
Fuzzy – If selected, the Switch will adjust the bandwidth dynamically depend on some
reasonable algorithm.
Strict – If selected, the Switch will stop receiving all ‘IP broadcast’ packets, packets
from un-trusted IP address and reduce the bandwidth of ‘ARP not to me’ packets (the
protocol address of target in ARP packet is the Switch itself) to the Switch. That
means no matter what reasons cause the high CPU utilization (may not be caused by
ARP storm), the Switch reluctantly processes the specified traffic mentioned in
previous in the Exhausted mode.
The default setting is Fuzzy mode.
Click the Apply button to accept the changes made.
DoS Attack Prevention Settings
This window is used to configure the Denial-of-Service (DoS) attach prevention settings.
To view this window, click Security > DoS Attack Prevention Settings as shown below:
