DGS-1510/ME Series Metro Ethernet Switch Web UI Reference Guide
76

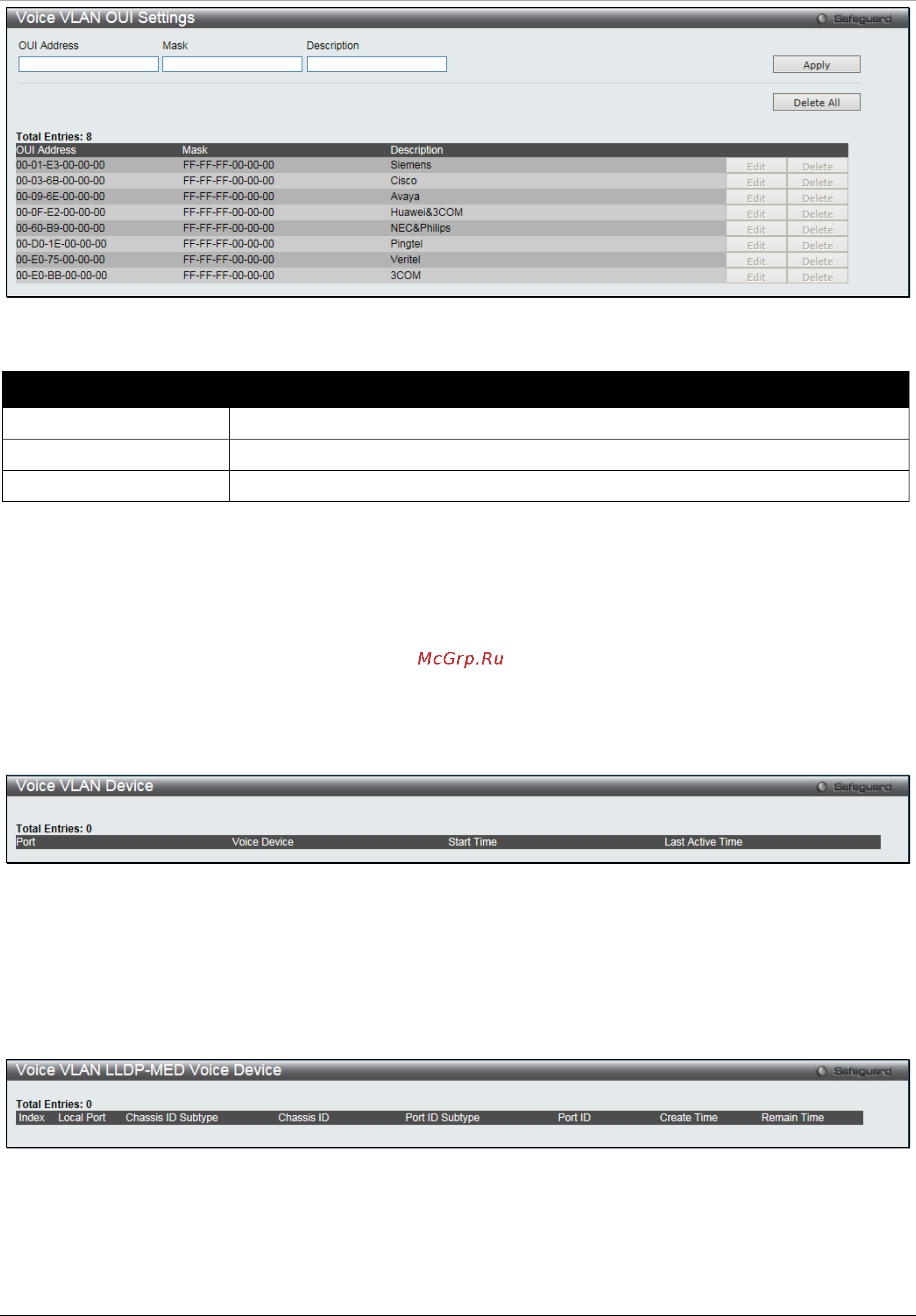

Figure 4-18 Voice VLAN OUI Settings window
The fields that can be configured are described below:
Parameter Description
OUI Address
User defined OUI MAC address.
Mask
User defined OUI MAC address mask.
Description
The description for the user defined OUI.
Click the Apply button to accept the changes made.
Click the Delete All button to remove all the entries listed.
Click the Edit button to re-configure the specific entry.
Click the Delete button to remove the specific entry.
Voice VLAN Device
This window is used to show voice devices that are connected to the ports. The start time is the time when the device
is detected on this port, the activate time is the latest time saw the device sending the traffic.
To view the following window, click L2 Features > VLAN > Voice VLAN > Voice VLAN Device as shown below:
Figure 4-19 Voice VLAN Device window
Voice VLAN LLDP-MED Voice Device
This window is used to show the voice devices being discovered by the LLDP-MED.
To view the following window, click L2 Features > VLAN > Voice VLAN > Voice VLAN LLDP-MED Voice as shown
below:
Figure 4-20 Voice VLAN LLDP-MED Voice Device window
