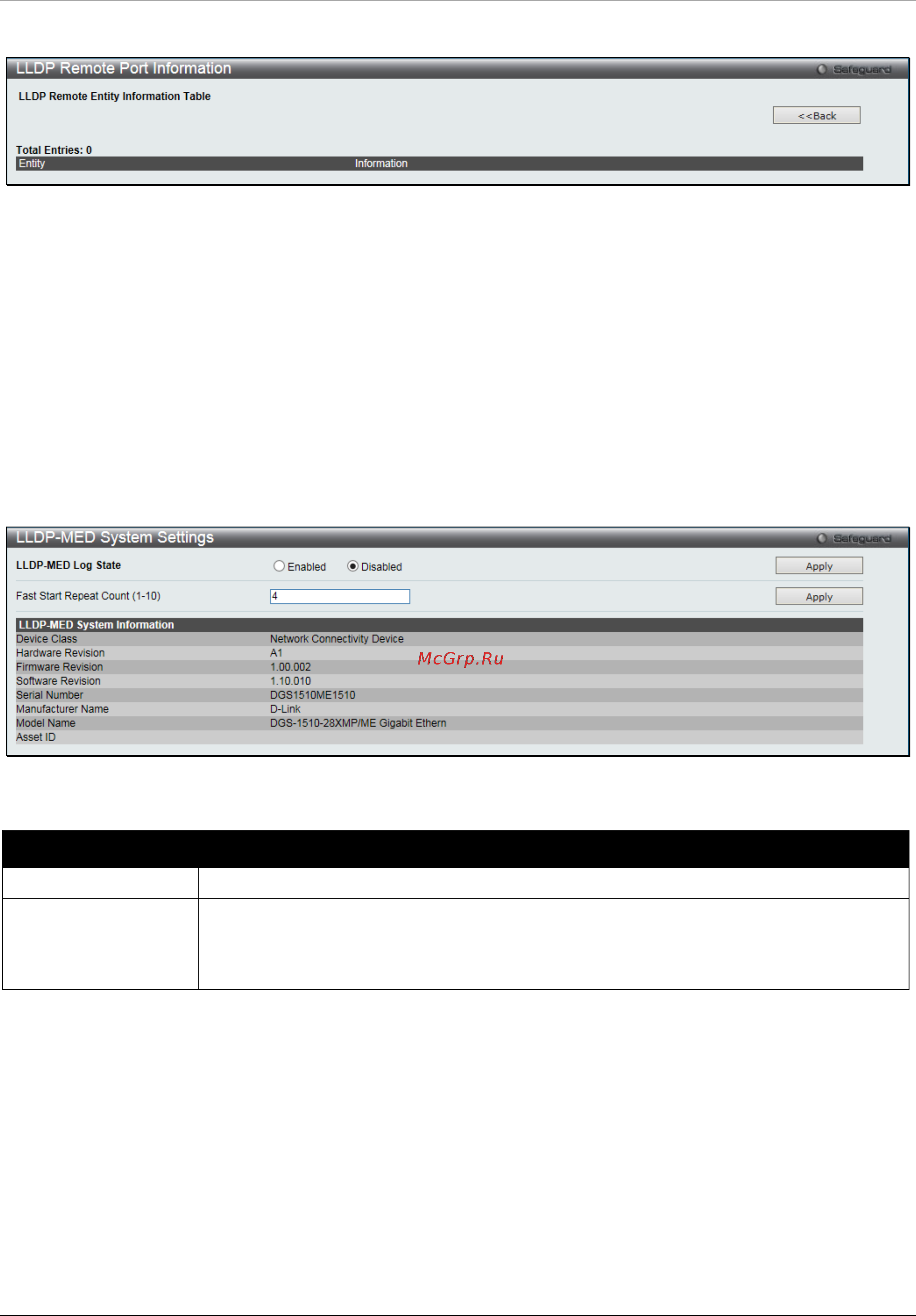

D-Link DGS-1510-28XMP/ME [141/342] Lldp med system settings
![D-Link DGS-1510-28XMP/ME [141/342] Lldp med system settings](/views2/1459150/page141/bg8d.png)
DGS-1510/ME Series Metro Ethernet Switch Web UI Reference Guide
132
After clicking the Show Normal button, the following page will appear:
Figure 4-96 LLDP Remote Port Information – Show Normal window
Click the <<Back button to return to the previous page.
LLDP-MED
LLDP-MED System Settings
This window is used to configure the LLDP-MED log state and the fast start repeat count, and display the LLDP-MED
system information.
To view the following window, click L2 Features > LLDP > LLDP-MED > LLDP-MED System Settings as shown
below:
Figure 4-97 LLDP-MED System Settings window
The fields that can be configured are described below:
Parameter Description
LLDP-MED Log State
Click to enable or disable the log state of LLDP-MED events.
Fast Start Repeat
Count (1-10)
Enter a value between 1 and 10 for the fast start repeat count. When an LLDP-MED
Capabilities TLV is detected for an MSAP identifier not associated with an existing LLDP
remote system MIB, then the application layer shall start the fast start mechanism and set
the ‘medFastStart’ timer to ‘medFastStartRepeatCount’ times 1. The default value is 4.
Click the Apply button to accept the changes made for each individual section.
LLDP-MED Port Settings
This window is used to enable or disable transmitting LLDP-MED TLVs.
To view the following window, click L2 Features > LLDP > LLDP-MED > LLDP-MED Port Settings as shown below:
