DGS-1510/ME Series Metro Ethernet Switch Web UI Reference Guide

120

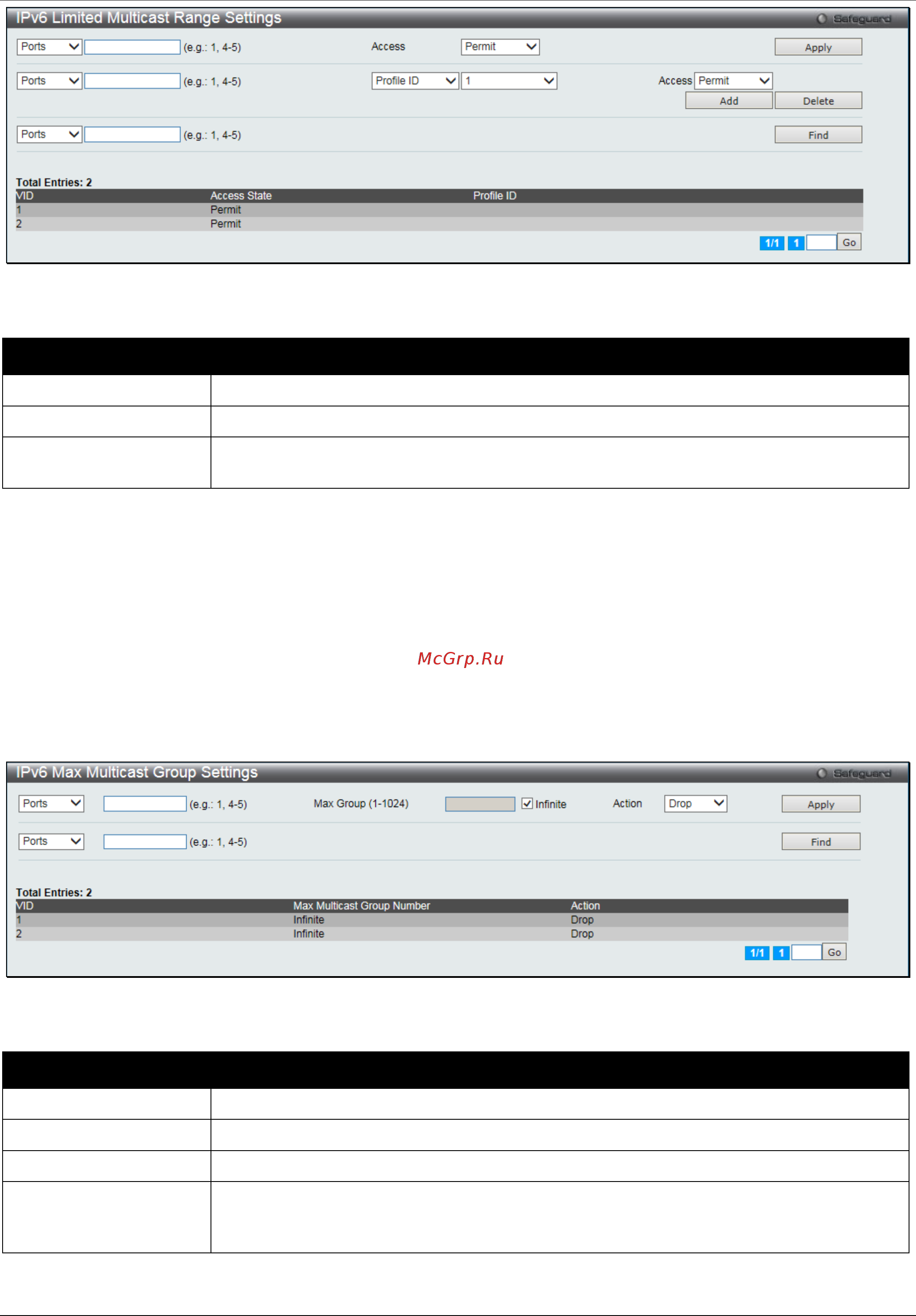

Figure 4-79 IPv6 Limited Multicast Range Settings window

The fields that can be configured are described below:

Parameter Description

Ports / VID List

Select the appropriate port(s) or VLAN IDs used for the configuration here.

Access

Assign access permissions to the ports selected. Options listed are Permit and Deny.

Profile ID / Profile

Name

Use the drop-down menu to select the profile ID or profile name used and then assign

Permit or Deny access to them.

Click the Apply button to accept the changes made.

Click the Add button to add a new entry based on the information entered.

Click the Delete button to remove the specific entry.

Click the Find button to locate a specific entry based on the information entered.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

IPv6 Max Multicast Group Settings

Users can configure the ports and VLANs on the switch that will be a part of the maximum filter group, up to a

maximum of 1024.

Figure 4-80 IPv4 Max Multicast Group Settings window

The fields that can be configured are described below:

Parameter Description

Ports / VID List

Select the appropriate port(s) or VLAN IDs used for the configuration here.

Max Group (1-1024)

If the Infinite checkbox is not selected, the user can enter a Max Group value.

Infinite

Tick the check box to enable or disable the use of the Infinite value.

Action

Use the drop-down menu to select the appropriate action for this rule. The user can

select Drop to initiate the drop action or the user can select Replace to initiate the

replace action.

Click the Apply button to accept the changes made.

Click the Find button to locate a specific entry based on the information entered.
