DGS-1510/ME Series Metro Ethernet Switch Web UI Reference Guide
260

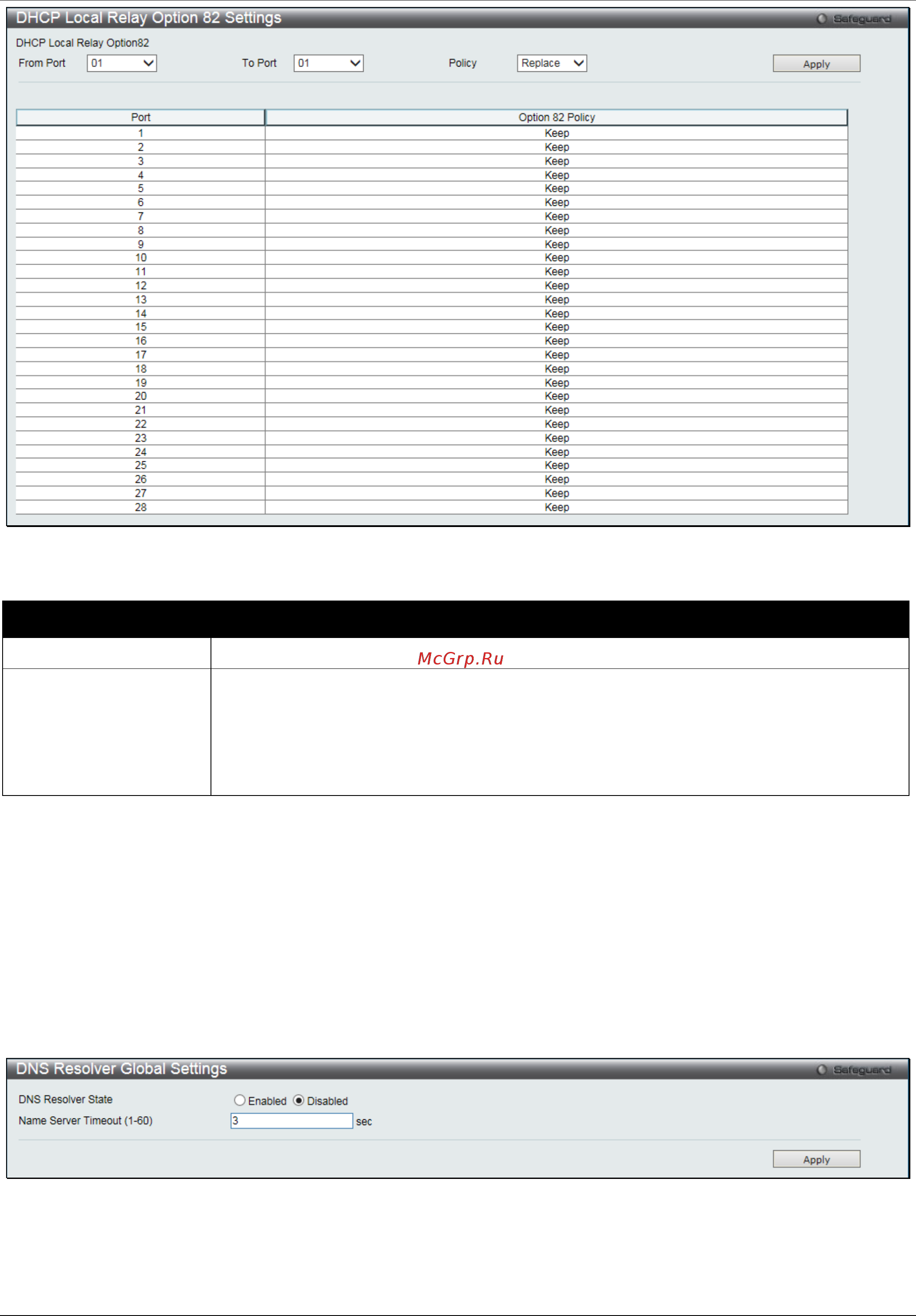

Figure 9-10 DHCP Local Relay Option 82 Settings window
The fields that can be configured are described below:
Parameter Description
From Port / To Port
Use the drop-down menus to select a range of ports to use.
Policy
Select how to process the packets coming from the client side that have the option 82
field.
Replace – Replace the existing option 82 field in the packet.
Drop – Discard if the packet has option 82 field.
Keep – Retain the existing option 82 field in the packet.
Click the Apply button to accept the changes made.
DNS Resolver
DNS Resolver Global Settings
This window is used to configure the DNS Resolver global state of the switch.
To view this window, click Network Application > DNS Resolver > DNS Resolver Global Settings as shown below:
Figure 9-11 DNS Resolver Global Settings window
The fields that can be configured are described below:
