DGS-1510/ME Series Metro Ethernet Switch Web UI Reference Guide
130

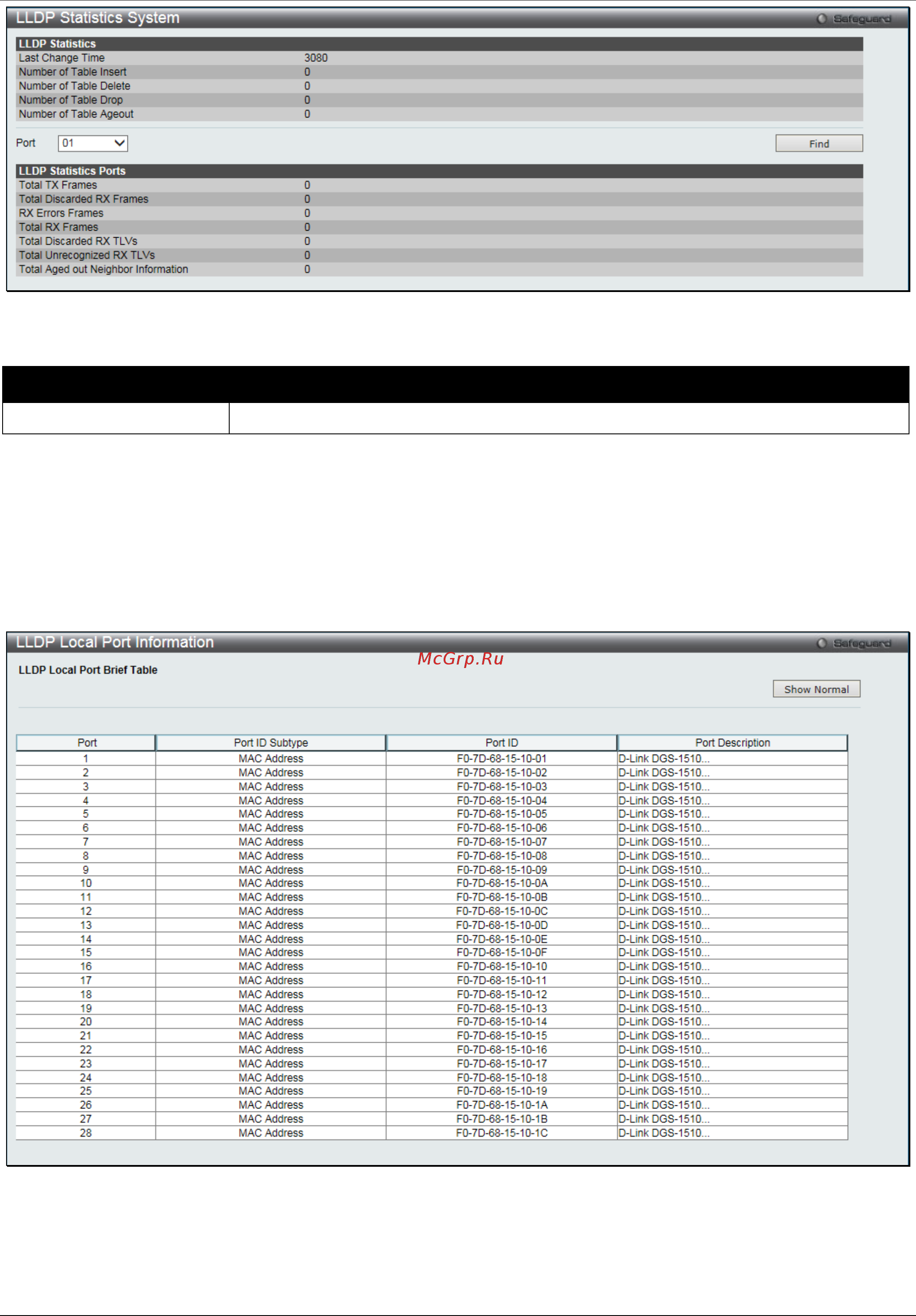

Figure 4-91 LLDP Statistics System window
The fields that can be configured are described below:
Parameter Description
Port
Use the drop-down menu to select a port.
Click the Find button to locate a specific entry based on the information entered.
LLDP Local Port Information
The LLDP Local Port Information page displays the information on a per port basis currently available for populating
outbound LLDP advertisements in the local port brief table shown below.
To view the following window, click L2 Features > LLDP > LLDP > LLDP Local Port Information as shown below:
Figure 4-92 LLDP Local Port Information window
To view the normal LLDP Local Port information page per port, click the Show Normal button.
After clicking the Show Normal button, the following page will appear:
