DGS-1510/ME Series Metro Ethernet Switch Web UI Reference Guide

Chapter 2 System Configuration

Device Information

System Information Settings

Port Configuration

PoE

Serial Port Settings

Warning Temperature Settings

System Log Configuration

Time Range Settings

Time Settings

User Accounts Settings

Command Logging Settings

Device Information

This window contains the main settings for all the major functions for the Switch. It appears automatically when you

log on to the Switch. To return to the Device Information window after viewing other windows, click the DGS-1510/ME

Series link.

The Device Information window shows the Switch’s MAC Address (assigned by the factory and unchangeable), the

Boot PROM Version, Firmware Version, Hardware Version, and many other important types of information. This is

helpful to keep track of PROM and firmware updates and to obtain the Switch’s MAC address for entry into another

network device’s address table, if necessary. In addition, this window displays the status of functions on the Switch to

quickly assess their current global status.

Many functions are hyper-linked for easy access to enable quick configuration from this window.

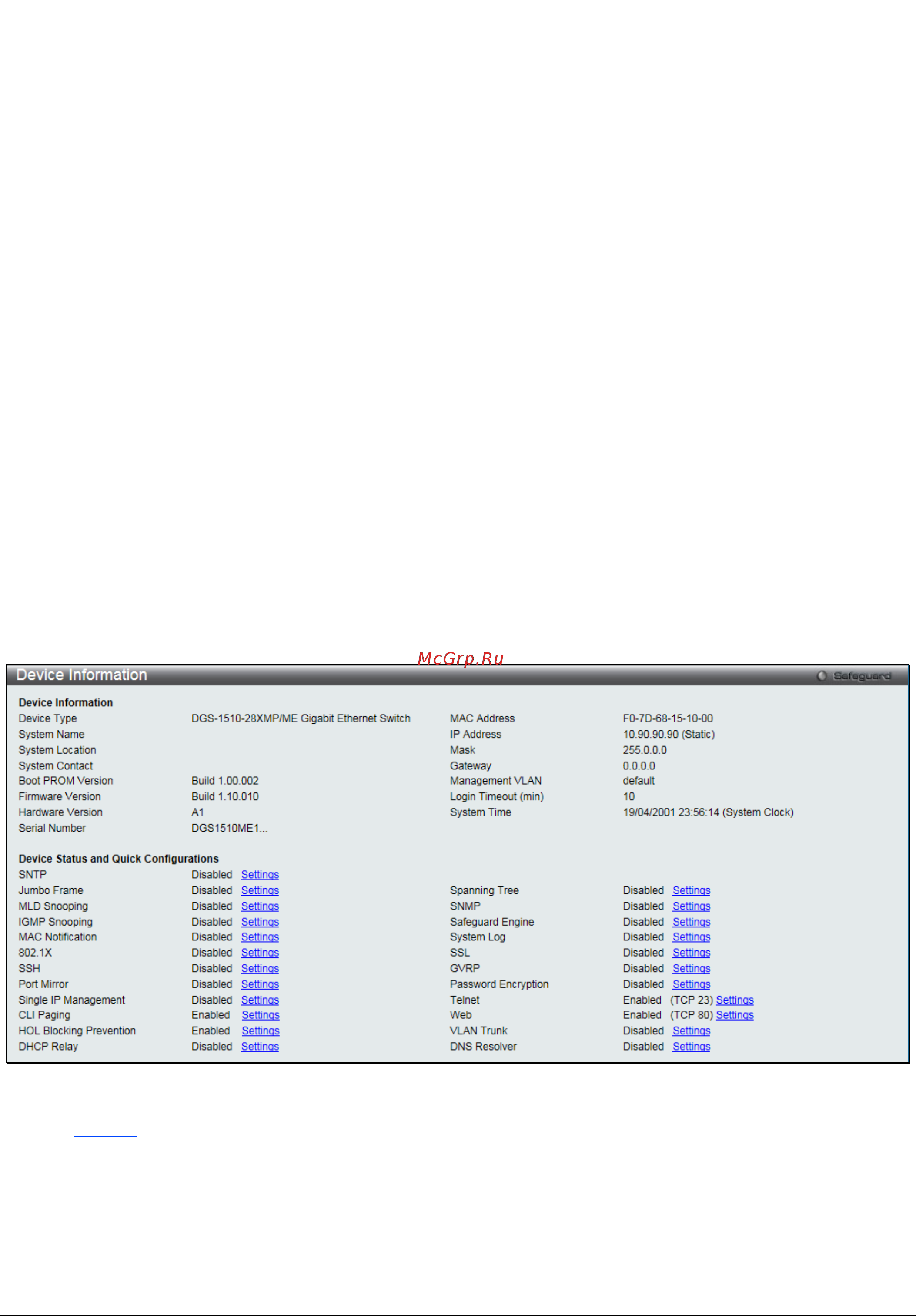

Figure 2-1 Device Information window

Click the Settings link to navigate to the appropriate feature page for configuration.

System Information Settings

The user can enter a System Name, System Location, and System Contact to aid in defining the Switch.

To view the following window, click System Configuration > System Information Settings as shown below:
