DGS-1510/ME Series Metro Ethernet Switch Web UI Reference Guide
303
Click the Delete All button to remove all the entries listed.
Click the Edit button to re-configure the specific entry.
Click the Delete button to remove the specific entry.
sFlow Counter Poller Settings
This window is used to configure the sFlow counter poller parameters. If the user wants to change the analyzer server
ID, he needs to delete the counter poller and create a new one.

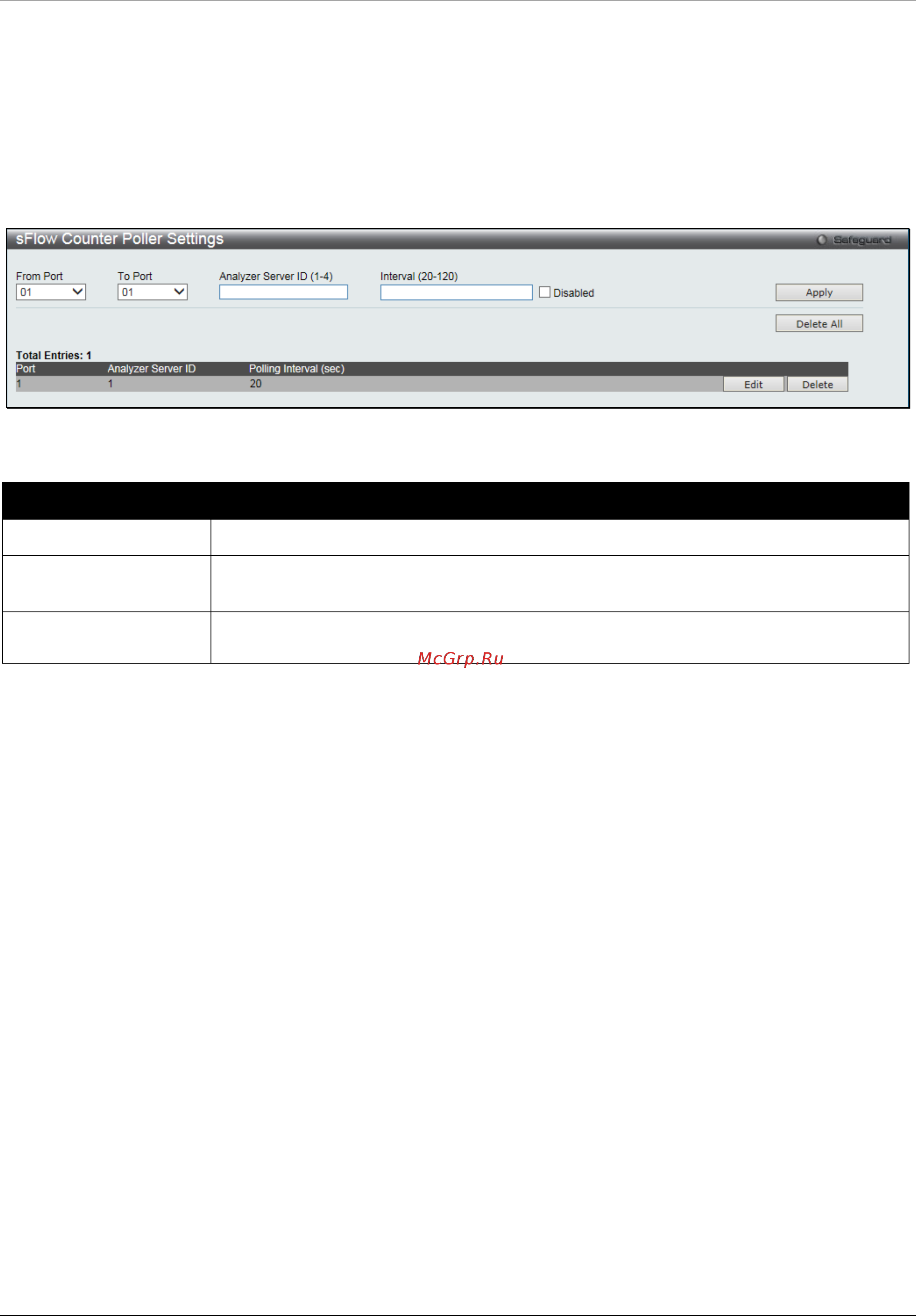

Figure 11-23 sFlow Counter Poller Settings window
The fields that can be configured are described below:
Parameter Description
From Port / To Port
Use the drop-down menus to specify the list of ports to be configured.
Analyzer Server ID (1-
4)
Specify the ID of a server analyzer where the packet will be forwarded.
Interval (20-120)
The maximum number of seconds between successive samples of the counters. Tick
the Disabled check box to disable the polling interval.
Click the Apply button to accept the changes made.
Click the Delete All button to remove all the entries listed.
Click the Edit button to re-configure the specific entry.
Click the Delete button to remove the specific entry.
Ping Test
Ping is a small program that sends ICMP Echo packets to the IP address you specify. The destination node then
responds to or “echoes” the packets sent from the Switch. This is very useful to verify connectivity between the Switch
and other nodes on the network.
To view this window, click Monitoring > Ping Test as shown below:
