DGS-1510/ME Series Metro Ethernet Switch Web UI Reference Guide

170

original value before being forwarded by the Switch.

For more information on priority queues, CoS queues and mapping for 802.1p, see

the QoS section of this manual.

Replace Priority

Tick this check box to replace the Priority value in the adjacent field.

Replace DSCP (0-63)

Select this option to instruct the Switch to replace the DSCP value (in a packet that

meets the selected criteria) with the value entered in the adjacent field. When an

ACL rule is added to change both the priority and DSCP of an IPv4 packet, only one

of them can be modified due to a chip limitation. Currently the priority is changed

when both the priority and DSCP are set to be modified.

Replace ToS Precedence

(0-7)

Specify that the IP precedence of the outgoing packet is changed with the new

value. If used without an action priority, the packet is sent to the default TC.

Time Range Name

Tick the check box and enter the name of the Time Range settings that has been

previously configured in the Time Range Settings window. This will set specific

times when this access rule will be implemented on the Switch.

Counter

Here the user can select the counter. By checking the counter, the administrator can

see how many times that the rule was hit.

Ports

When a range of ports is to be configured, the Auto Assign check box MUST be

ticked in the Access ID field of this window. If not, the user will be presented with an

error message and the access rule will not be configured. Ticking the All Ports check

box will denote all ports on the Switch.

VLAN Name

Specify the VLAN name to apply to the access rule.

VLAN ID

Specify the VLAN ID to apply to the access rule.

Click the Apply button to accept the changes made.

Click the <<Back button to discard the changes made and return to the previous page.

After clicking the Show Details button in the Access Rule List, the following page will appear:

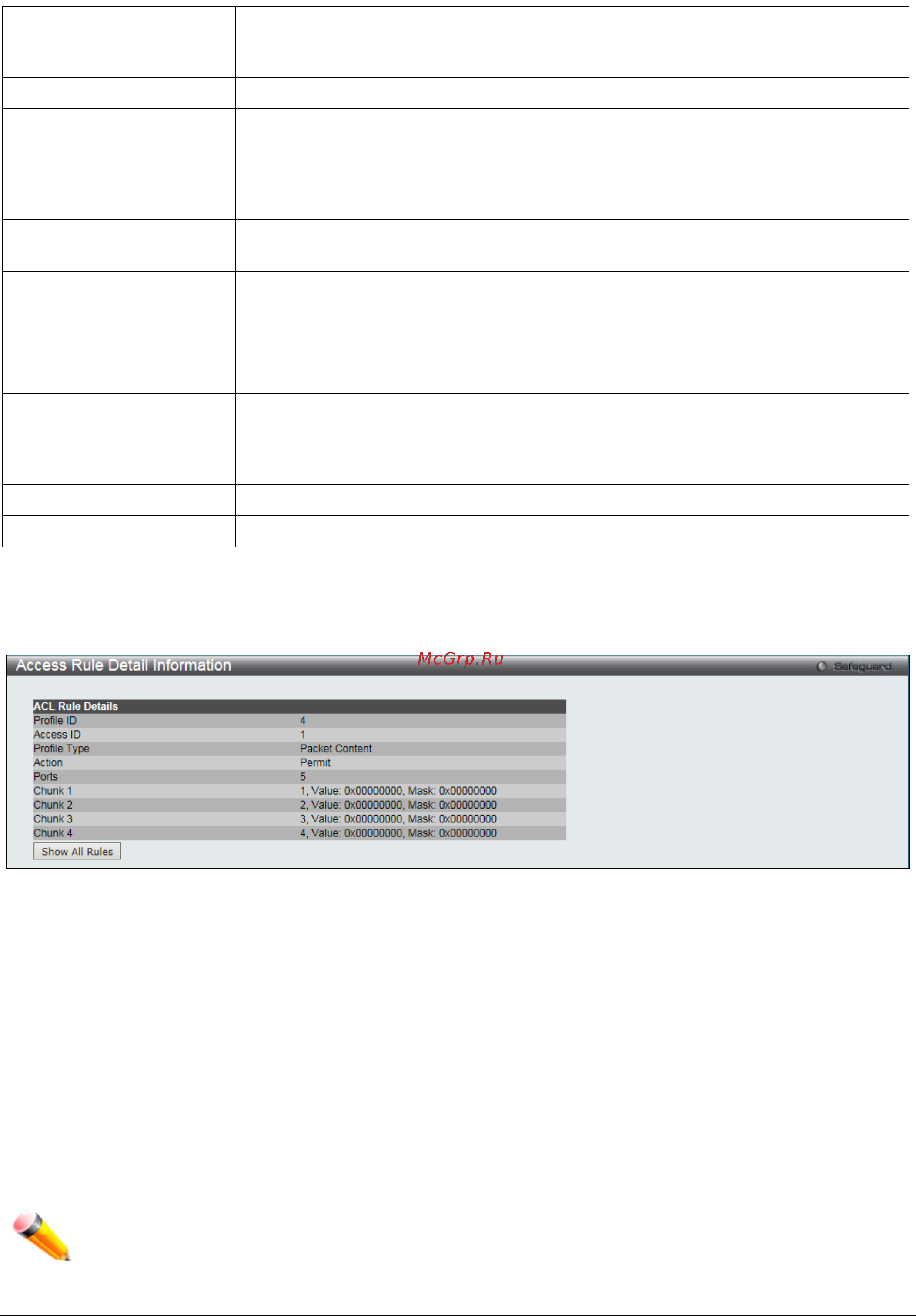

Figure 7-22 Access Rule Detail Information (Packet Content ACL)

Click the Show All Rules button to navigate back to the Access Rule List.

CPU Access Profile List

Due to a chipset limitation and needed extra switch security, the Switch incorporates CPU Interface filtering. This

added feature increases the running security of the Switch by enabling the user to create a list of access rules for

packets destined for the Switch’s CPU interface. Employed similarly to the Access Profile feature previously

mentioned, CPU interface filtering examines Ethernet, IPv4, IPv6 and Packet Content Mask packet headers destined

for the CPU and will either forward them or filter them, based on the user’s implementation. As an added feature for

the CPU Filtering, the Switch allows the CPU filtering mechanism to be enabled or disabled globally, permitting the

user to create various lists of rules without immediately enabling them.

NOTE: CPU Interface Filtering is used to control traffic access to the switch directly such as protocols

transition or management access. A CPU interface filtering rule won’t impact normal L2/3 traffic

forwarding. However, an improper CPU interface filtering rule may cause the network to become

unstable.
