D-Link DGS-1510-28XMP/ME [25/342] Port settings

DGS-1510/ME Series Metro Ethernet Switch Web UI Reference Guide

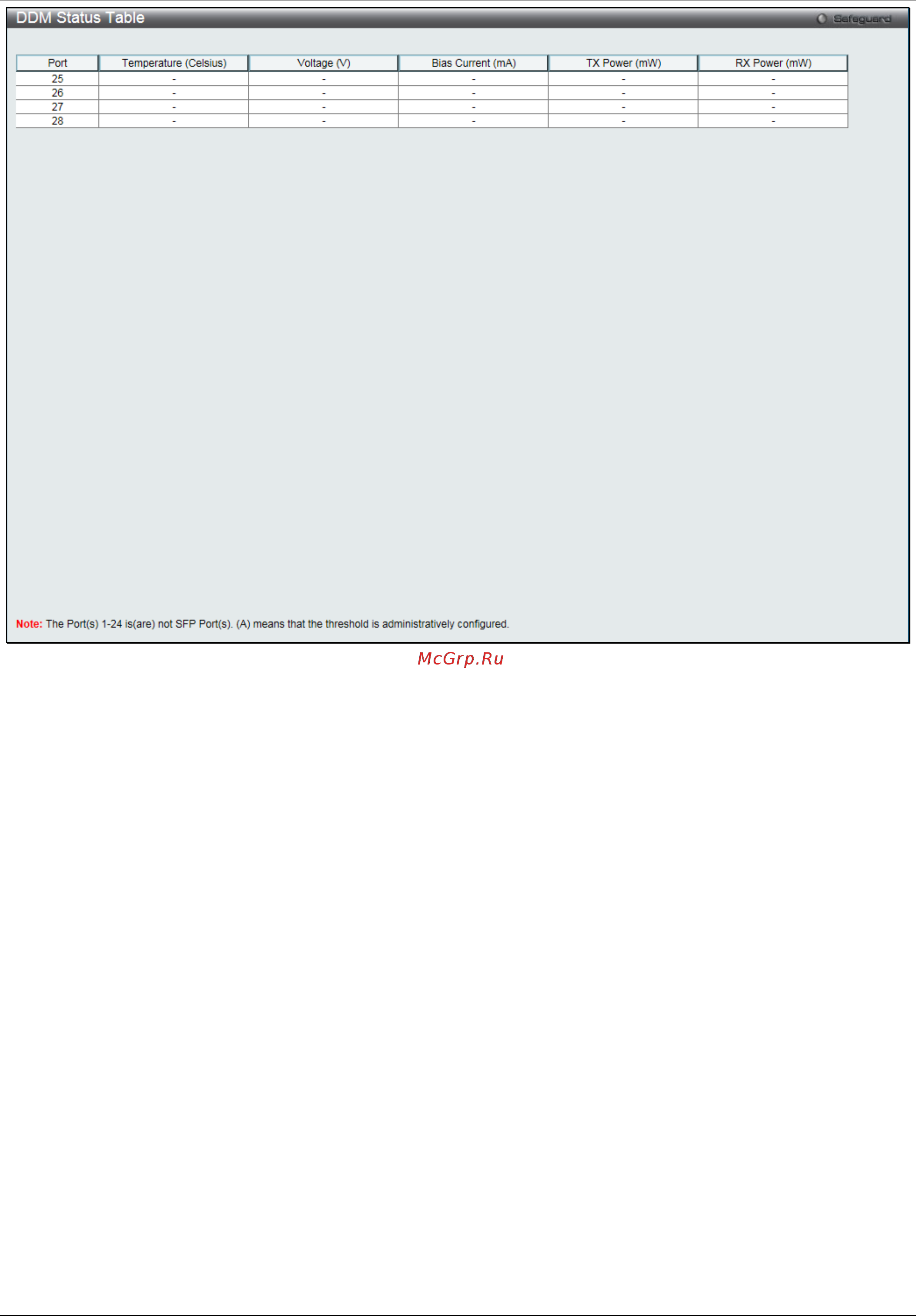

Figure 2-9 DDM Status Table window

Port Settings

This page used to configure the details of the switch ports.

To view the following window, click System Configuration > Port Configuration > Port Settings as shown below:
