Wiring Layout ESIE-0302
1–96 Part 1 – System Outline
3
1
1
4
5

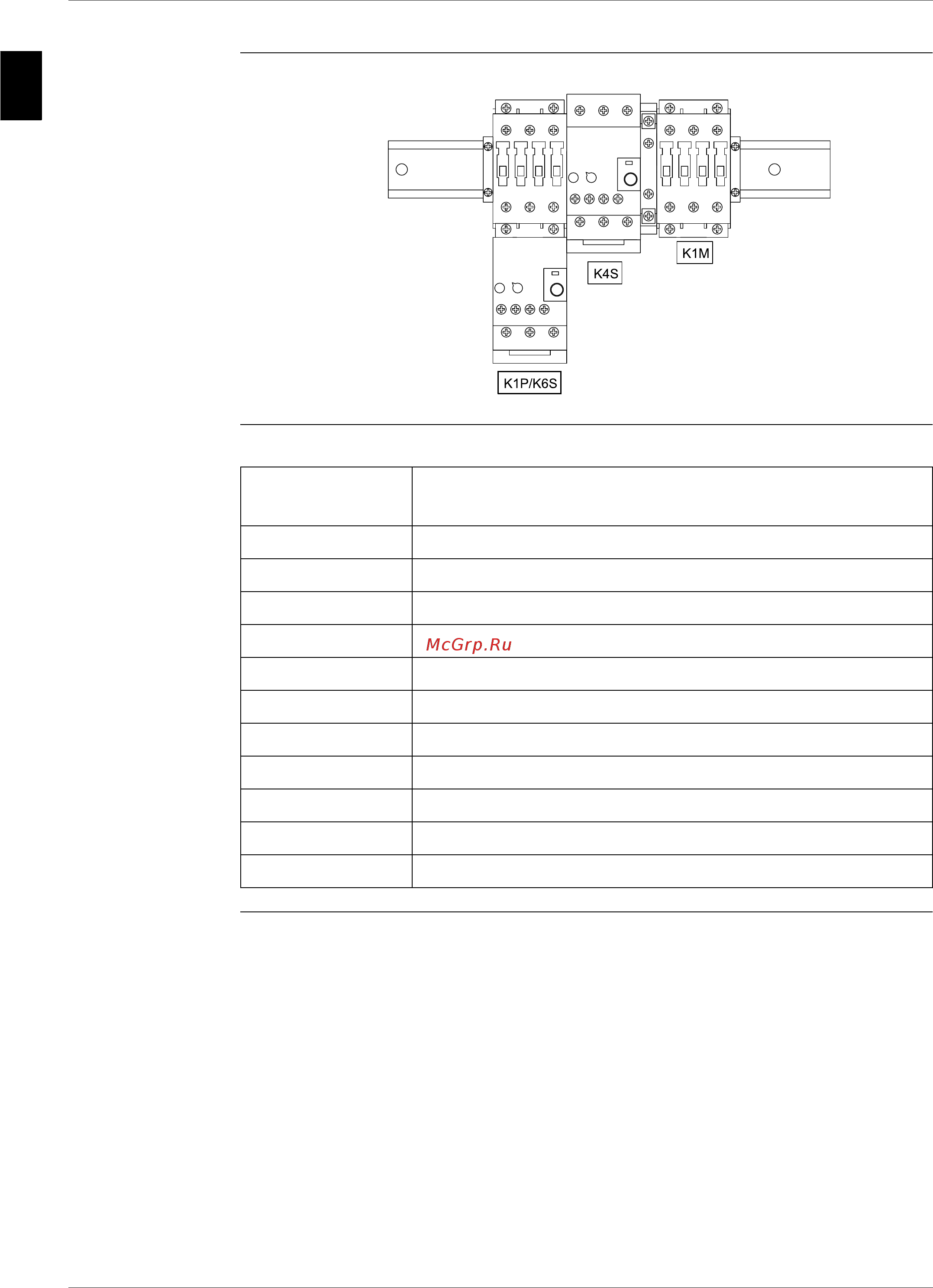

Single circuit layout The illustration below shows the switch box layout for a single circuit.
Components The table below describes the components.
Wiring diagram
symbol
Description
C1/C2/C3/C4 AC motor capacitors 12 µF
TR1/TR2 Power supply transformator
K1P Pump contactor
K6S Pump
K4S/K5S Circuit 1/circuit 2
K1M/K2M Compressor contactor circuit 1/circuit 2
S12M Main switch
S21P Pump switch (on front switch box)
1 I/O PCB
2 Main switch (on front switch box)
3 Auxiliary contact for K1M and K2M
