Pre-Test Run Checks ESIE-0302
4–8 Part 4 – Commissioning and Test Run
3
1
4
5

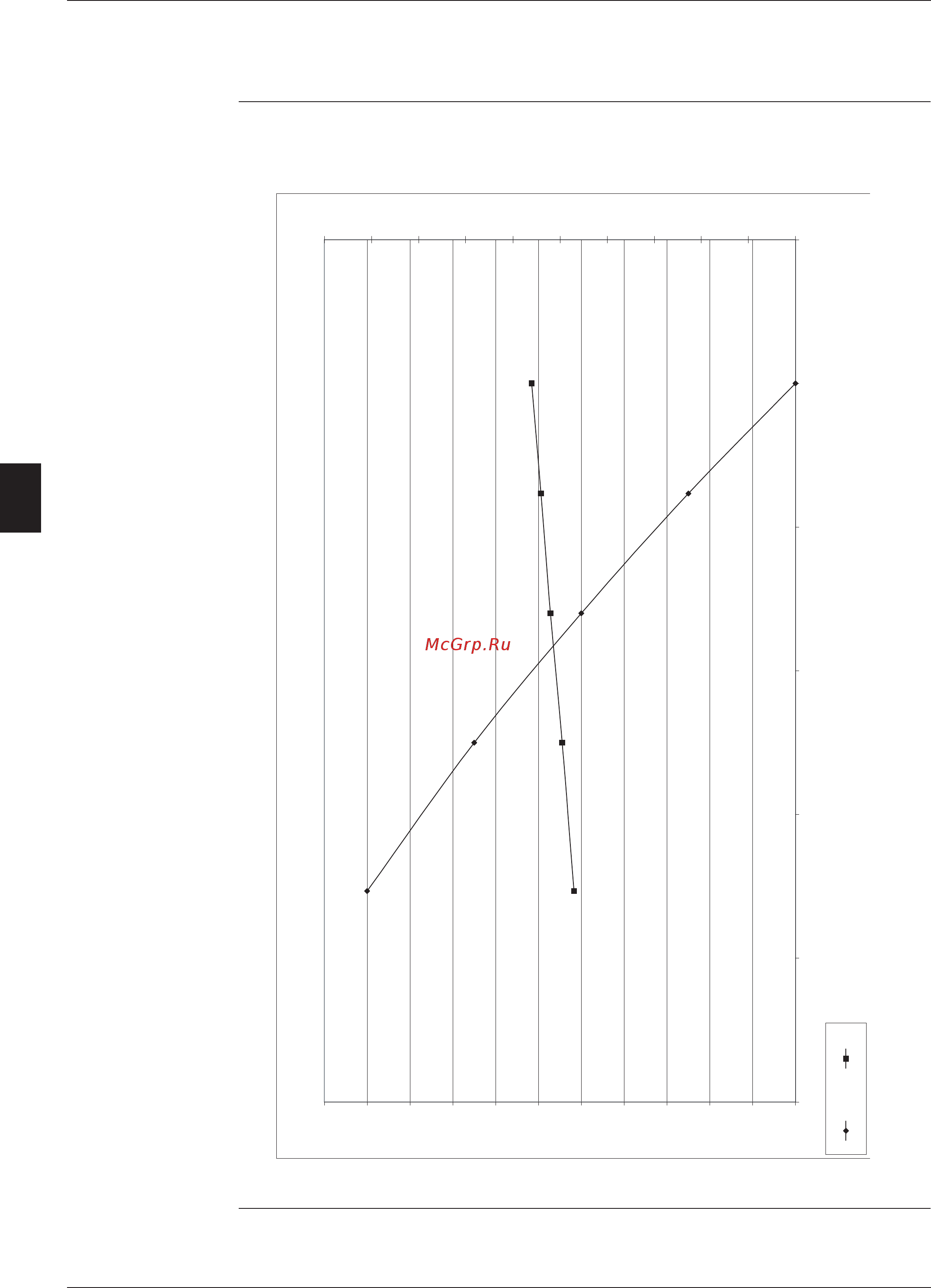

1.4 External Static Pressure: EUWAC5FZW1
Speed setting EUWAC5FZW1 has a direct driven fan. Choose the appropriate speed setting in the illustration below
depending on the installation.
0
10
20
30
40
50
60
70
80
90
100
110
1,00 1,05 1,10 1,15 1,20 1,25 1,30
AF (m
3
/sec)
ESP (Pa)
0,0
0,2
0,4
0,6
0,8
1,0
1,2
1,4
1,6
1,8
2,0
PI (kW)
ESP PI
ESP/PI - AF of EUWAC5FZW1
Values applicable for no headpressure
control working only.
