ESIE-0302 The Digital Controller
Part 2 – Functional Description 2–39
3
2
4
5
1
2.6 Reading or Adjusting Parameter Settings: the Programming Procedure
Introduction ■ When no buttons are pressed for 5 s, the display starts flashing.
■ You can exit at every step by leaving the buttons untouched for 1 min. The modifications are not
saved.
Reading or
adjusting

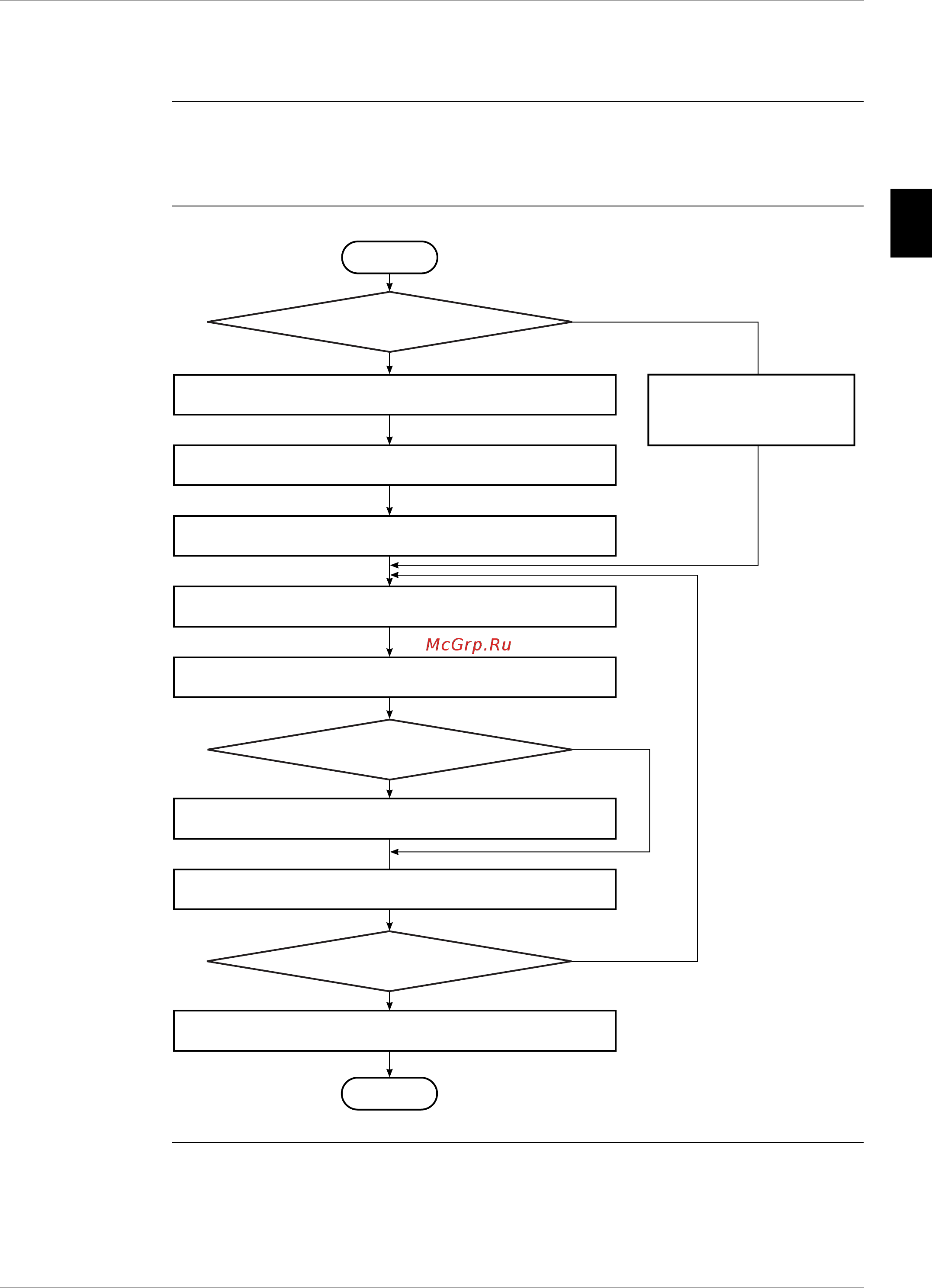

To read or adjust parameter settings, proceed as follows:
Do you want access to all parameters?
Start
Enter the user password
22 with the u and d keys.
Press
s.
Select the parameter using the
u and d keys.
Press
s to display the value.
Do you want to adjust the value?
Adjust the value using the
u and d keys.
Press
s to display the parameter.
Do you want to select another parameter?
Press
p to save and exit.
Stop
Press
s for 5 s to access
only direct parameters.
Press
p for 5 s.
No
No
Yes
Yes
Yes
No
