Daikin EUWAC5FZW [236/264] Setting of the flow switch
![Daikin EUWAC5FZW [236/264] Setting of the flow switch](/views2/1657184/page236/bgec.png)
ESIE-0302 Pre-Test Run Checks
Part 4 – Commissioning and Test Run 4–33
3
4
5
1
1.17 Setting of the Flow Switch
Functional
description
The flow switch protects the evaporator against freezing. It shuts down the unit when the flow of the
unit becomes lower than the minimum allowable flow of the unit.
For units with leaving water applications lower than 5˚C, the setting has to be done after installation.
This is because the set point of the flow switch is influenced by the type and concentration of
anti-freeze in the water.
Necessary parts The following parts are necessary in the water system to be able to do a correct setting of the flow
switch (included in P&B-models).
■ Pump
■ Pressure ports before and after pump
■ Waterflow regulating valve.

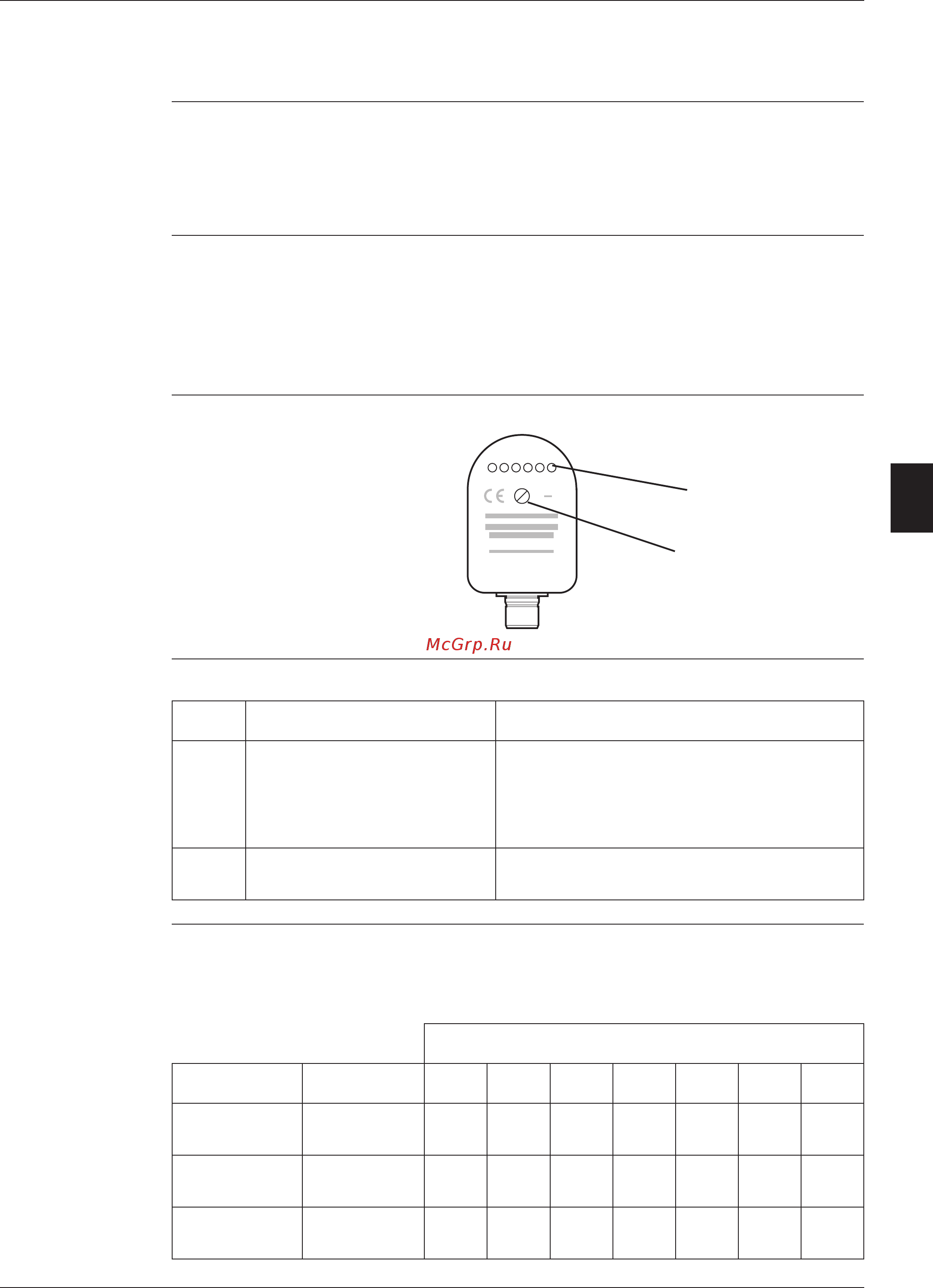

Flow switch The illustration below shows the flow switch.
Components The table below list the main components of the flow switch for regulation.
Static pressure/
set flow
The table below contains the static pressure over the pump corresponding with the set flow for
P&B-models.
For N-models depends the static pressure corresponding with the set flow of the selected pump (see
the data of the pump supplier).
1
2
No. Component Details
16 LEDs for visual flow indication
■ 4 green LEDs: degree of set point overrange
(1, 2, 3, 4 green LEDs lit)
■ 1 yellow LED: set point reached/overrange
■ 1 red LED: set point underrange.
2Potentiometer Remove protective screw cap to reach potentiome-
ter.
Unit (Hp)
Model Description 5 8 10 12 16 20 24
P&B
(standard)
Static pres-
sure (kPa)
250 239 232 223 277 268 307
P&B
(OP pump high)
Static pres-
sure (kPa)
428 410 397 382 505 486 459
N, P&B Set flow
(l/min)
19 31 38 46 62 76 92
