ESIE-0302 Piping Layout
Part 1 – System Outline 1–81
3
1
4
5

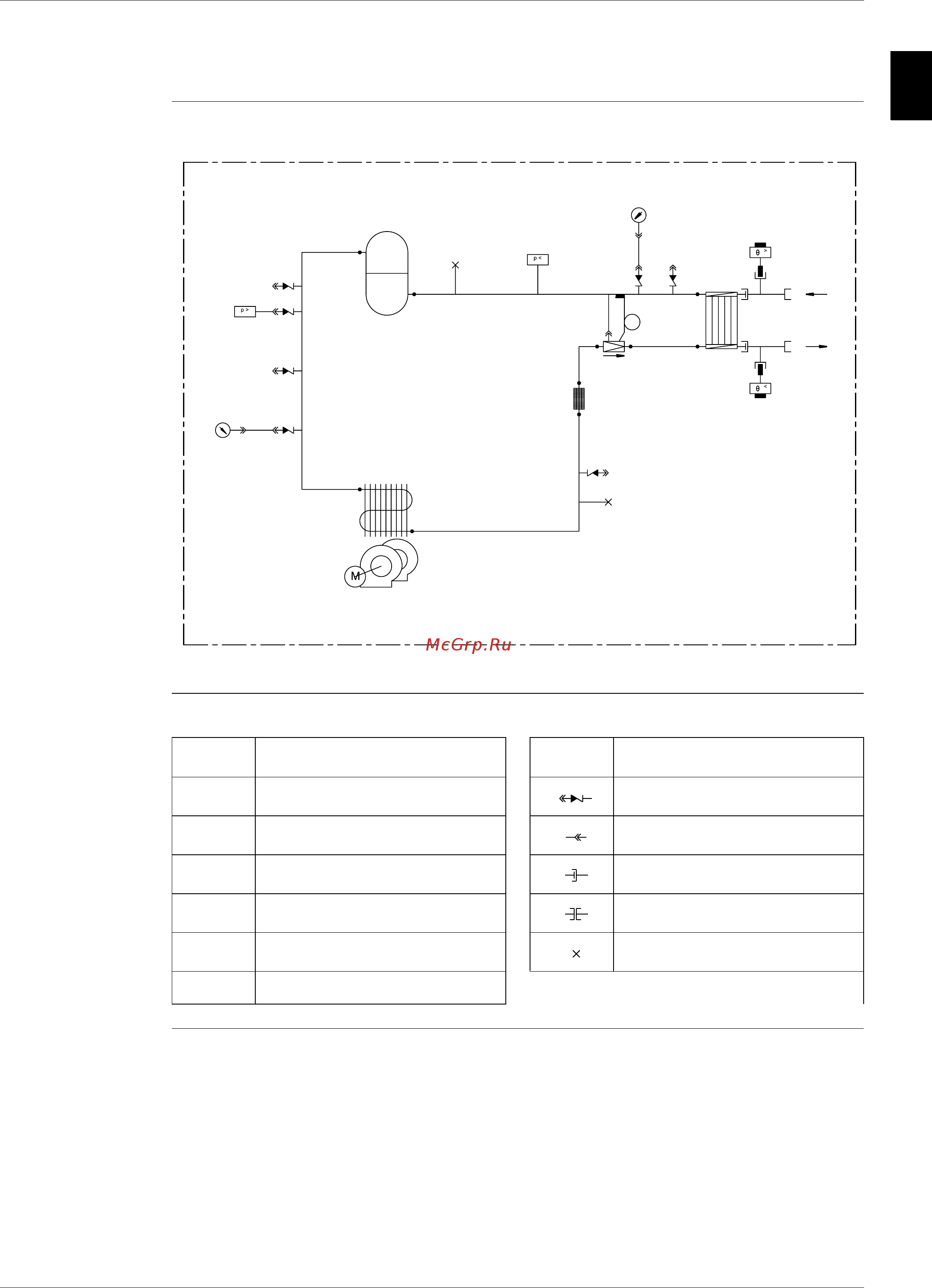

2.3 Functional Diagram Refrigeration Circuit: EUWAC5-10FZW1
Functional diagram The illustration below shows the functional diagram of the refrigeration circuit of EUWAC5~10FZW1.
It is also applicable to glycol applications.
Symbols The table below describes the symbols.
16
7
12
13
3
4
16
8
5
15
9
14
2
11
6
10
9
M11F
S4LP
S1HP
M1C
R3T
R4T
1
1” BSP
Water outlet
1” BSP
Water inlet
Symbol Description Symbol Description
M1C Compressor Check valve
S1HP High-pressure switch Flare connection
R3T Water inlet temperature sensor Screw connection
R4T Water outlet temperature sensor Flange connection
S4LP Low-pressure switch Pinched pipe
M11F Condensor fan motor
