ESIE-0302 General Outline
Part 1 – System Outline 1–55
3
1
4
5

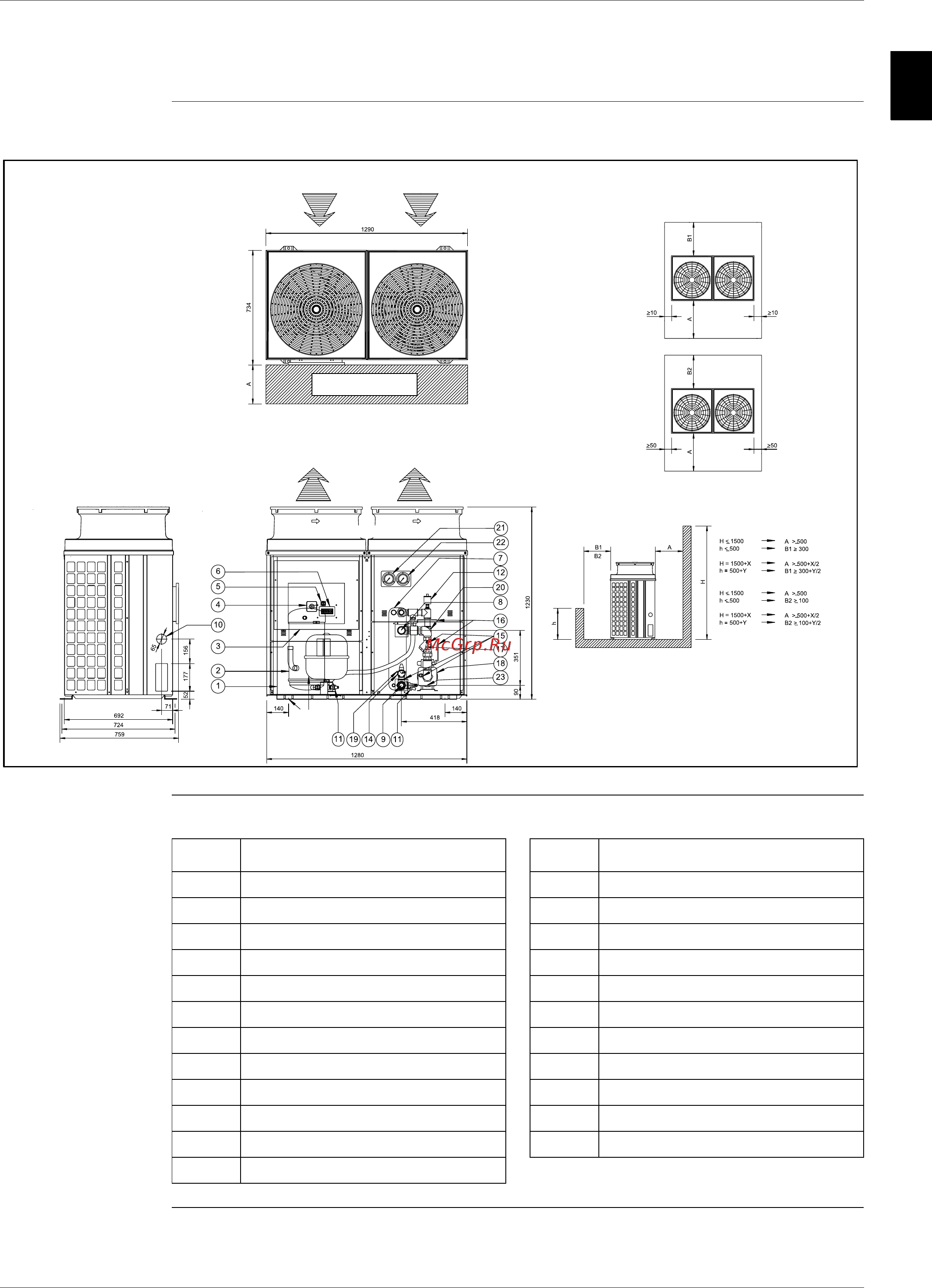

1.24 Outlook Drawing: EUWAP5-8KZW1
EUWAP5-8KZW1 The illustration below shows the outlook, the dimensions and the installation and service space of the
unit (mm).
Components The table below lists the components.
FREE SPACE B1/B2
FREE SPACE MIN 3m
CAUTION FOR FAN
FIXATION
4XØ15
SERVICE SPACE
No. Component No. Component
1 Air heat exchanger 13 Expansion vessel
2 Compressor 14 Safety valve + pressure gauge
3 Switch box 15 Pressure port
4 Main switch 16 Ball valve
5 Pump Switch 17 Water filter
6 Digital display controller 18 Pump
7 Evaporator 19 Regulation valve
8 Water IN connection: 1 1/4” BSP 20 Flow switch
9 Water OUT connection: 1 1/4” BSP 21 High pressure gauge (optional)
10 Power supply intake 22 Low pressure gauge (optional)
11 Drain 23 Pump drain
12 Air purge
