Pre-Test Run Checks ESIE-0302
4–24 Part 4 – Commissioning and Test Run
3
1
4
5
1.12 Water Pressure Drop through Evaporator: EUWAC5-8-10FZW1
Water pressure
drop

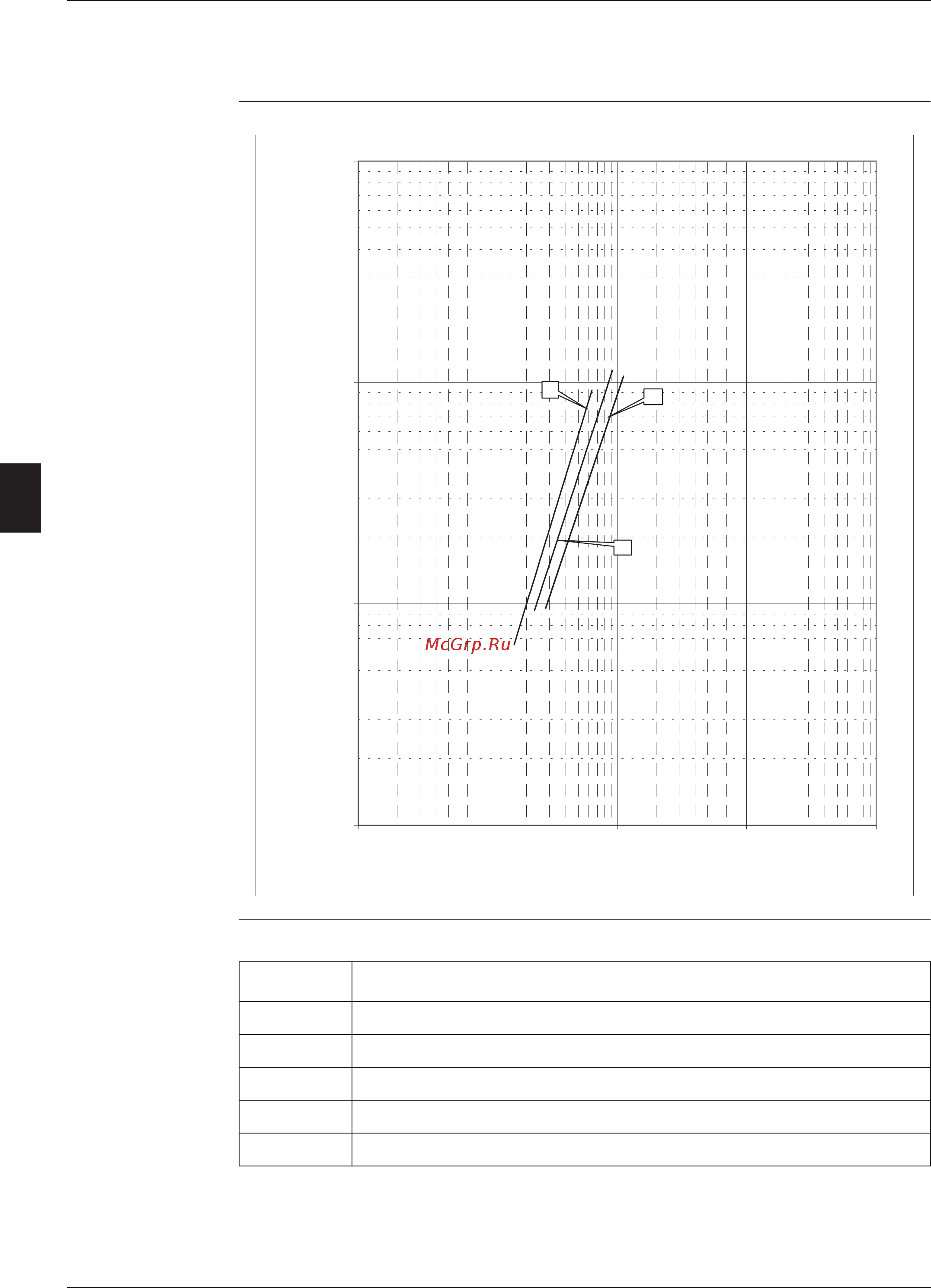

The illustration below shows the water pressure drop through evaporator for EUWAC5-8-10FZW1.
Symbols The table below describes the symbols.
Selecting a flow outside the curves can cause damage to or malfunction of the unit. See also
minimum and maximum allowed water flowrange. See “Technical Specifications:
EUWAC5-10FZW1” on page 5.
1,00
10,00
100,00
1000,00
110100 1000 10000
WFE [l/min]
PD [kPa]
1
3
2
Symbol Description
PD Pressure drop through evaporator
WFE Evaporator waterflow rate
(1) For EUWAC5FZW1
(2) For EUWAC8FZW1
(3) For EUWAC10FZW1
