ESIE-0302 General Outline
Part 1 – System Outline 1–53
3
1
4
5

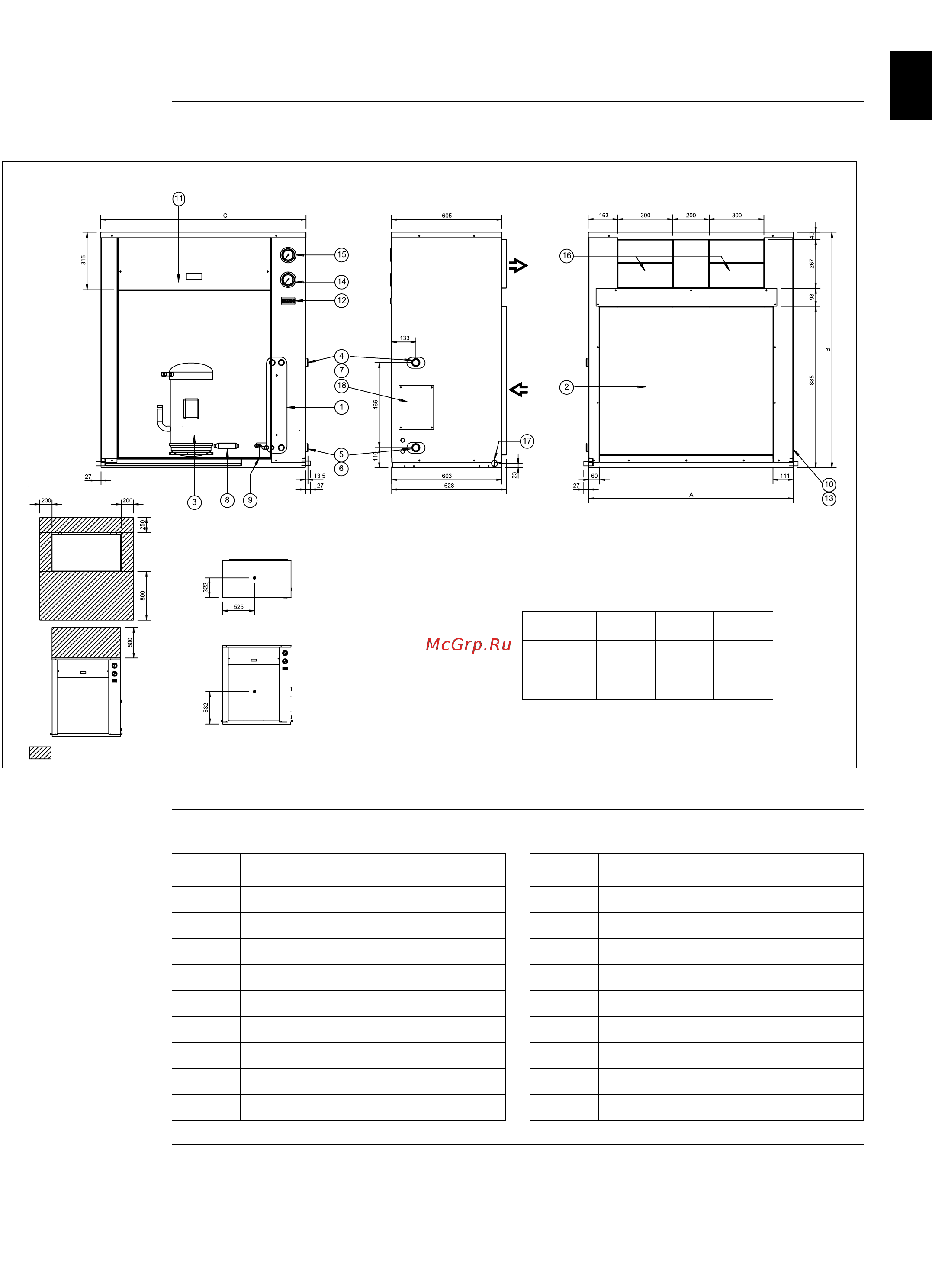

1.22 Outlook Drawing: EUWAC8-10FZW1
EUWAC8-10FZW1 The illustration below shows the outlook, the dimensions and the installation and service space of the
unit (mm).
Components The table below lists the components.
Centre of gravity
Required space around the unit for service and air intake
Item A B C
8HP 1122 1290 1125
10HP 1272 1395 1275
Air
Air
No. Component No. Component
1 Evaporator 10 Power supply intake
2 Condensor 11 Switch box
3 Compressor 12 Digital display controller
4 Chilled water in (
FBSP 1” ) 13 Field wiring intake
5 Chilled water out (
FBSP 1” ) 14 Low-pressure gauge
6 Leaving water temperature sensor 15 High-pressure gauge
7 Entering water temperature sensor 16 Fan
8 Filter 17 Drain pipe (Ø25)
9 Expansion valve 18 Serviceplate
