ESIE-0302 General Outline
Part 1 – System Outline 1–67
3
1
4
5

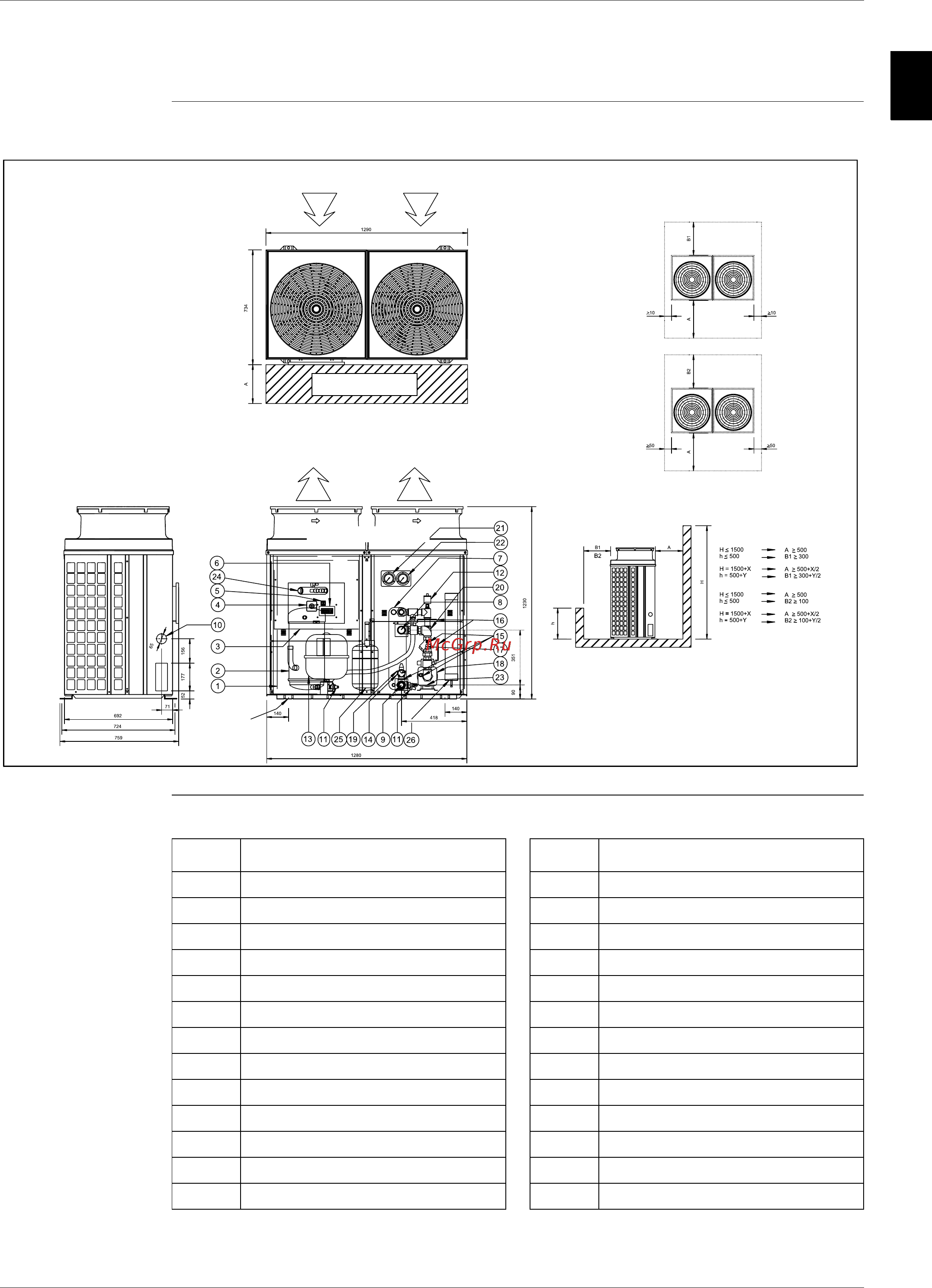

1.36 Outlook Drawing: EUWYP5-8KZW1
EUWYP5-8KZW1 The illustration below shows the outlook, the dimensions and the installation and service space of the
unit (mm).
Components The table below lists the components.
FREE SPACE B1/B2
FREE SPACE MIN 3m
CAUTION FOR FAN
FIXATION
4XØ15
SERVICE SPACE
No. Component No. Component
1 Air heat exchanger 14 Safety valve + pressure gauge
2 Compressor 15 Pressure port
3 Switch box 16 Ball valve
4 Main switch 17 Water filter
5 Pump Switch 18 Pump
6 Digital display controller 19 Regulation valve
7 Evaporator 20 Flow switch
8 Water IN connection: 1 1/4” BSP 21 High pressure gauge (optional)
9 Water OUT connection: 1 1/4” BSP 22 Low pressure gauge (optional)
10 Power supply intake 23 Pump drain
11 Drain 24 4-way valve
12 Air purge 25 Accumulator
13 Expansion vessel 26 Liquid receiver
